WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
520 mm
Taper of tailstock sleeve
MK 2
Travel of tailstock sleeve
70 mm
Weight approx.
50 kg
Machine dimension (W x D x H)
1100 x 450 x 500 mm
Motor power output S1 100%
0,75 kW (1,0 HP)
Motor power input S6 40%
1,1 kW (1,5 HP)

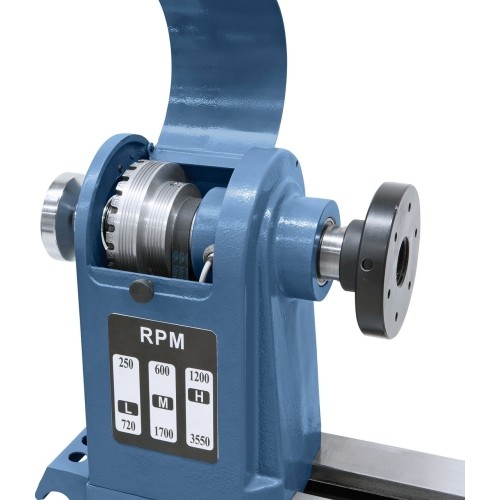

Spindle speeds
250 - 3550 rpm, stepless
Voltage
230 V
- over guideway
360 mm
- over support
260 mm
Spindle thread
M 33 x 3,5 mm
Speed steps
L 250 - 720 / M 600 - 1700 /

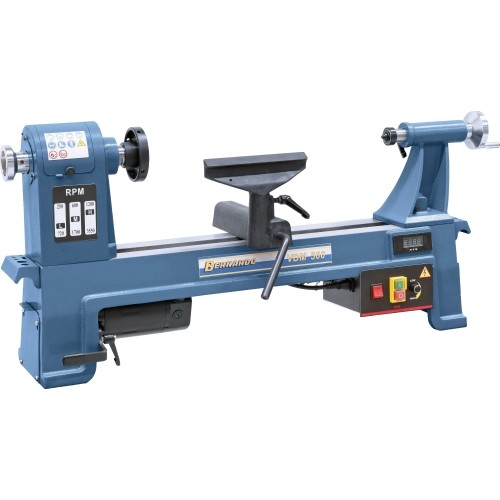

Medienos tekinimo staklės Bernardo VDM 500

1055952
€1,013.00
Tax included
Monthly payment from 27.52€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, january 6 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 50 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak (€40.99)
Weight: 50 kg.

Description

Properties

  • Quick clamping lever allows for fast clamping of tailstock to machine bed
  • Machine bed, tailstock and headstock made from rigid grey cast iron to eliminate vibrations
  • 24 rests assist when locking the workpiece
  • Complete with steel support, easy to adjust to various workpiece diameters
  • Large speed range (3 steps) from 250 - 3550 rpm

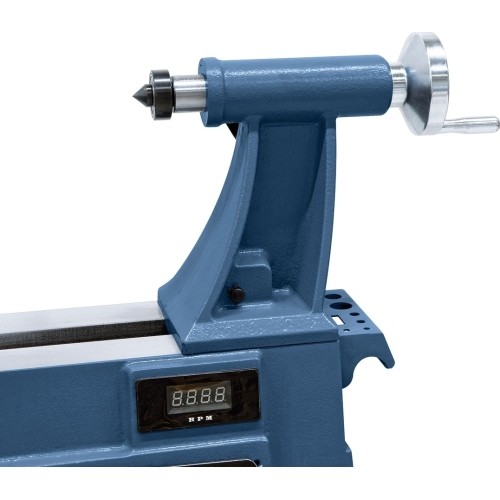

  • Tailstock spindle features hole to allow processing of long workpieces
  • Robust spindle, mounted with precision to ensure concentricity
  • Comes complete with right and left turning device

Standard accessories

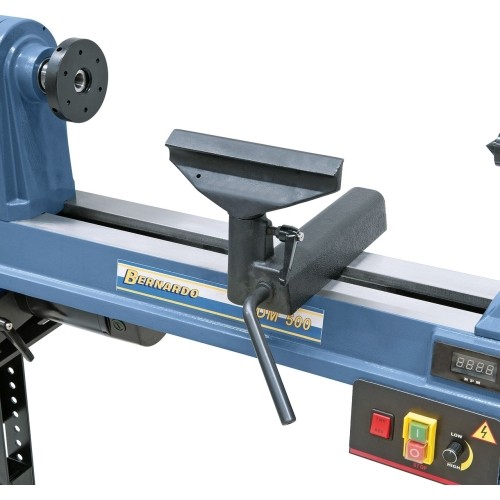

  • Tool rest 200 mm
  • Face plate 100 mm
  • Live center MT 2
  • Stepless speed adjustment

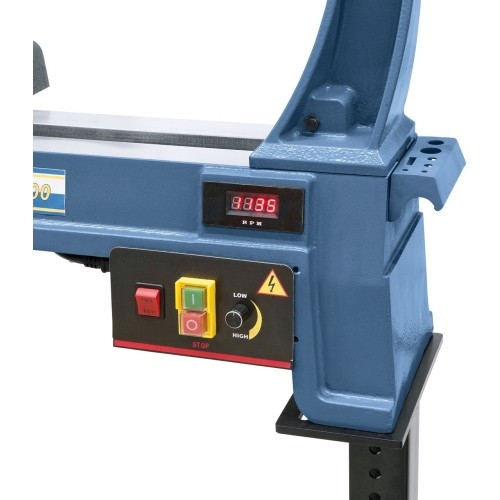

  • LED speed indication
  • 2x spore drive center 25 mm
  • Tools
