- Distance between centers
- 620 mm
- Taper of tailstock sleeve
- MK 2
- Travel of tailstock sleeve
- 105 mm
- Weight approx.
- 150 kg
- Machine dimension (W x D x H)
- 1480 x 520 x 1200 mm
- Spindle speed, stepless
- 0 – 1350 rpm
- Motor power output S1 100%
- 1,1 kW (1,5 HP)
- Motor power input S6 40%
- 1,5 kW (2,0 HP)
- Voltage
- 230 V
- - over guideway
- 400 mm
- - over support
- 310 mm
- Spindle thread
- M33 x 3,5 mm
- Distance between centers with extension *
- 1200 mm
- Speed steps
- Stepless, 2 steps

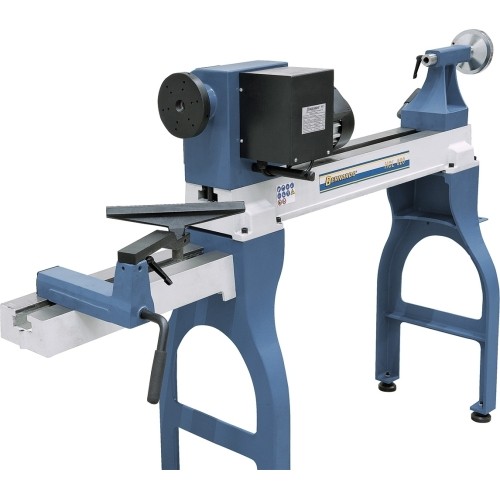

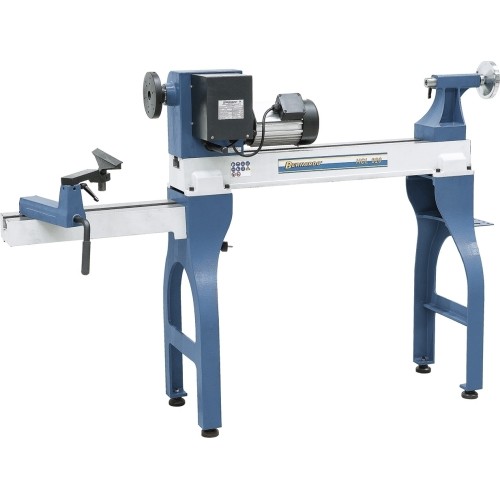

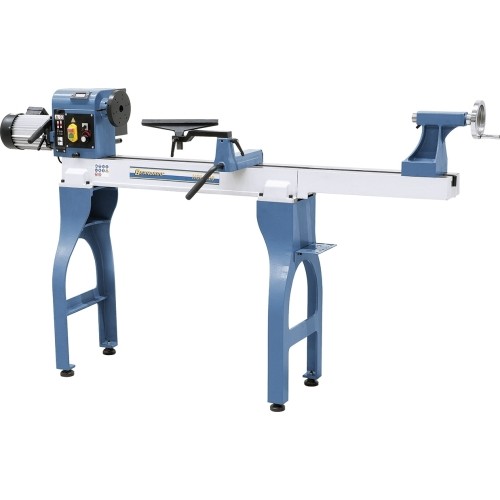

Medienos tekinimo staklės Bernardo HCL 620
1055955
Price
€2,706.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up monday, july 27 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 150 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 150 kg.
Description
Properties

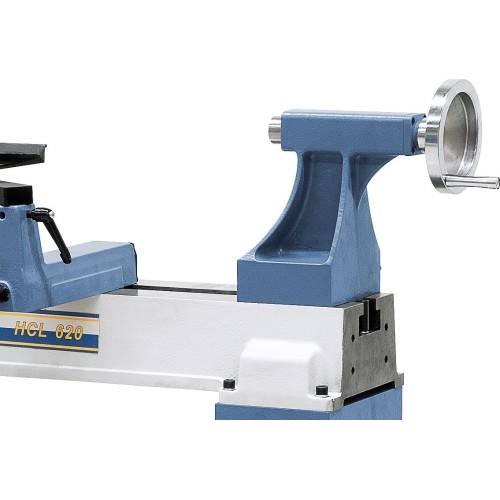

- Solid tailstock sleeve with MT 2 taper and bore to allow operating of long workpieces
- Delta-frequency inverter ensures variable speed adjustment with optimal torque
- Quick clamping lever ensures fast clamping of tailstock to machine bed

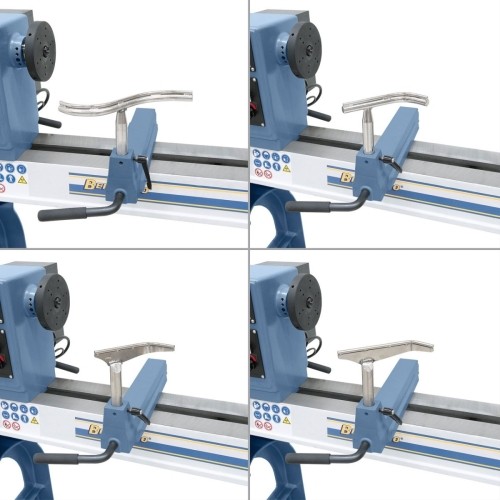

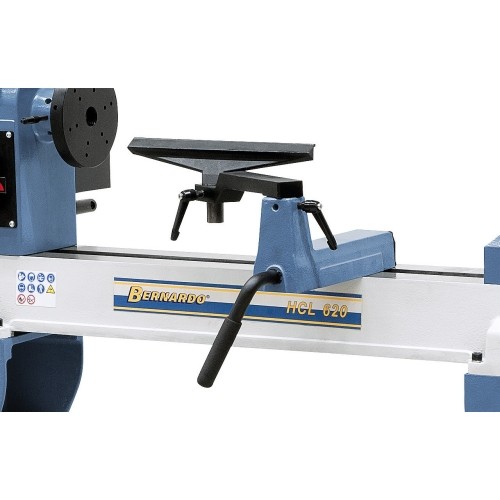

- Includes steel tool rest, easily adjustable for various workpiece diameters
- Heavy cast-iron construction eliminates vibrations

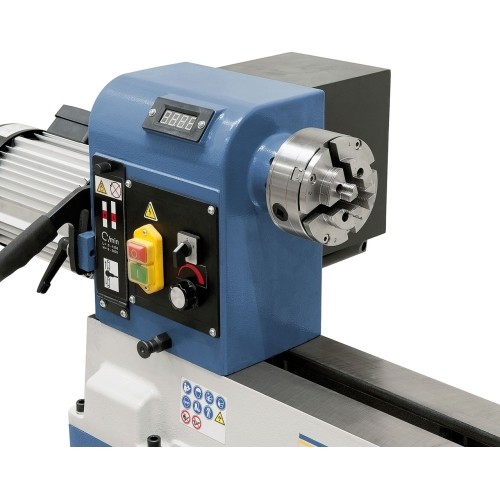

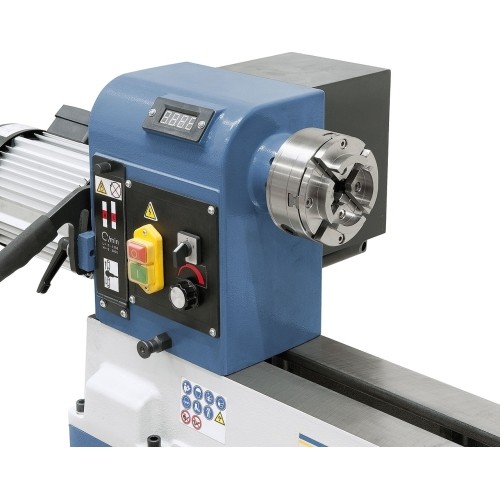

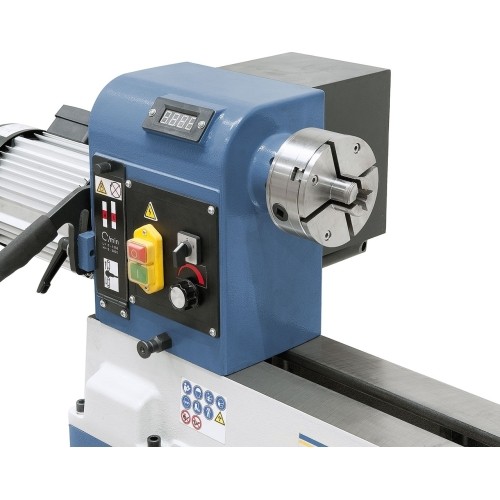

- Digital display allows for convenient adjustment of speed settings
- Comes complete with right and left turning device
- Precisely bedded spindle ensures high concentricity
Standard accessories
- Tool rest 300 mm

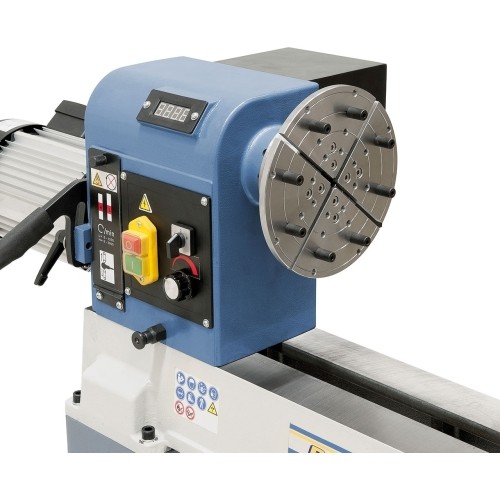

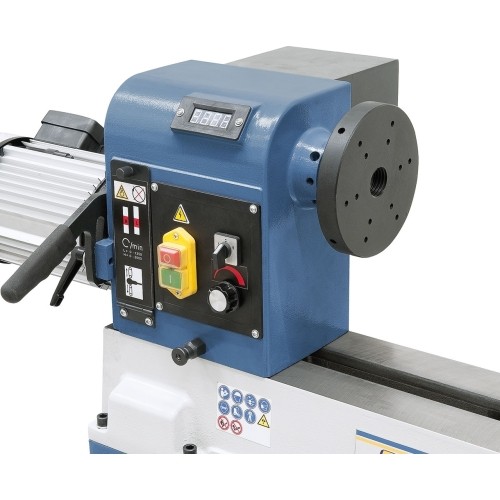

- Face plate 150 mm
- Live center
- Spore drive center
- Frequency inverter
- LED speed indication
- Tools
