Distance between centers
800 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
120 mm
Weight approx.
241 kg
Machine dimension (W x D x H)
1800 x 570 x 1280 mm
Spindle speed, stepless
0 – 1350 rpm
Motor power output S1 100%
2,2 kW (3,0 HP)
Motor power input S6 40%
3,0 kW (4,0 HP)
Voltage
230 V
- over guideway
508 mm
- over support
400 mm
Spindle thread
M 33 x 3,5 mm
Distance between centers with extension *
1270 mm
Speed steps
Stepless, 2 steps

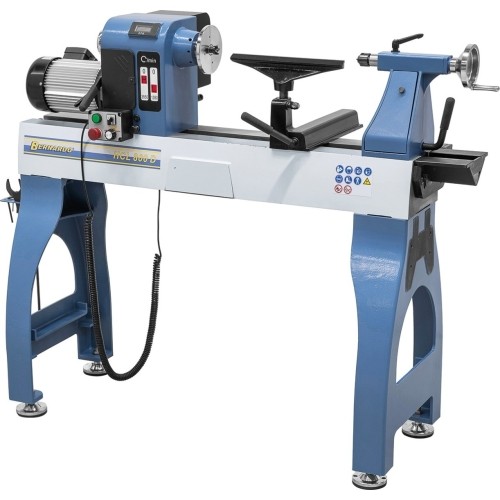

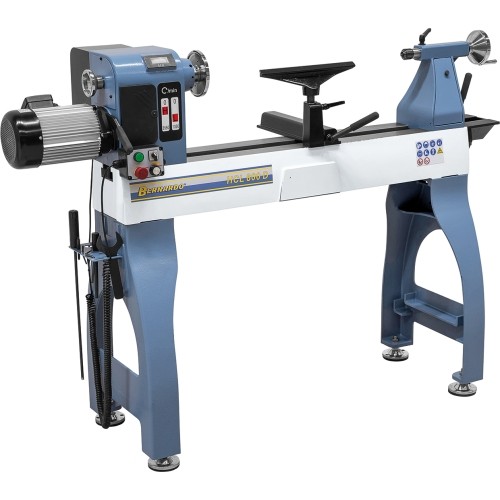

HCL 800 D / 230 V

1090885
€3,181.00
Tax included
Monthly payment from 82.29€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 241 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 241 kg.

Description

Properties

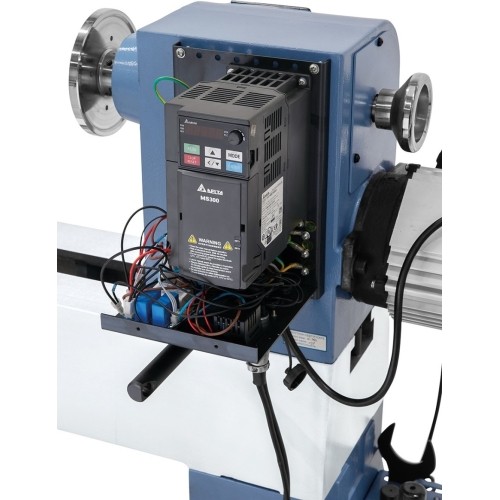

  • Delta-frequency inverter ensures variable speed adjustment with optimal torque
  • Large speed range (2 steps) from 0 – 3550 rpm

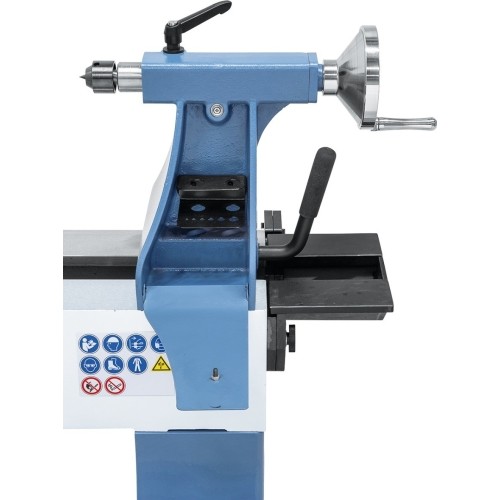

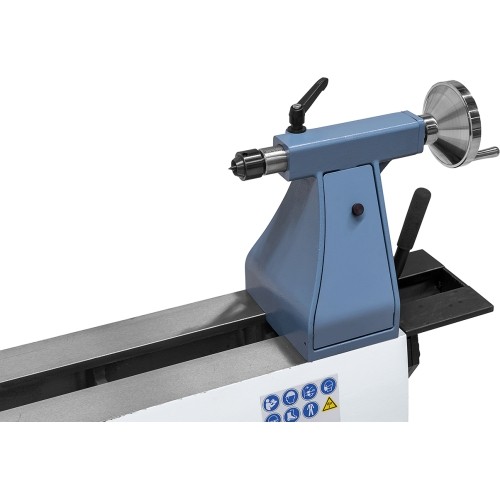

  • Tailstock spindle features hole to allow processing of long workpieces
  • Bed extension optionally available to extend distance between centers to 1270 mm
  • Comes complete with right and left turning device

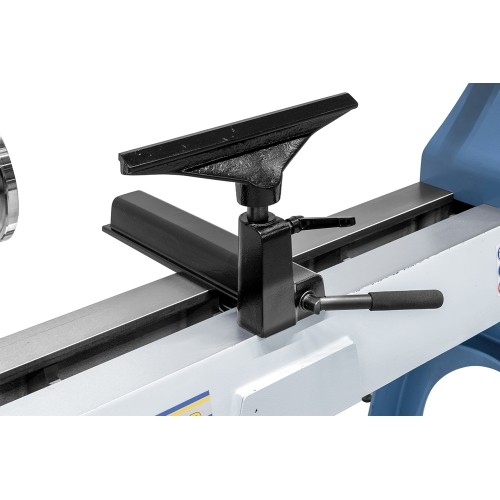

  • Includes steel tool rest, easily adjustable for various workpiece diameters

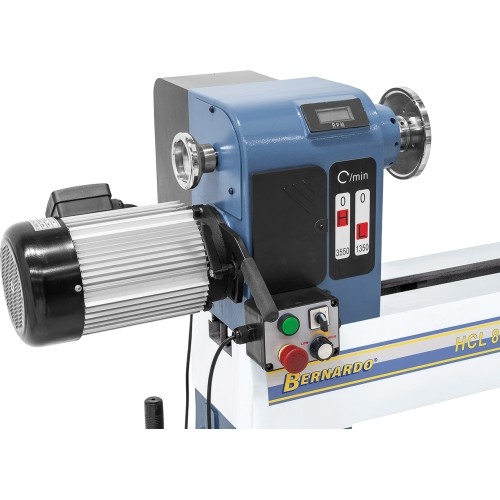

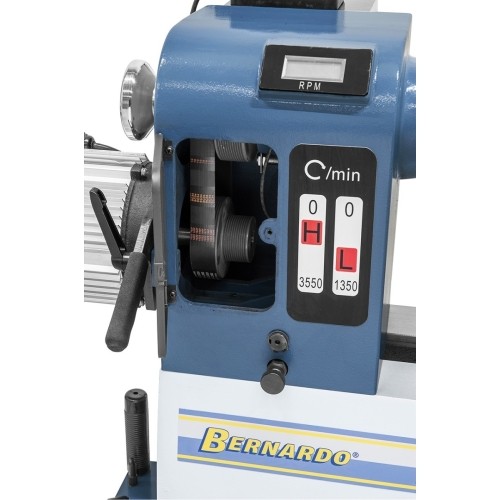

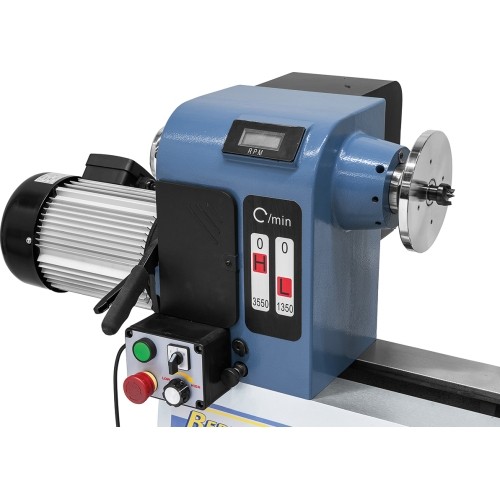

  • Digital display allows for convenient adjustment of speed settings
  • Heavy cast-iron construction eliminates vibrations

Standard accessories

  • Tool rest 350 mm

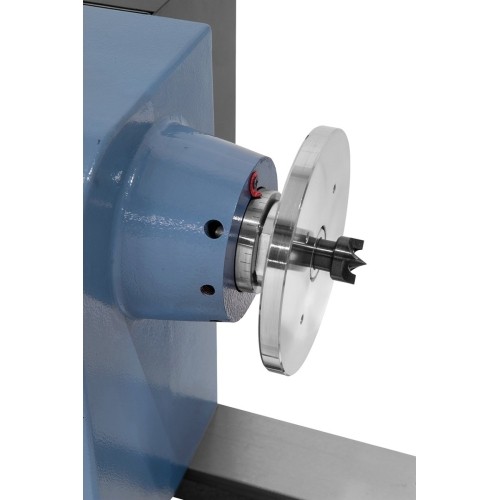

  • Face plate 145 mm
  • Live center
  • Spore drive center
  • Frequency inverter
  • LED speed indication

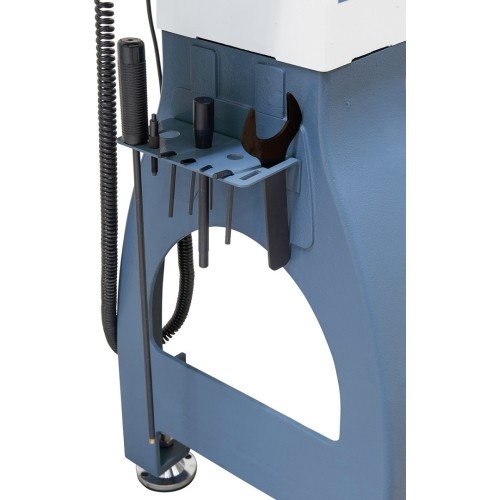

  • Tools
