Distance between centers
460 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
55 mm
Weight approx.
38 kg
Machine dimension (W x D x H)
950 x 300 x 410 mm
Motor power output S1 100%
0,75 kW (1,0 HP)
Motor power input S6 40%
1,1 kW (1,5 HP)
Spindle speeds
300 - 3700 rpm, stepless
- over guideway
310 mm
- over support
240 mm
Spindle thread
M 33 x 3,5 mm
Distance between centers with extension *
1020 mm
Speed steps
L: 300 - 1200 1/min, H: 1000 - 3700 1/min
Phase
230 V

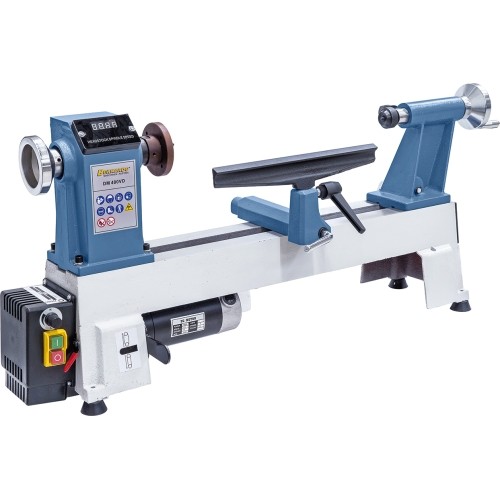

DM 480 VD

1090931
Price €640.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up thursday, july 23 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 38 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€10.00)
Weight: 38 kg.

Description

Properties

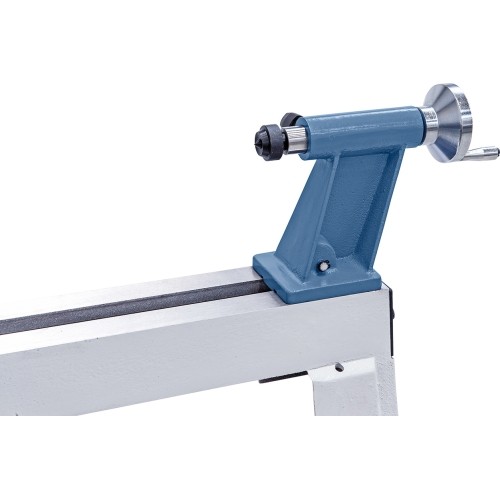

  • Quick clamping lever allows for fast clamping of tailstock to machine bed
  • Large speed range (2 steps) from 300 – 3700 rpm
  • Tailstock spindle features hole to allow processing of long workpieces
  • Machine bed, tailstock and headstock made from rigid grey cast iron to eliminate vibrations
  • Robust spindle, mounted with precision to ensure concentricity

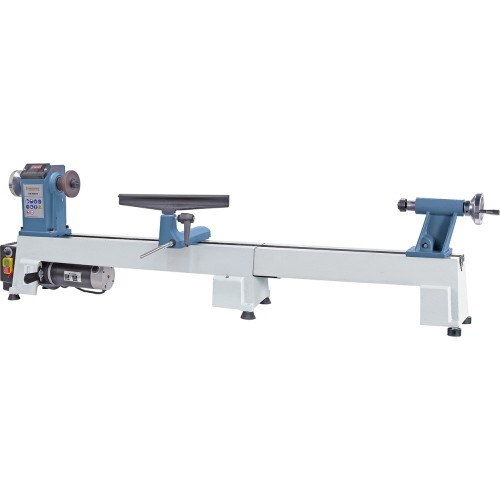

  • Bed extension optionally available to extend distance between centers to 1020 mm

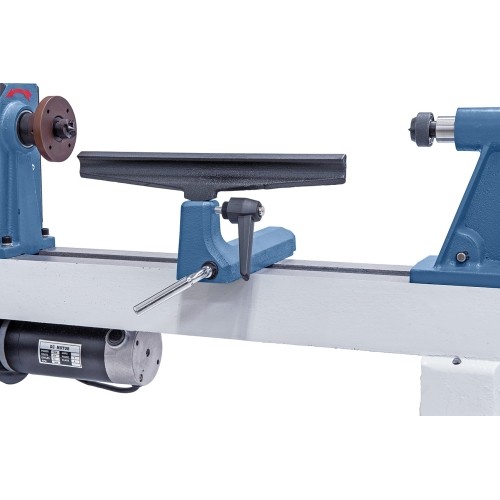

  • Quick clamping lever allows for easy locking of tool rest

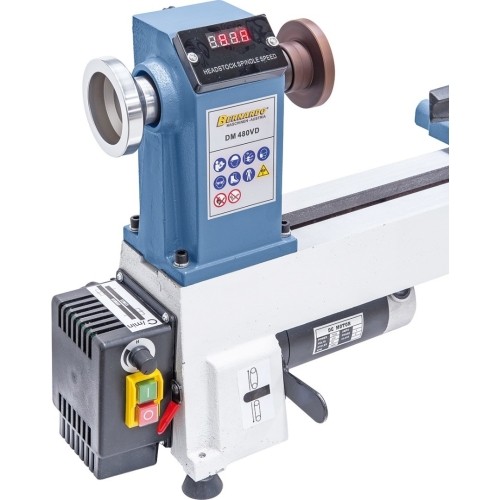

  • Digital display allows for convenient adjustment of speed settings

Standard accessories

  • 2 pcs. tool rest 150 / 300 mm
  • Face plate 80 mm
  • Spore drive center
  • Live center
  • Stepless speed adjustment
  • LED speed indication
  • Tools
