Distance between centers
420 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
50 mm
Weight approx.
34 kg
Machine dimension (W x D x H)
820 x 260 x 380 mm
Motor power output S1 100%
0,37 kW (0,5 HP)
Motor power input S6 40%
0,50 kW (0,68 HP)
Spindle speeds
L: 650 - 1450 rpm
- over guideway
260 mm
- over support
190 mm
Spindle thread
M 33 x 3,5 mm
Distance between centers with extension *
980 mm
Speed steps
3
Phase
230 V

DM 450 V

1091867
Price €621.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up thursday, july 23 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 34 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€10.00)
Weight: 34 kg.

Description

Properties

  • Ideal for craftsmen with high demands
  • Comes complete with stepless speed adjustment

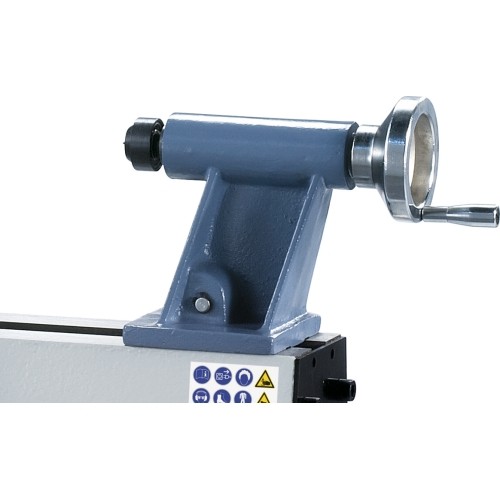

  • Robust tailstock with MT 2 taper and quick clamping lever
  • Solid construction eliminates vibrations

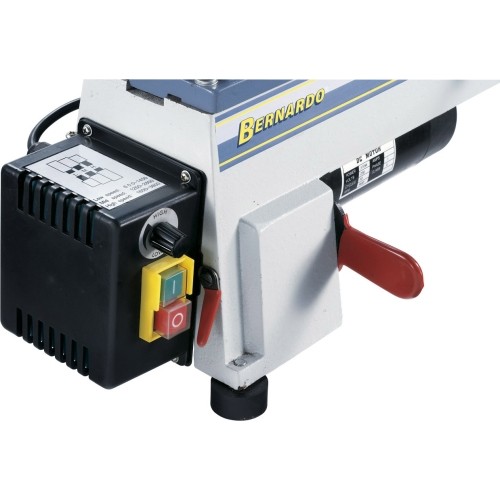

  • Clearly arranged switches and control elements on the front of machine
  • Tool rest 150 mm and face plate 75 mm are part of standard equipment
  • Extensive range of extra equipment to widen the choice of applications

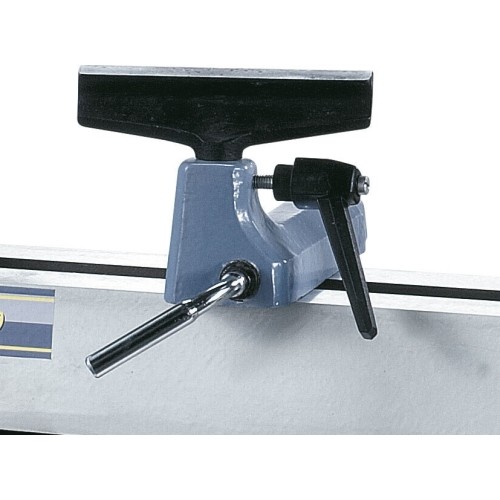

  • Quick clamping lever allows for easy locking of tool rest

Standard accessories

  • Tool rest 150 mm
  • Face plate 75 mm
  • Spore drive center
  • Live center
  • Stepless speed adjustment
  • Tools
