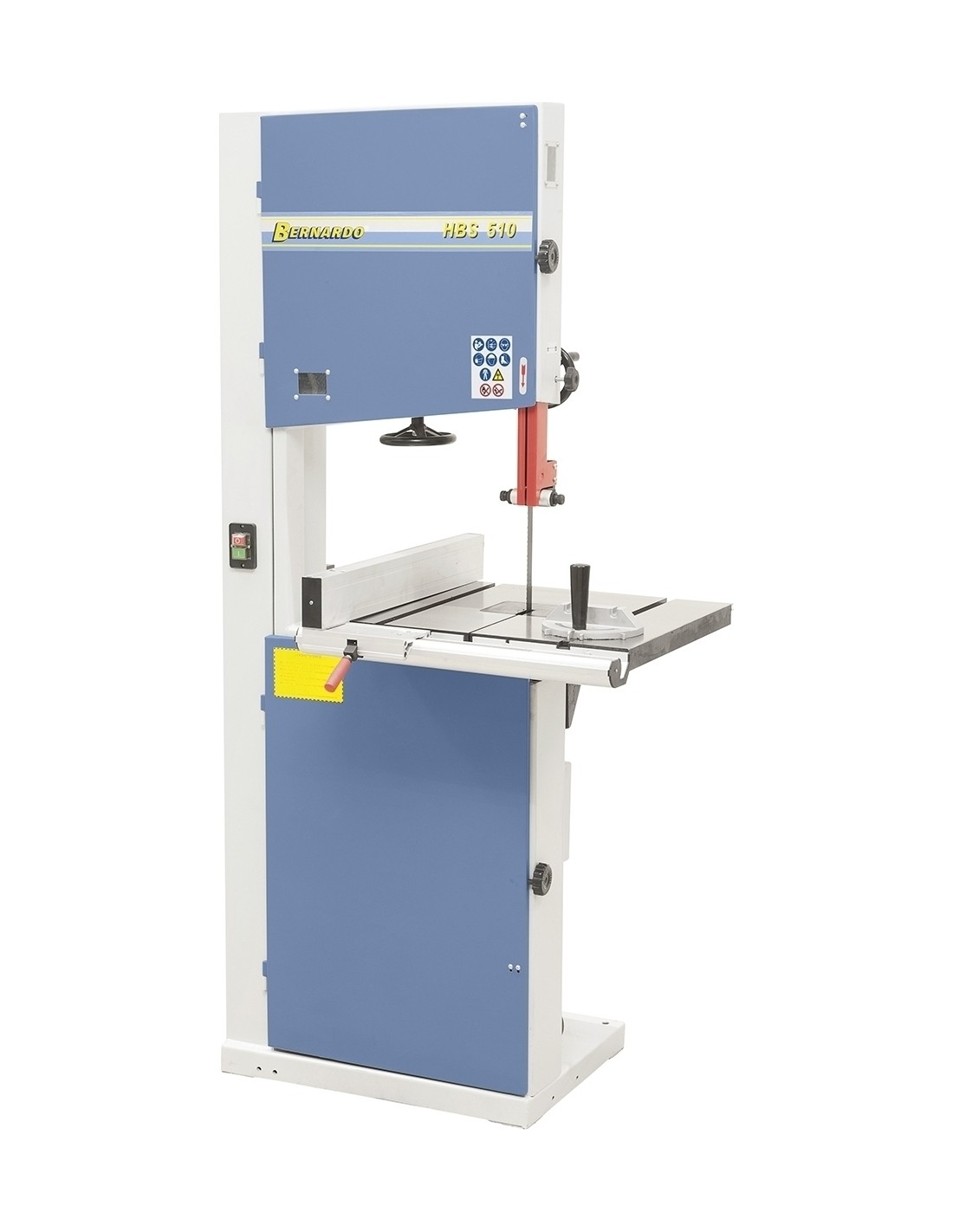

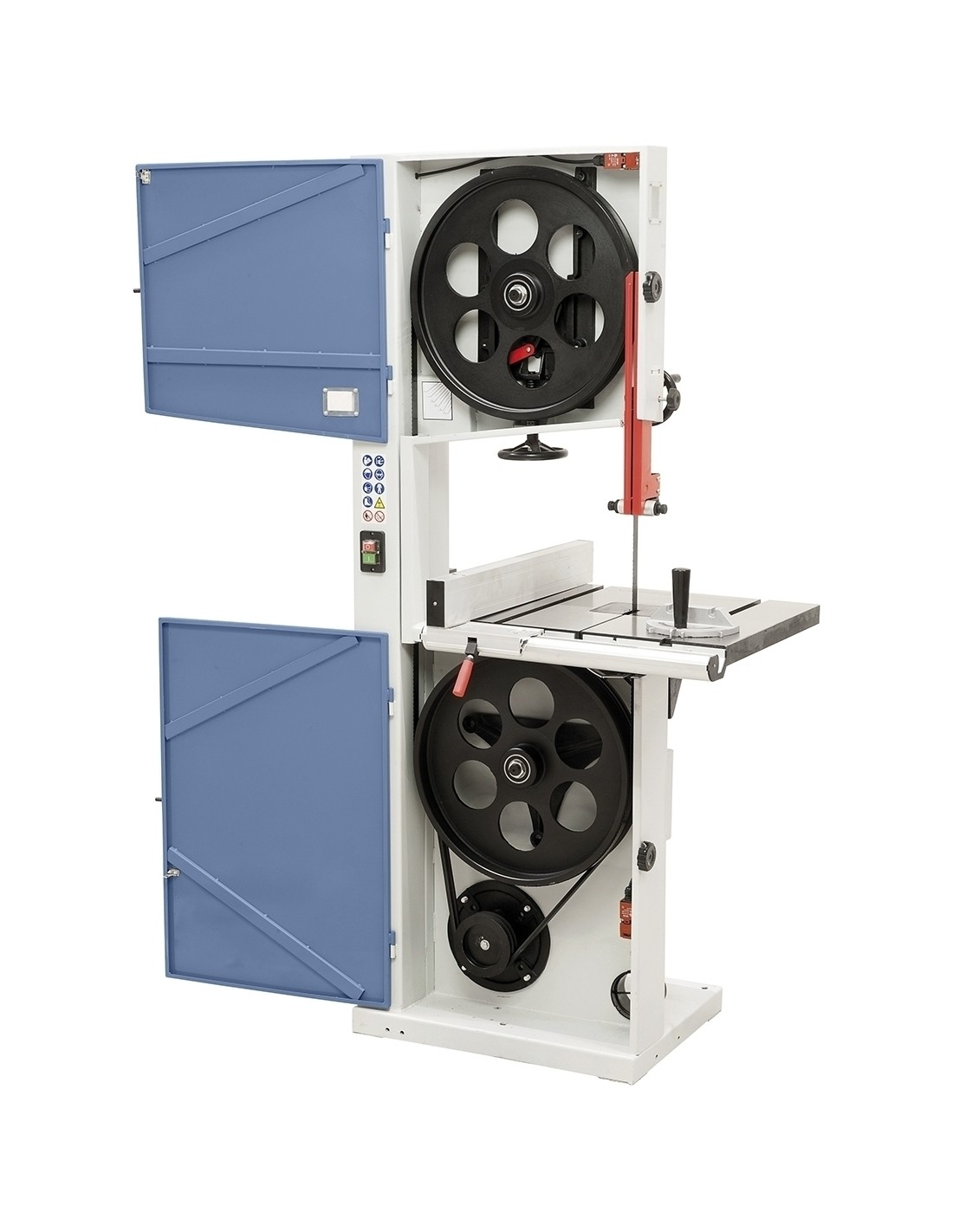

Juostinės pjovimo staklės Bernardo HBS 510 - 230 V
1055940
€2,625.00
Tax included
Monthly payment from 71.34€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, january 6 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 220 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak
(€40.99) Weight: 220 kg.
Description
Properties
- Big dimensioned working table with grounded surface and T-slot

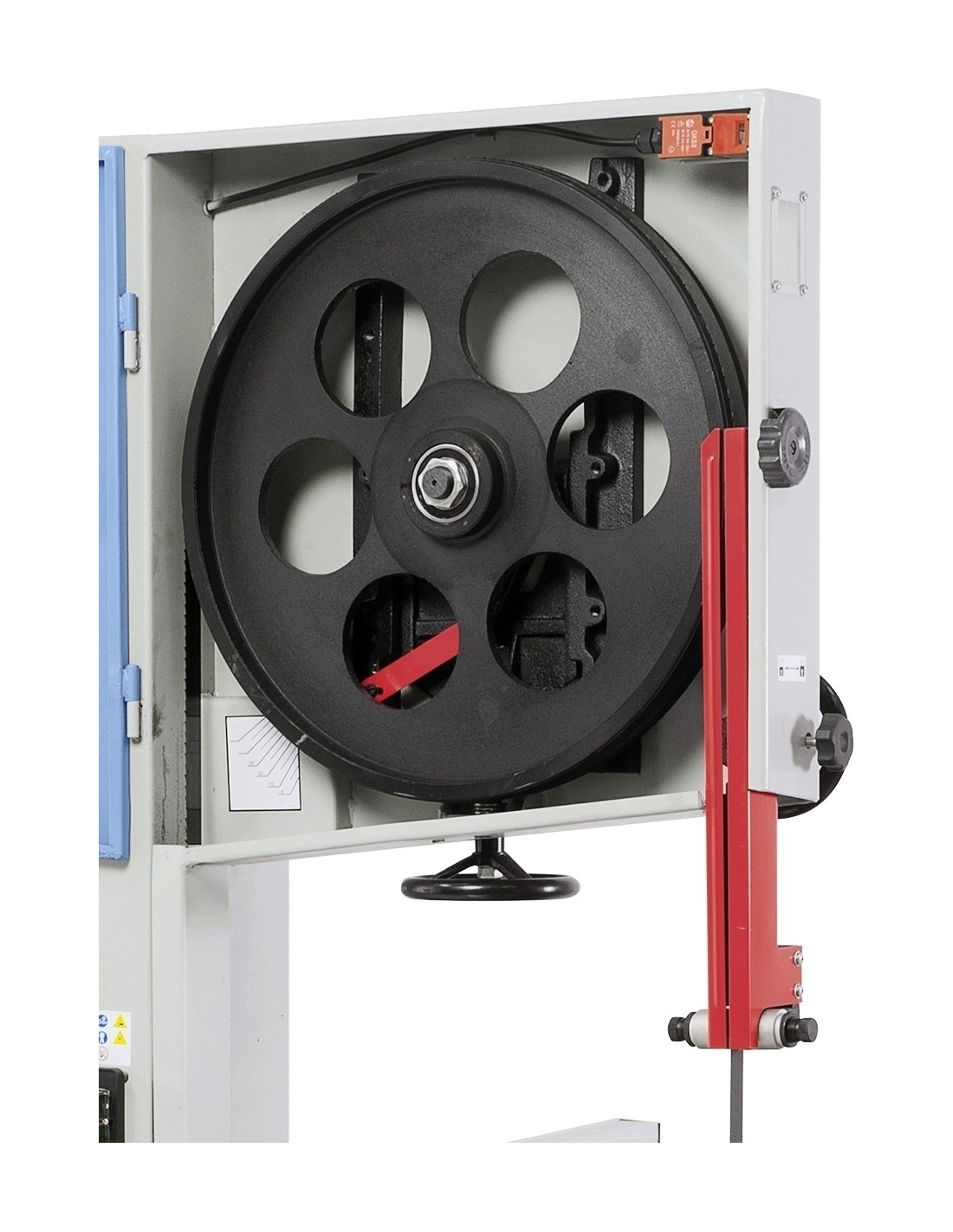

- Massive cast iron flywheels for smooth run

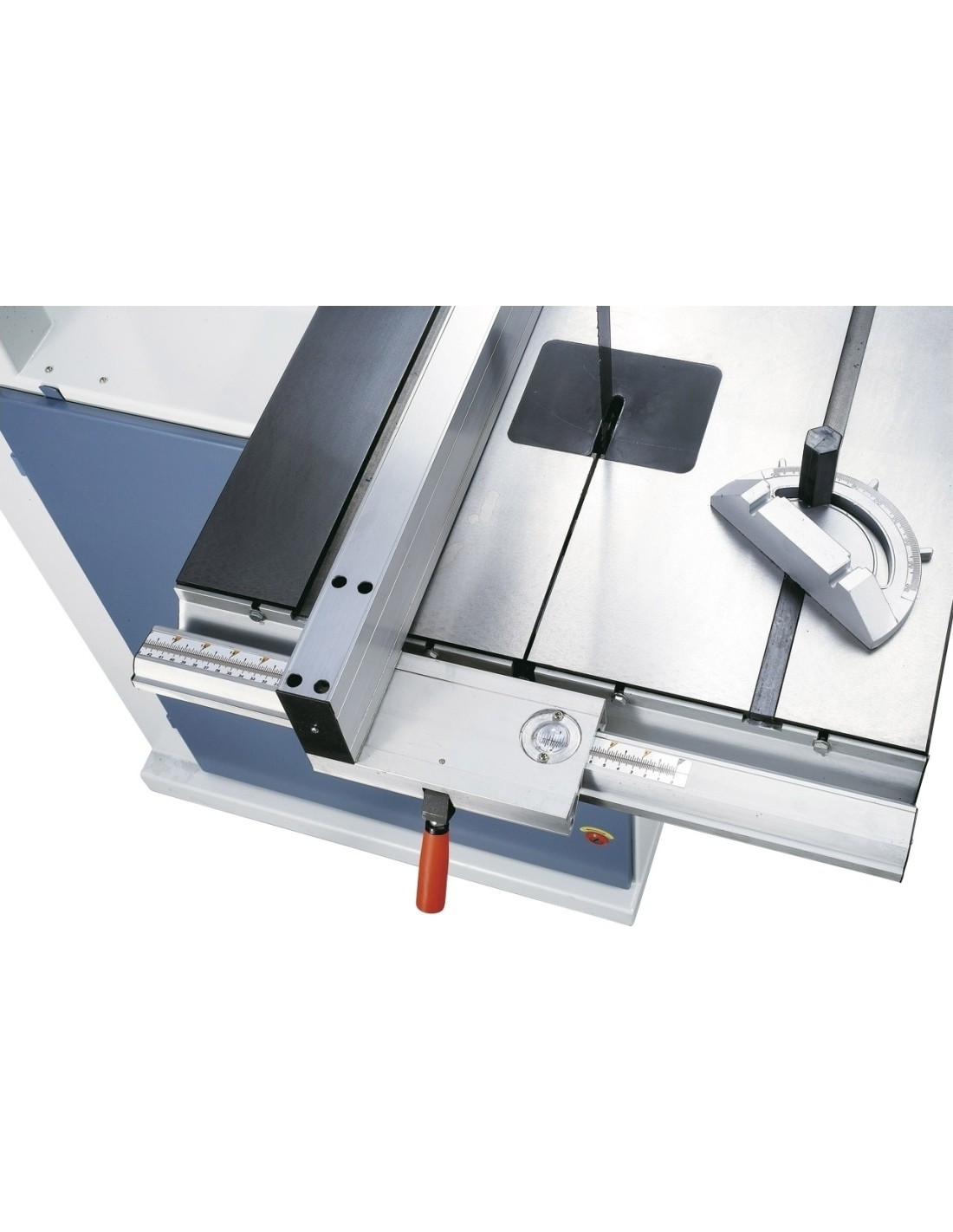

- Easy adjustable aluminium rip fence with quick clamping system and integrated loupe

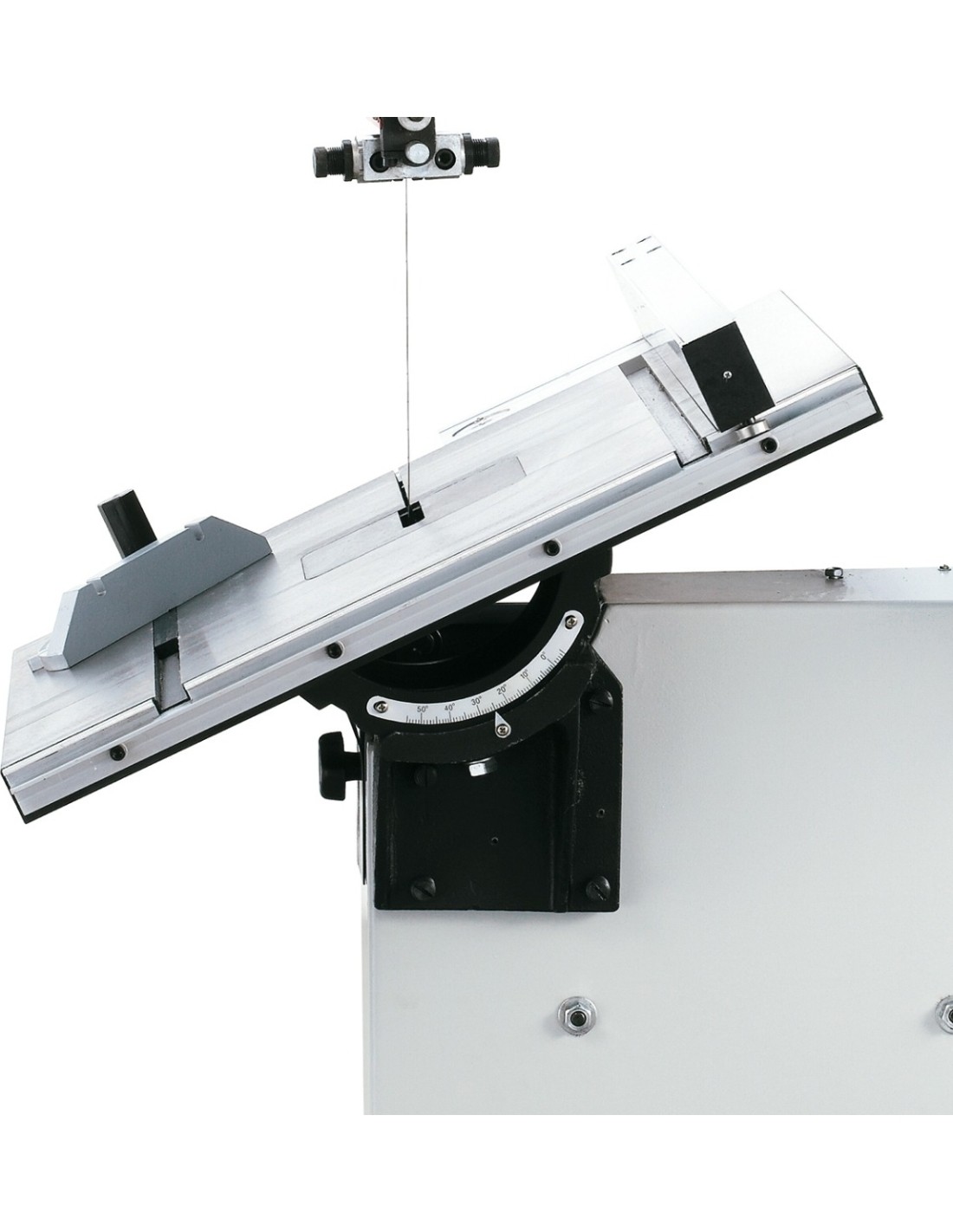

- Tiltable working table for mitre cuts from 0° to 45°

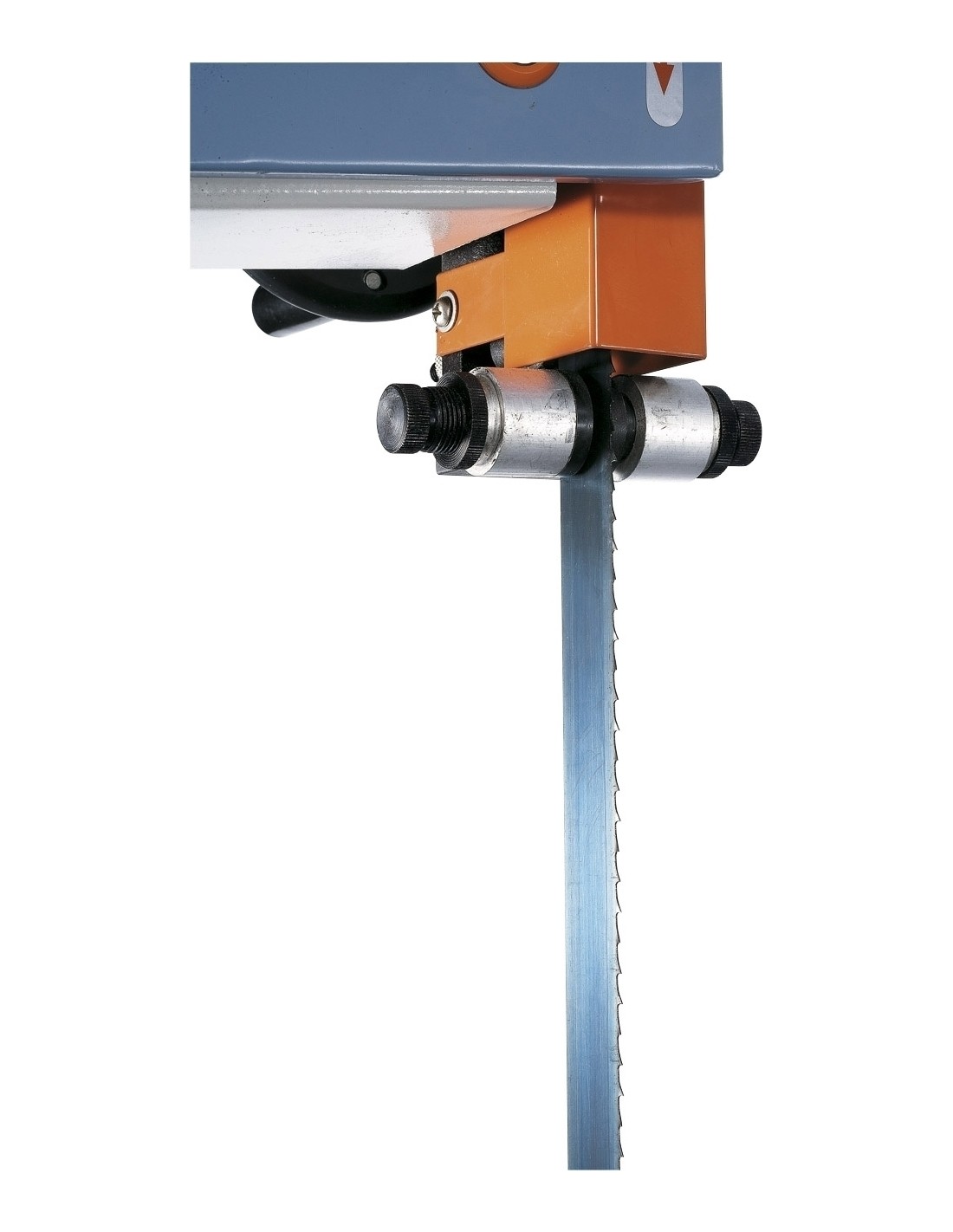

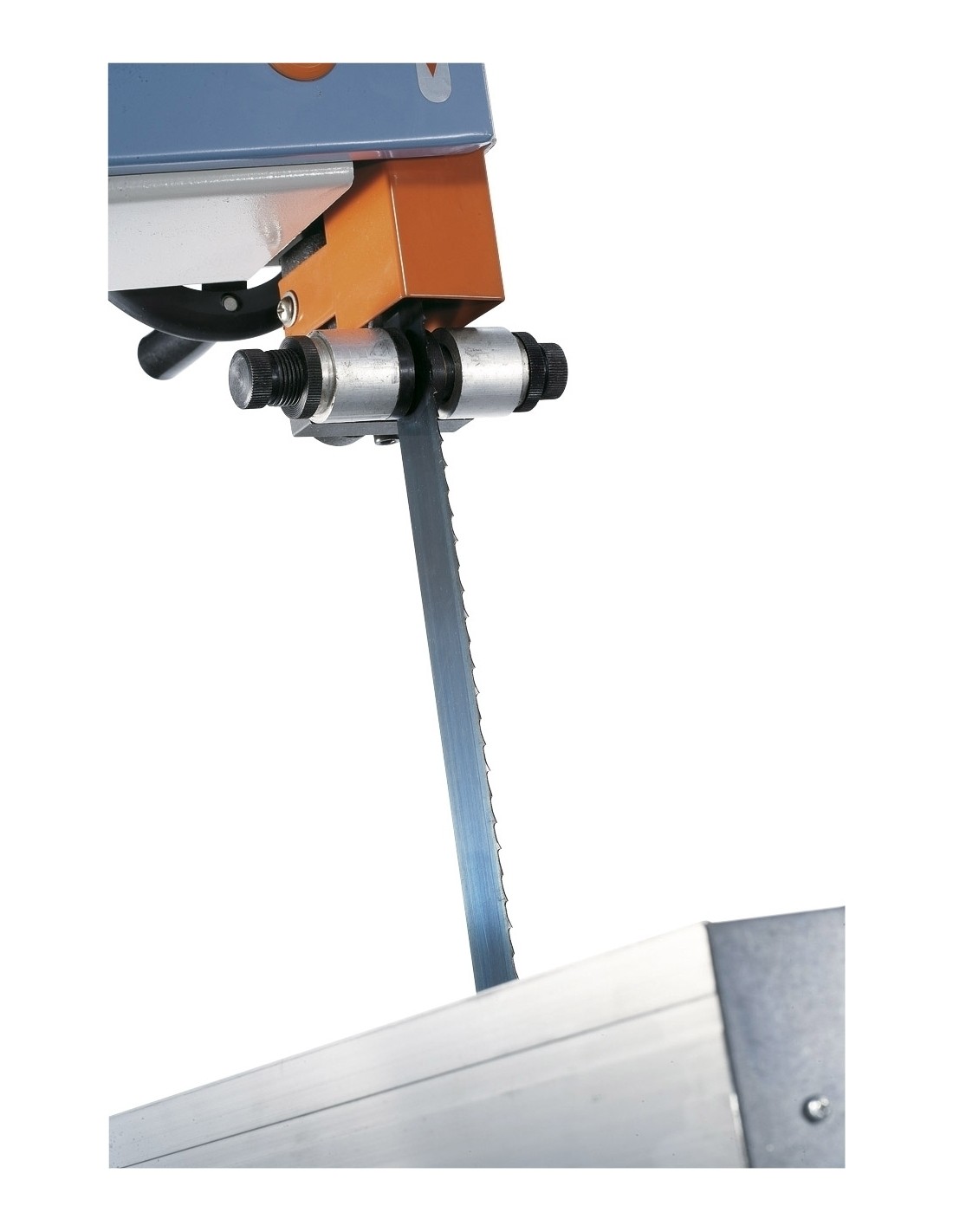

- Upper and lower precision roller guiding for precise cuts

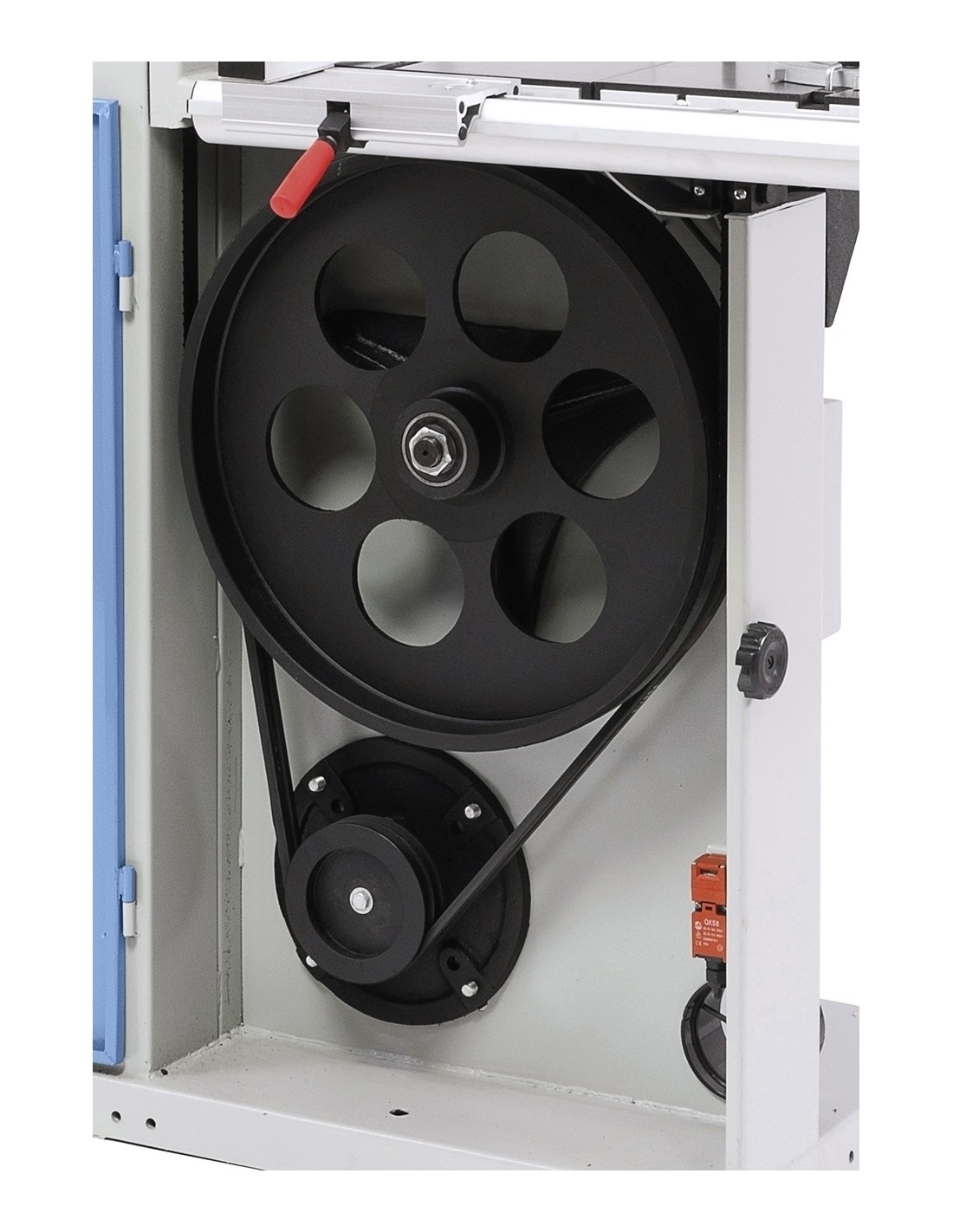

- High quality V-belt for optimal power transmission

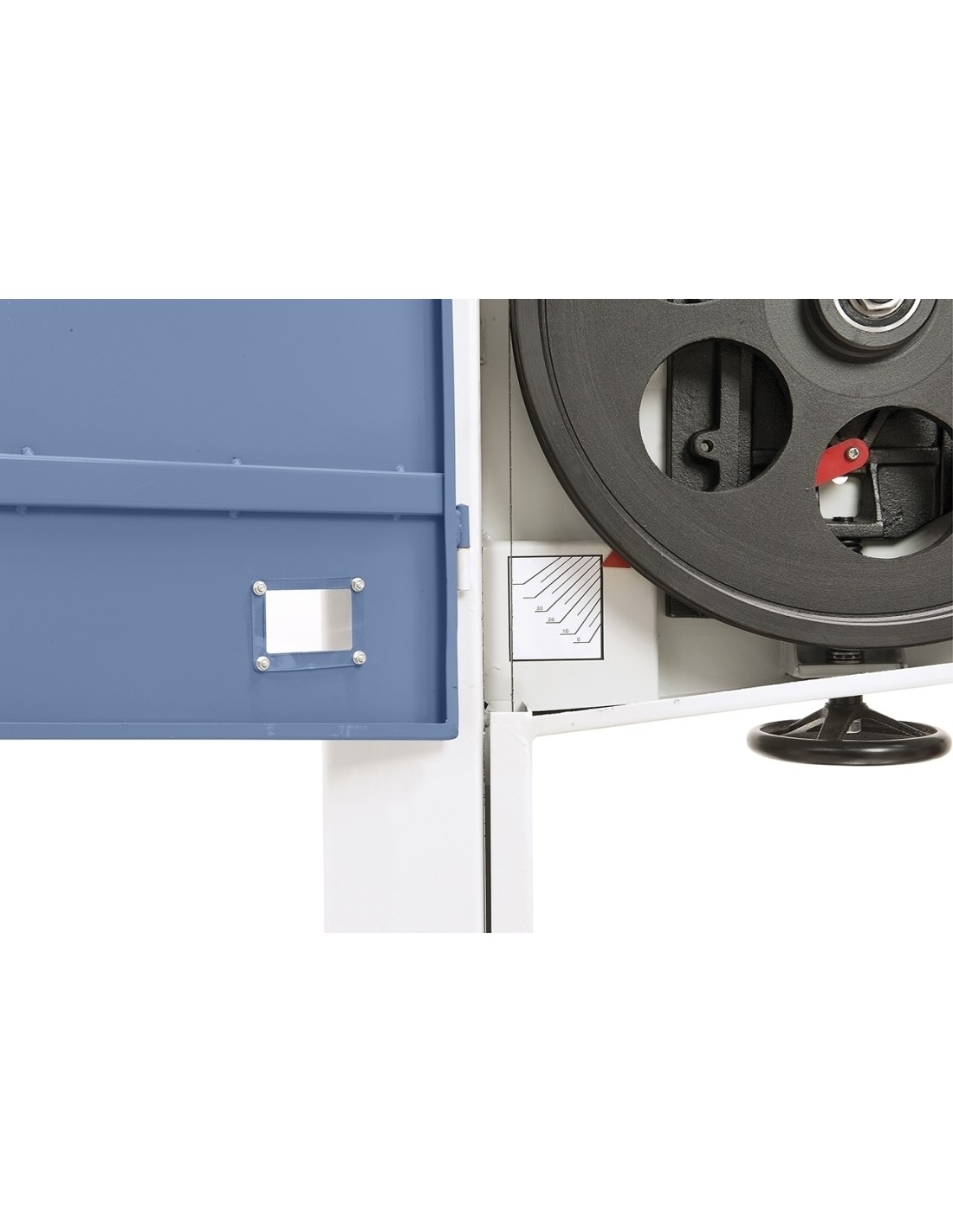

- Including limit switch for automatic shut-down at opening of the upper blade covers
Standard accessories
- Bandsaw blade
- Rip fence with loupe
- Mitre fence
- Cast iron flywheels
- 3-roller bandsaw blade
- Push stick
- Tools
Technical specifications
|
Cutting width |
480 mm |
|
Cutting height |
305 mm |
|
Blade dimension |
3500 x 25 x 0,62 - 3,5 TPI |
|
Blade width |
10 - 40 mm |
|
Cutting speed |
600 m/min |
|
Table size |
490 x 590 mm |
|
Table height |
940 mm |
|
Tilting table |
0° to 45° |
|
Dust extraction outlet |
100 mm |
|
Motor power output S1 100% |
2,2 kW (3,0 HP) |
|
Motor power input S6 40% |
3,0 kW (4,0 HP) |
|
Voltage |
230 V |
|
Machine dimension (B x T x H) |
930 x 880 x 1865 mm |
|
Weight approx. |
220 kg |
