Weight approx.
370 kg
Machine dimension (W x D x H)
1500 x 1000 x 2230 mm
Motor power output S1 100%
4,0 kW (5,5 HP)
Motor power input S6 40%
5,5 KW (7,5 HP)
Dust extraction outlet
2x 100 mm
Cutting width
700 mm
Cutting height
430 mm
Blade dimension
5020 x 38 x 0,65 - 2 TPI
Blade width
19 - 50 mm
Cutting speed
1560 m/min
Table size
900 x 700 mm
Table height
930 mm
Tilting table
-5° to +45°
Phase
Trifazis (400V)

HBS 700 N

1091874
Price €6,247.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up monday, july 27 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 370 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 370 kg.

Description

Properties

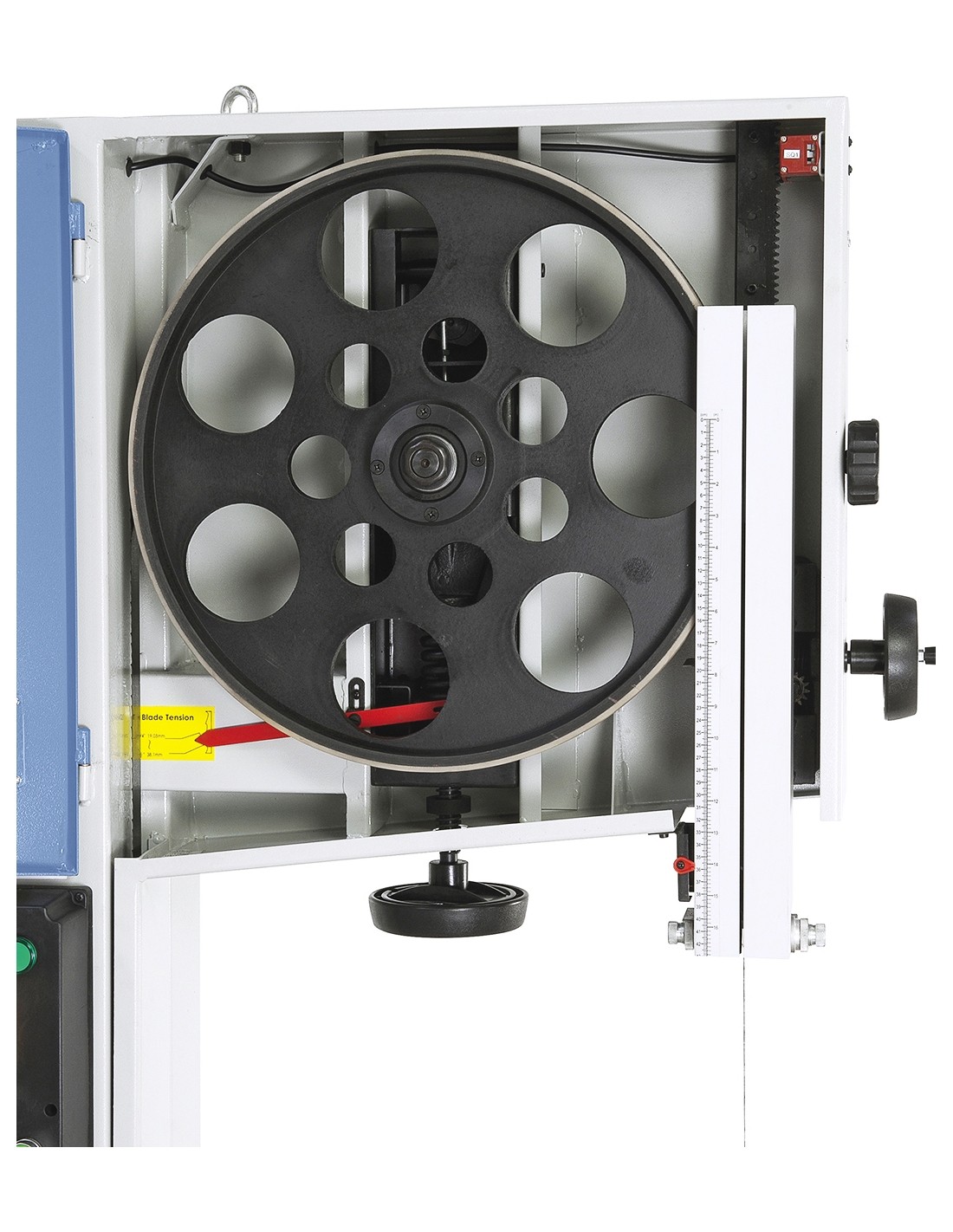

  • Dynamically balanced flywheels for smooth run
  • Cutting height adjustment via gear rack with mm-scale using a handwheel
  • Working table with grounded surface and T-slot for the mitre fence

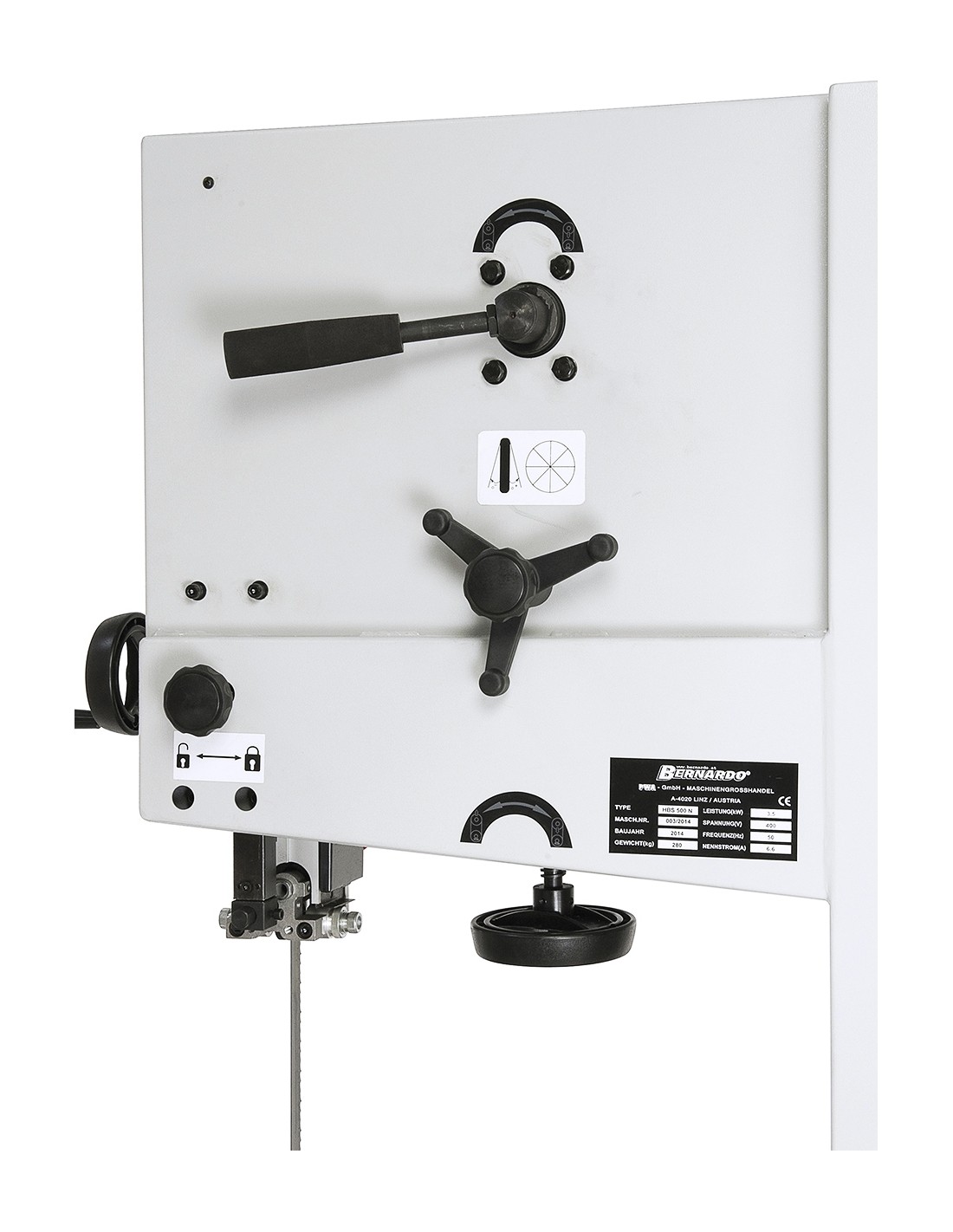

  • Easy bandsaw blade change using the quick clamping lever on the backside.

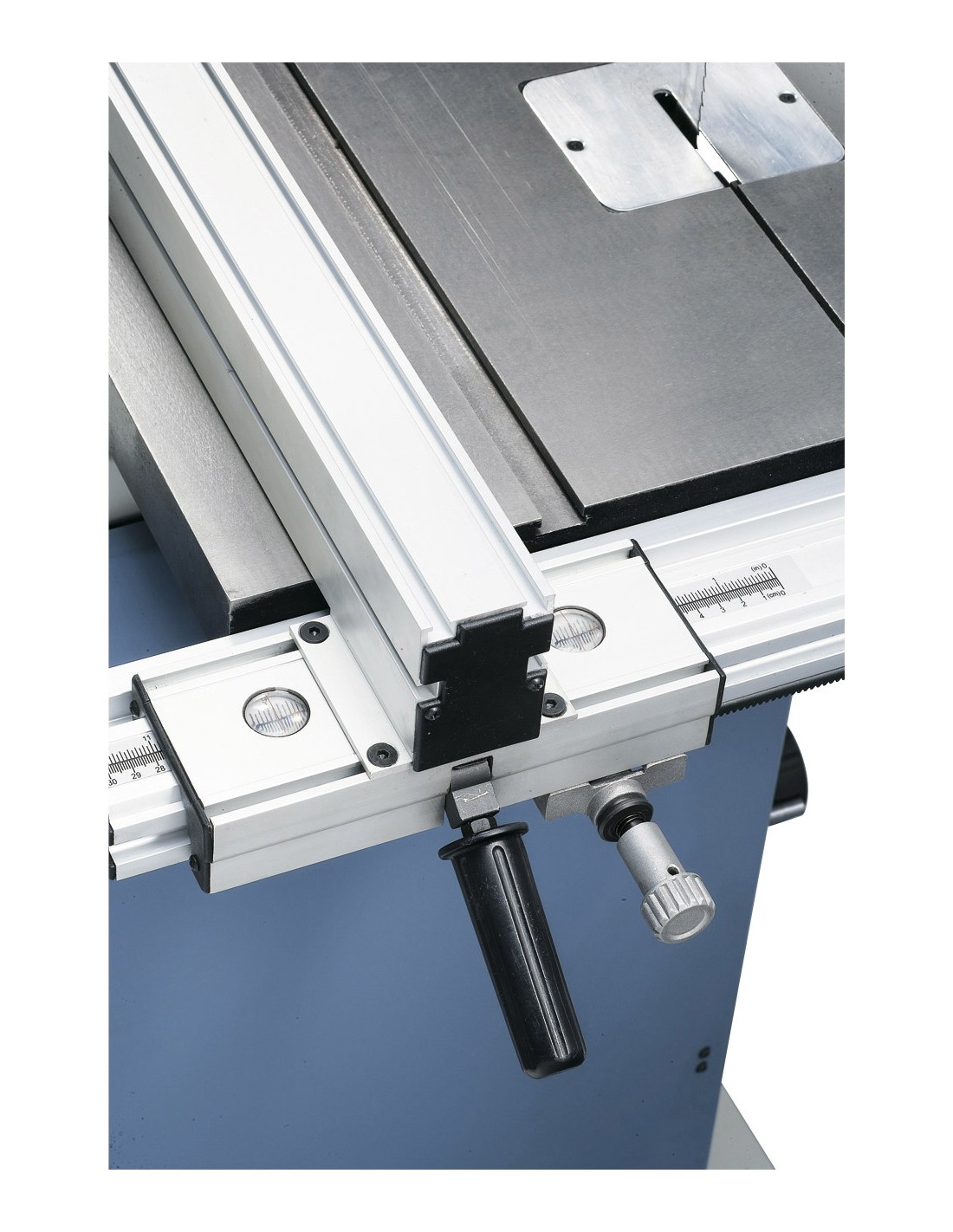

  • Precise guided aluminium rip fence, removable on each position
  • Inspection window on the front for checking the run of the bandsaw blade

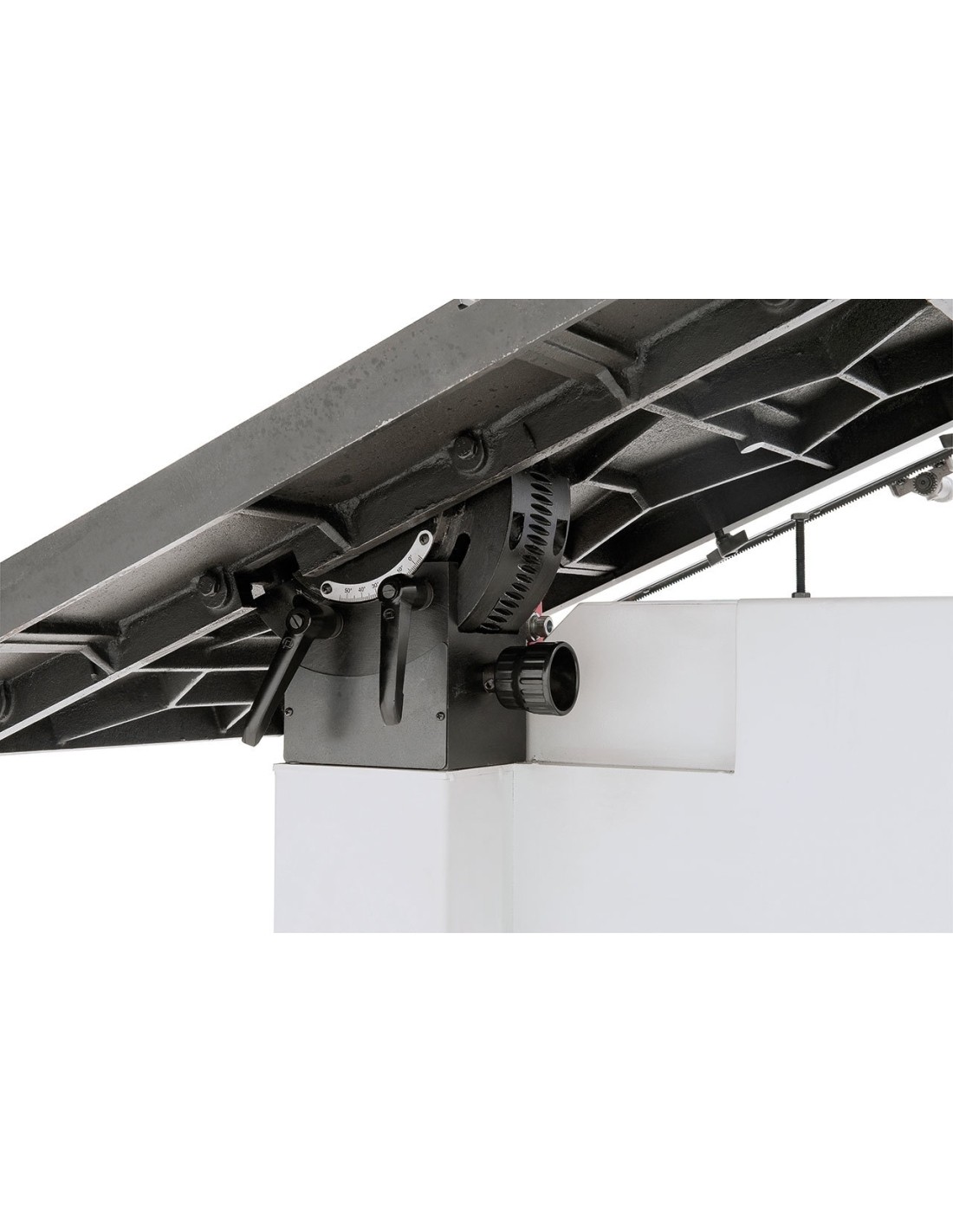

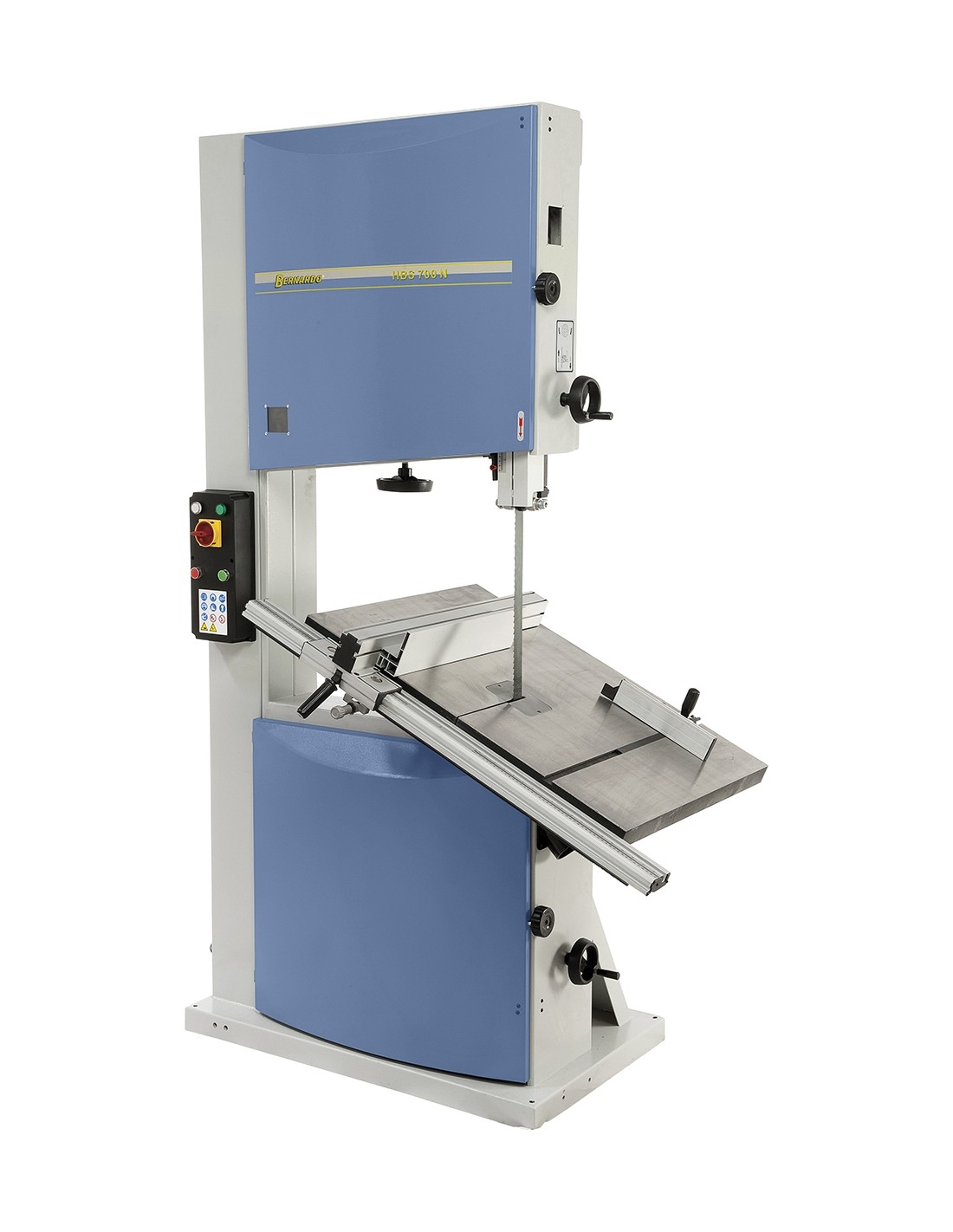

  • Generously dimensioned cast iron table, tiltable from -5° to +45°
  • High-power drive motor allow handling of bigger workpieces
  • Professional wooden bandsaw – heavy self-weight for maximum smoothness

Standard accessories

  • Bandsaw blade
  • Rip fence with loupe

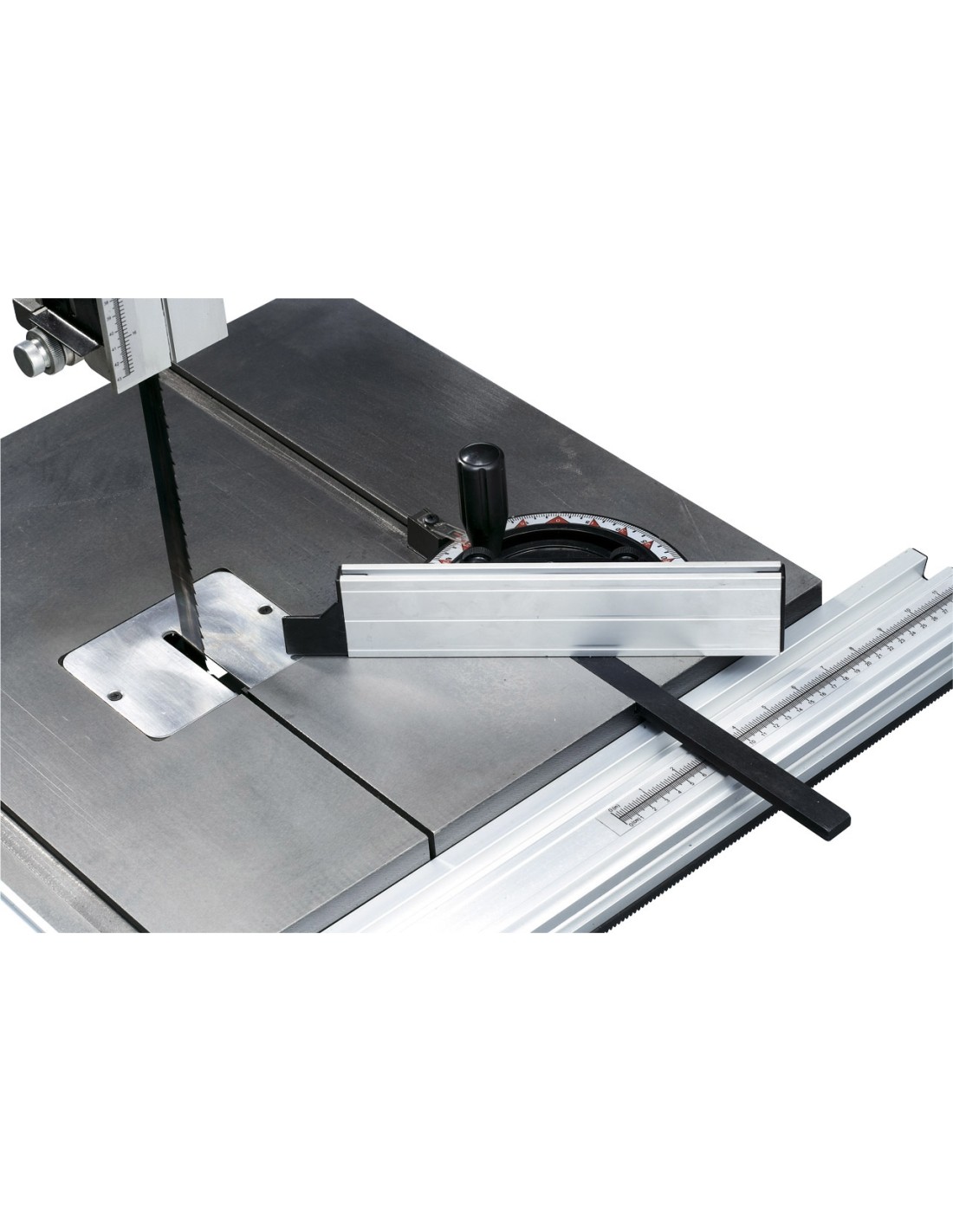

  • Mitre fence

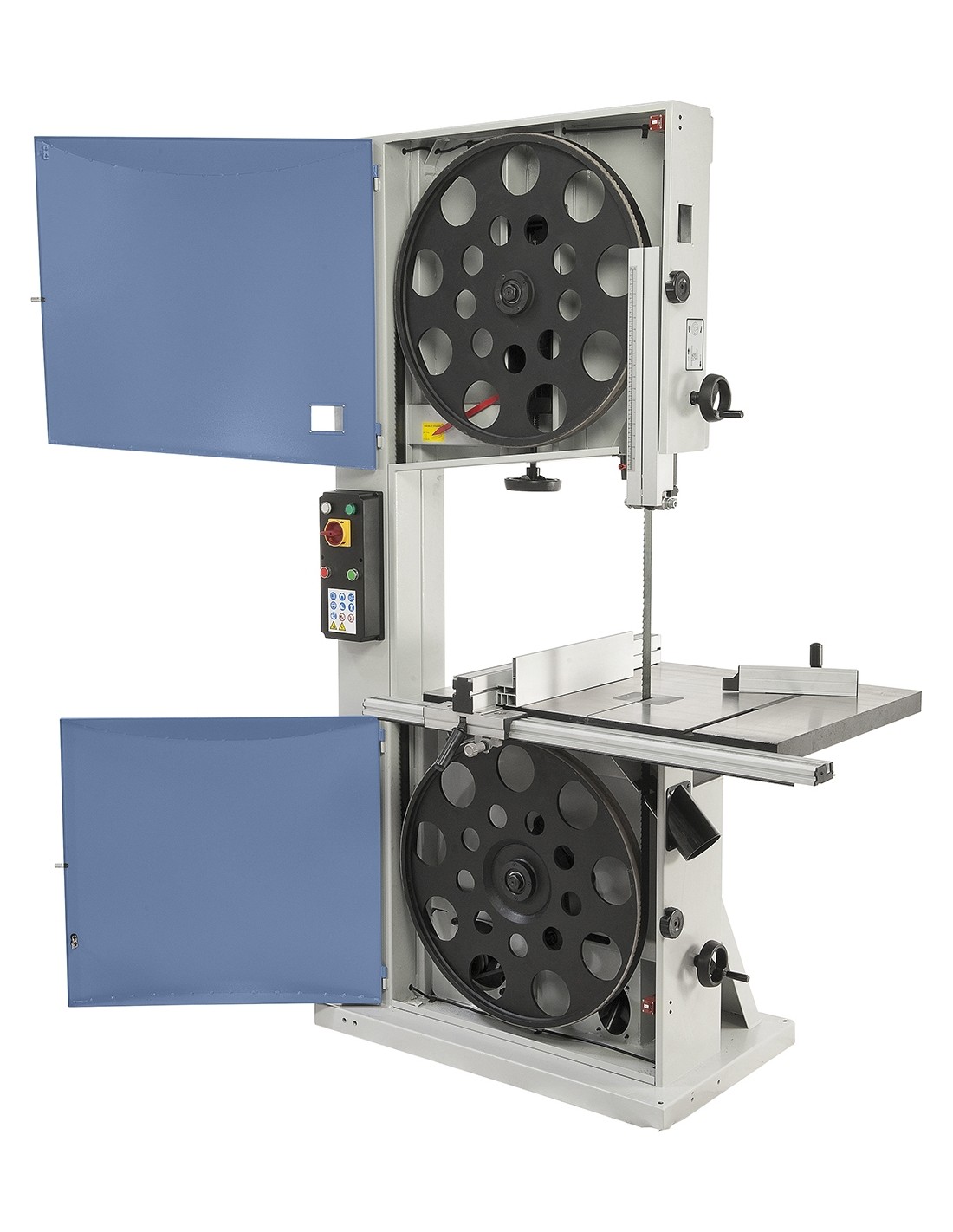

  • Cast iron flywheels
  • Precision-3-roller bandsaw blade guiding

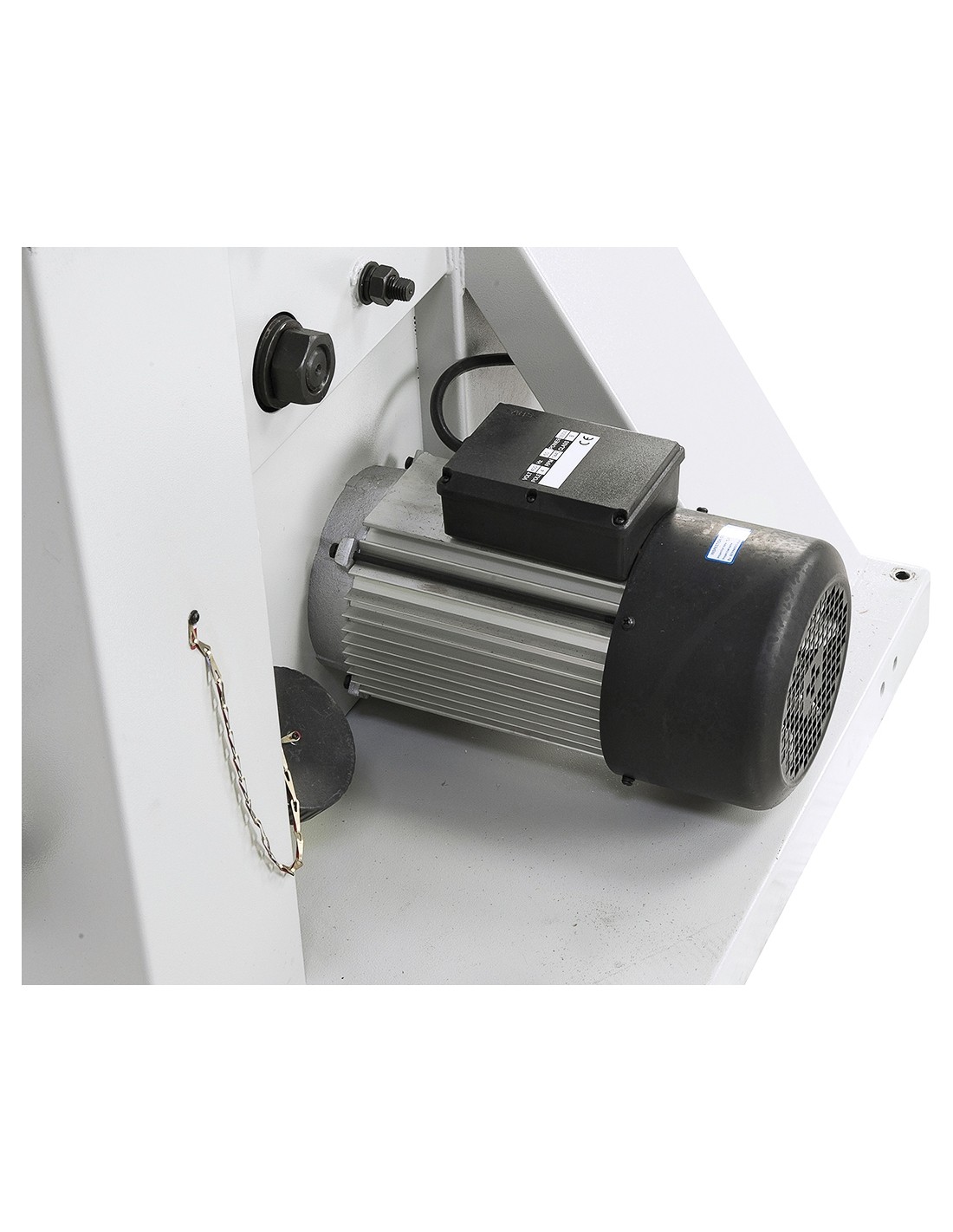

  • Motor incl.  brake
  • Push stick
  • Tools
