Weight approx.
311 kg
Machine dimension (W x D x H)
1300 x 900 x 2220 mm
Motor power output S1 100%
4,0 kW (5,0 HP)
Motor power input S6 40%
5,5 KW (7,5 HP)
Dust extraction outlet
2x 100 mm
Cutting width
700 mm
Cutting height
430 mm
Blade dimension
5020 x 38 x 0,65 - 2 TPI
Blade width
19 - 40 mm
Cutting speed
1080 m/min
Table size
640 x 500 mm
Table height
950 mm
Tilting table
-5° to +45°
Table extension
150 x 500 mm
Phase
Trifazis (400V)

HBS 700 E

1322222
Price €4,384.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up monday, july 27 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 311 kg.
We will deliver the product to you via: 6-12 w.d. Venipak (€40.99)
Weight: 311 kg.

Description

Properties

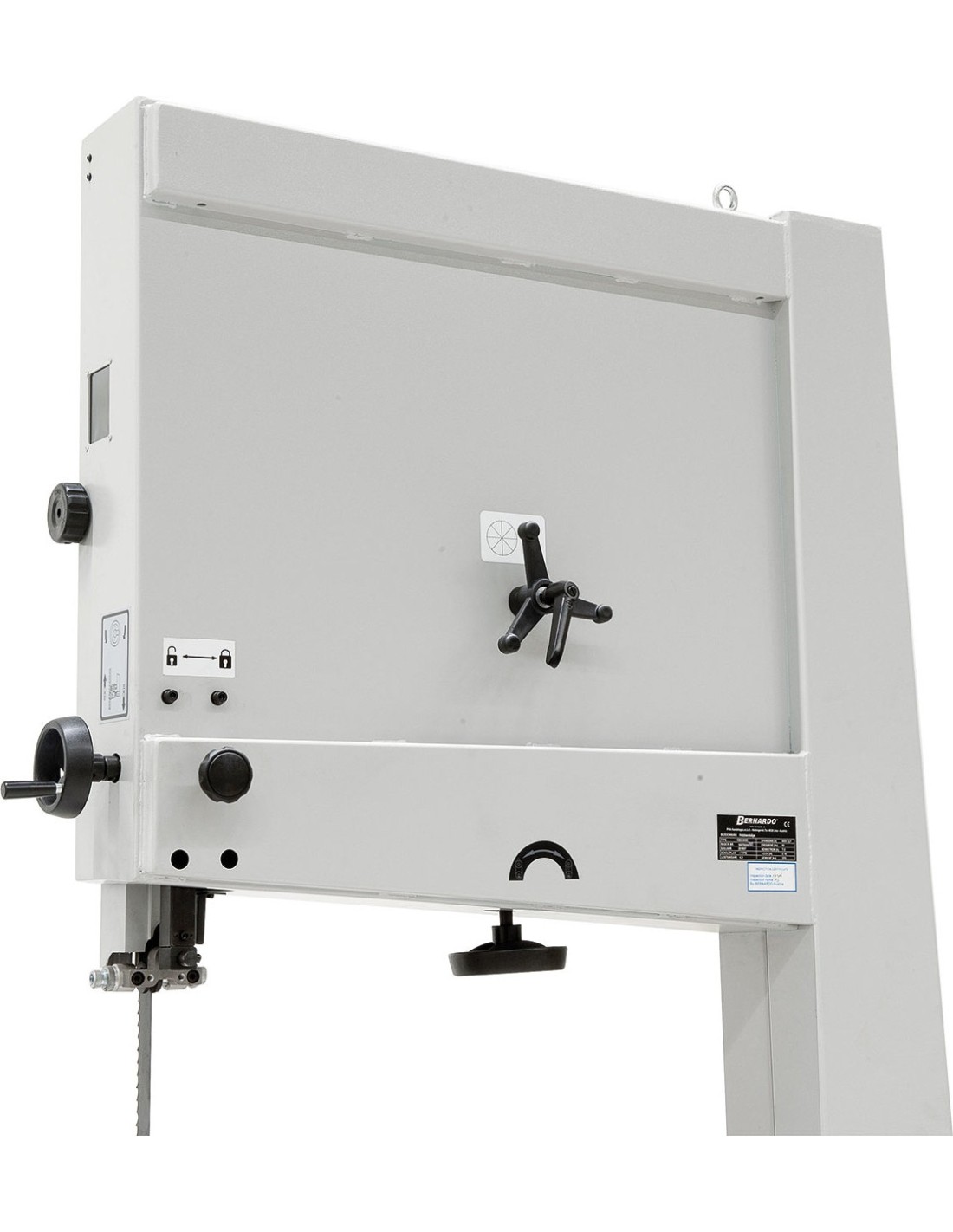

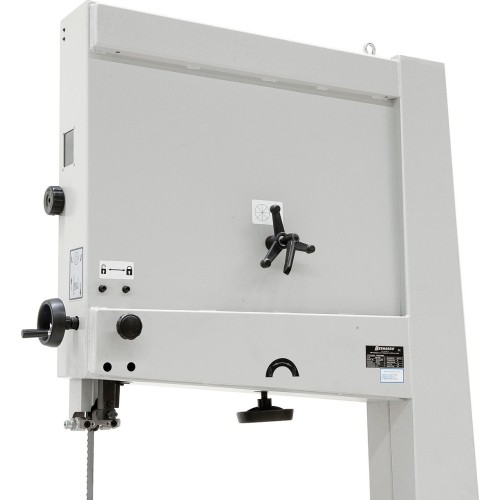

  • Cutting height adjustment via gear rack with mm-scale using a handwheel

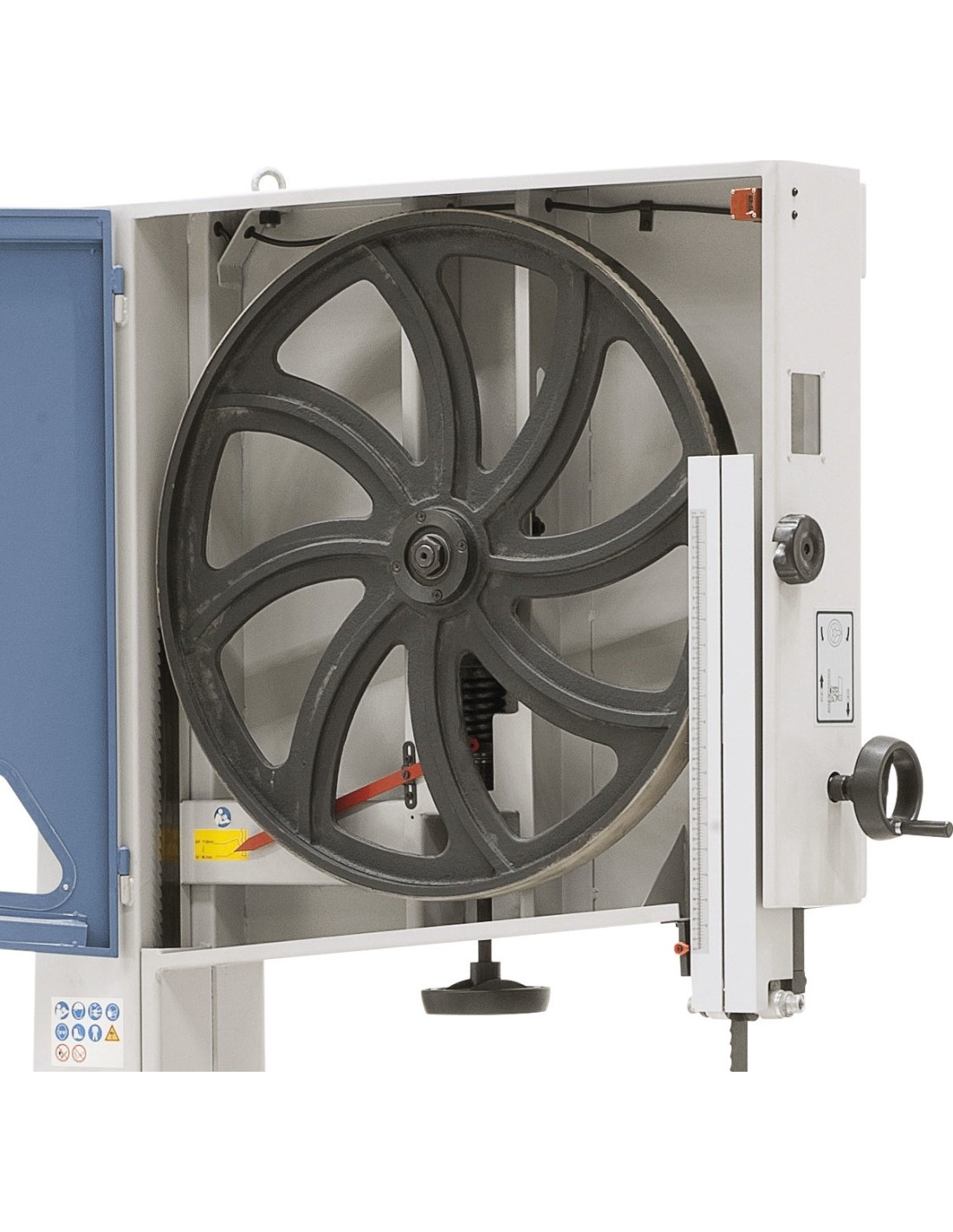

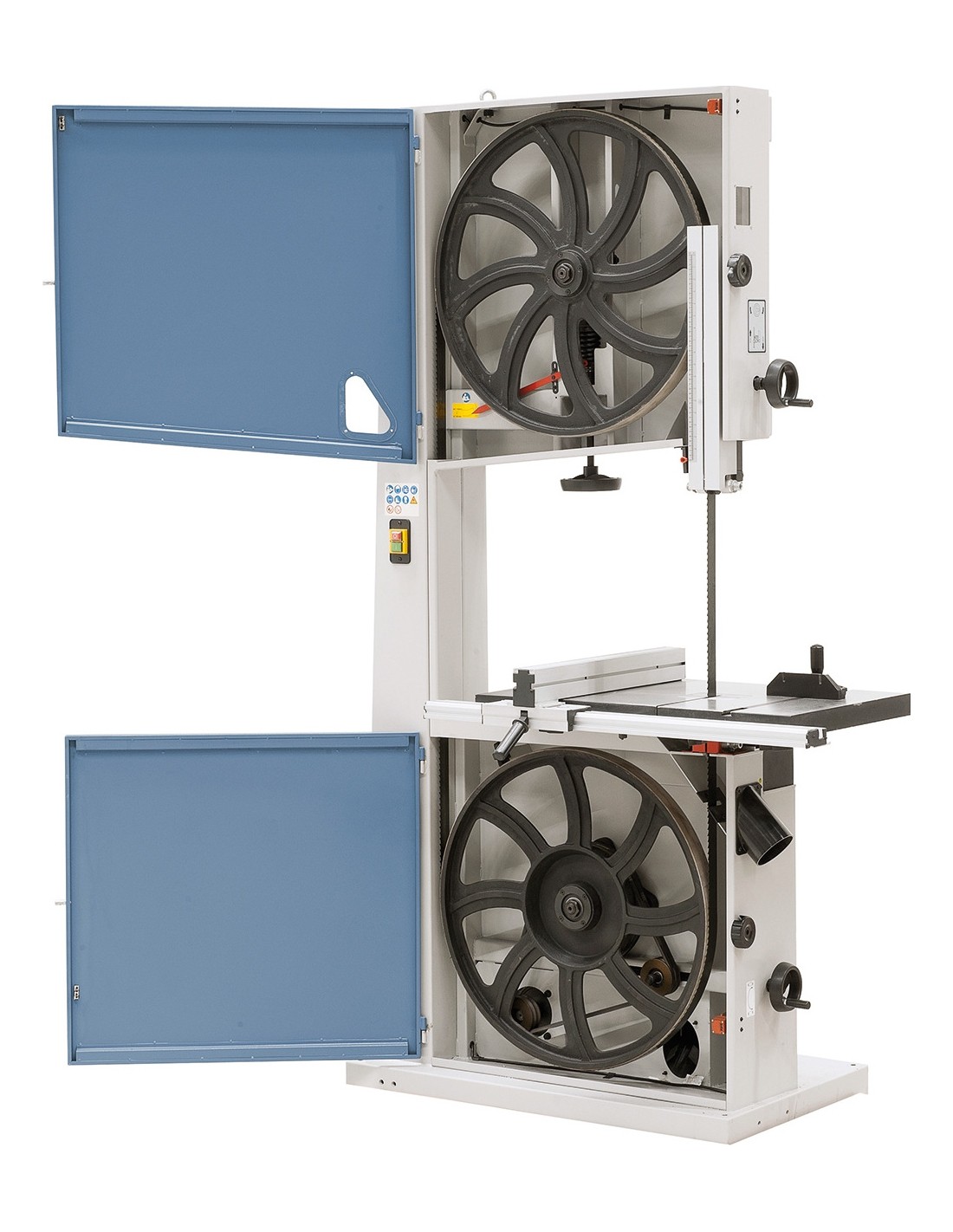

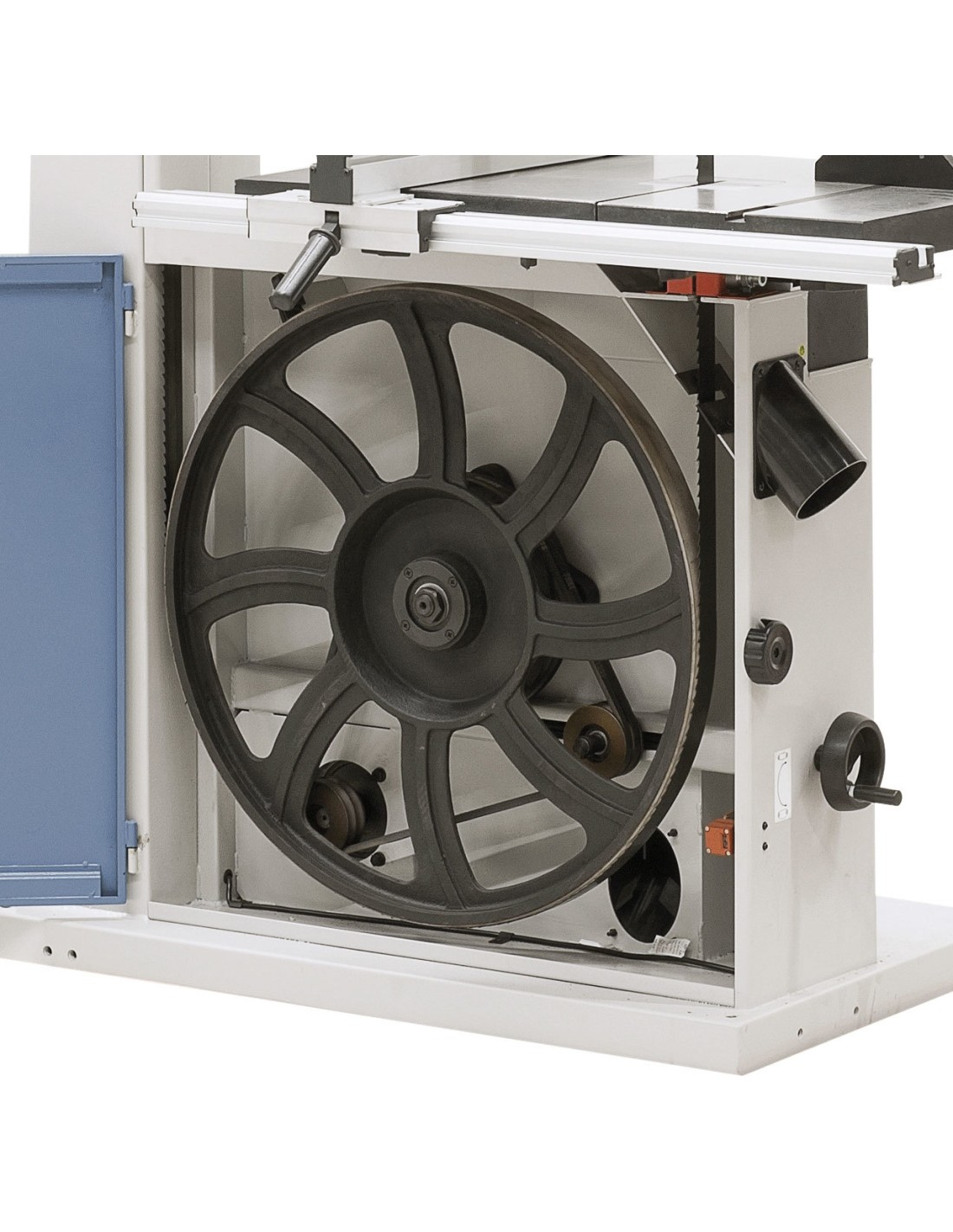

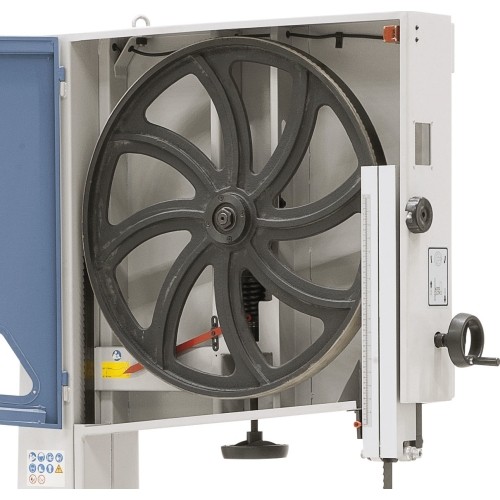

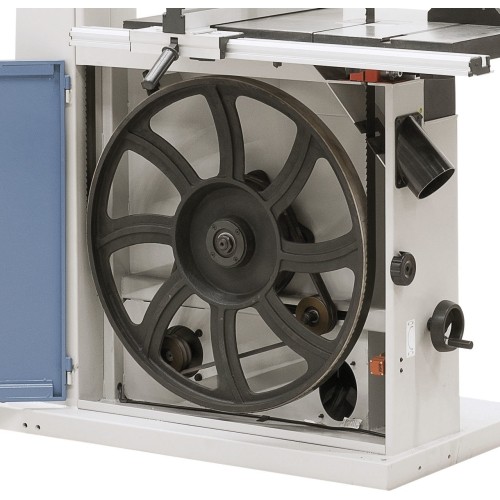

  • Flywheels aut of cast iron with rubber coating and chip brush

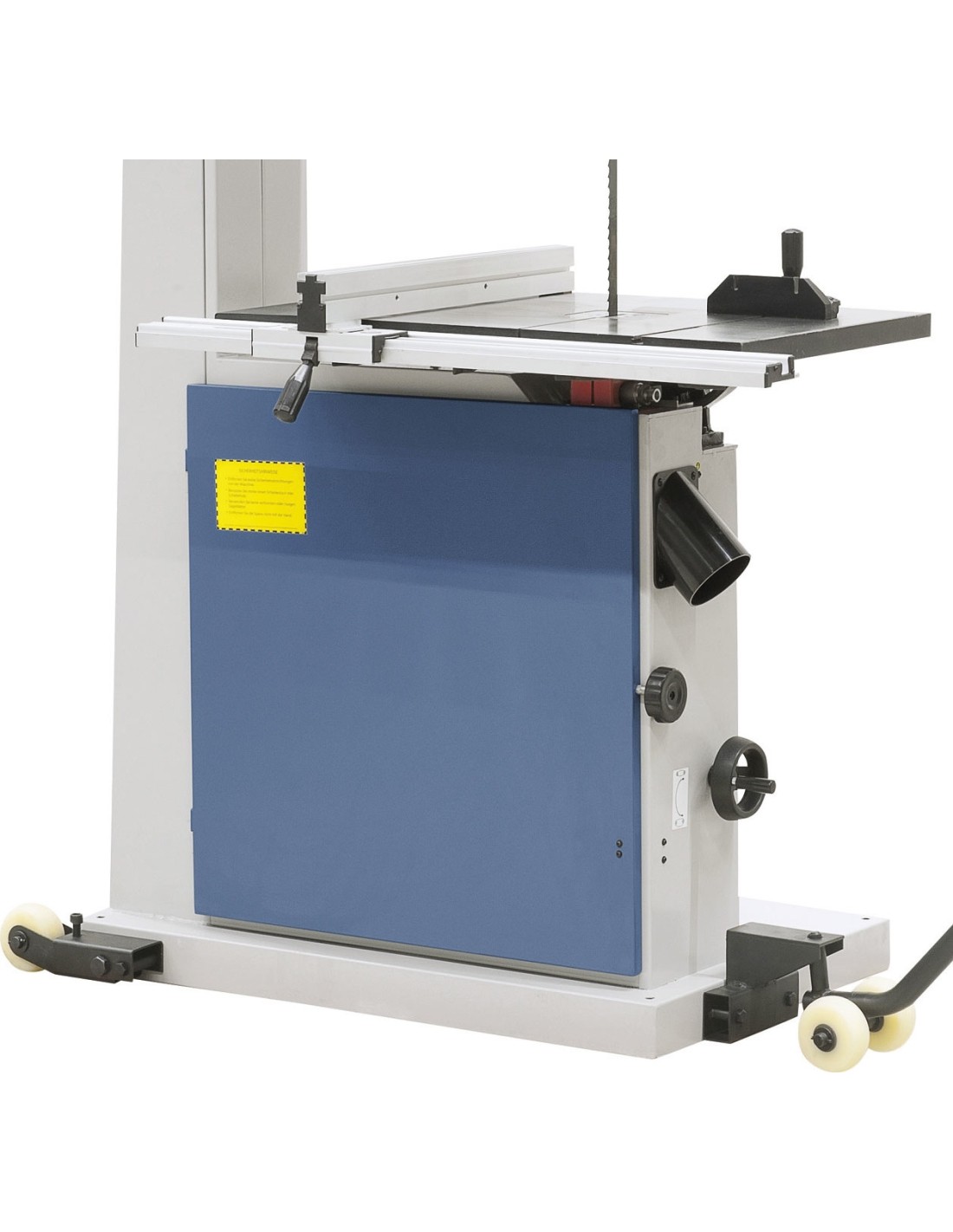

  • Serially with 2 dust extraction outlets (diam. 100 mm) for an optimal dust extraction
  • Torsion-free machine body guarantees for a smooth and precise run
  • Generously dimensioned cast iron table, tiltable from -5° to +45°

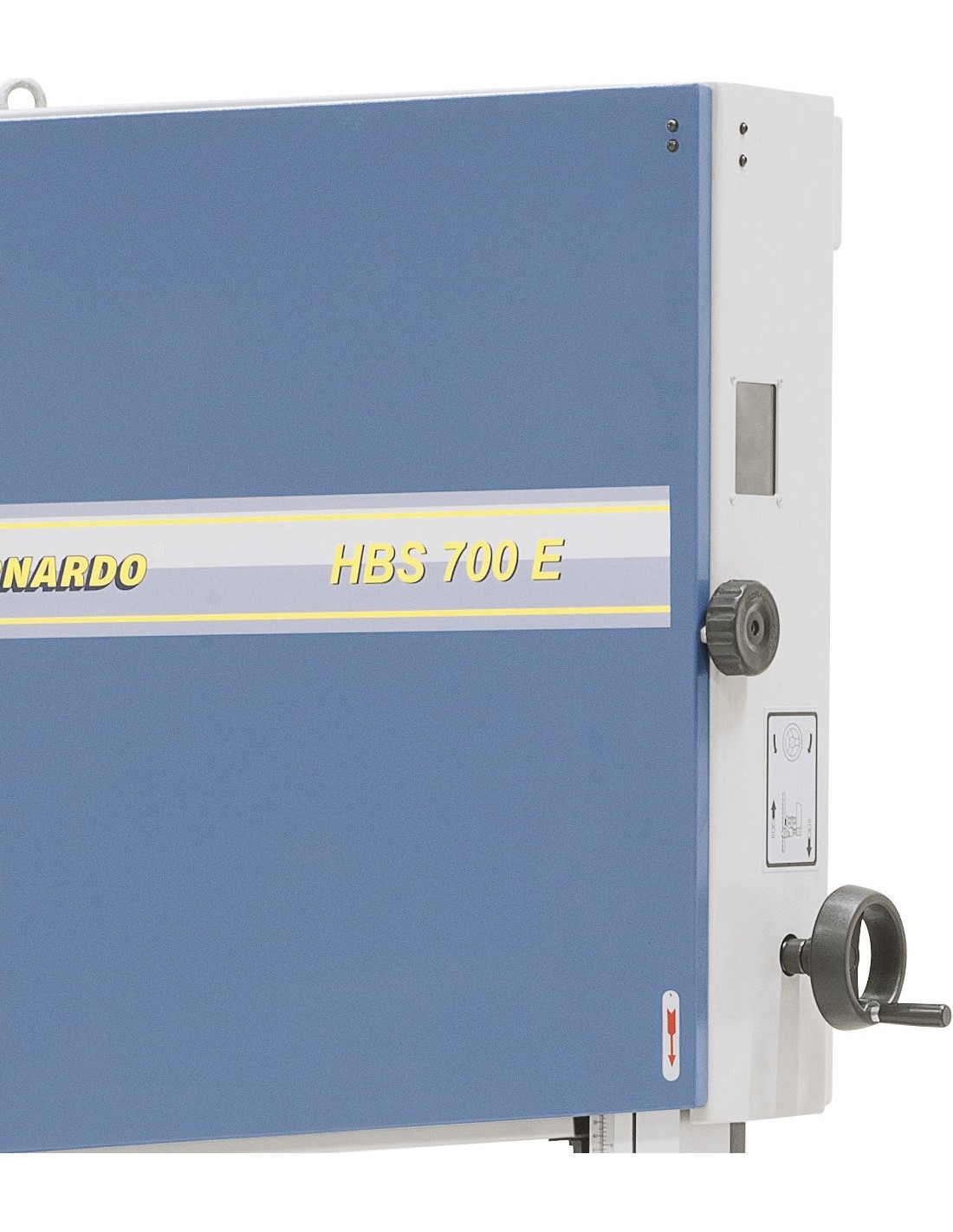

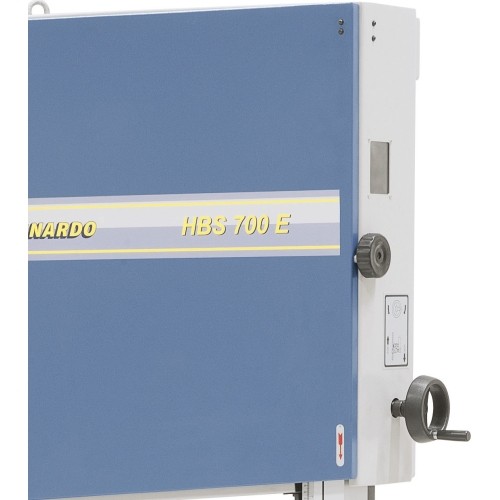

  • Inspection window with indication of the blade tension for the respective bandsaw blade width

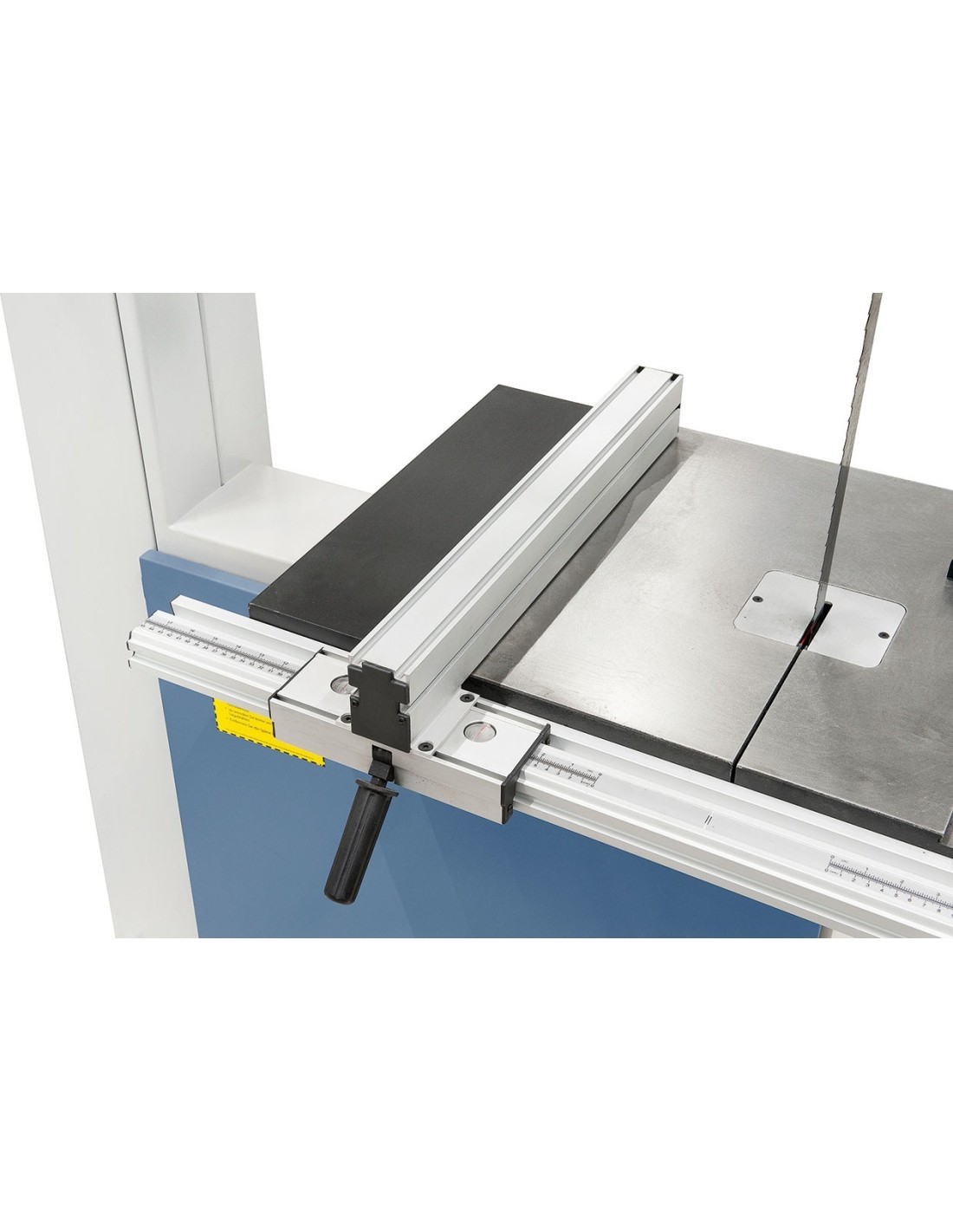

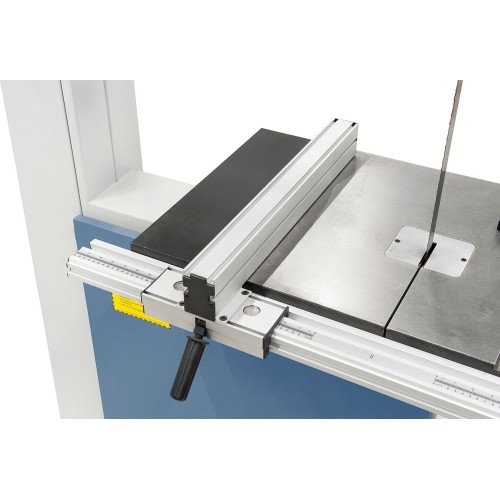

  • Easy adjustable aluminium rip fence with quick clamping system and integrated loupe
  • Including limit switch for automatic shut-down at opening of the blade covers

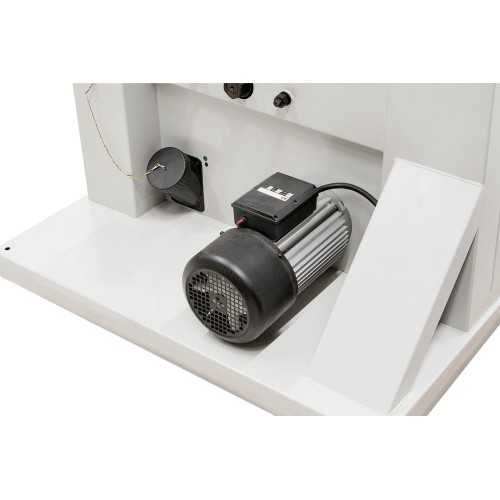

  • High-power drive motor allow handling of bigger workpieces



Standard accessories

  • Bandsaw blade
  • Rip fence with loupe

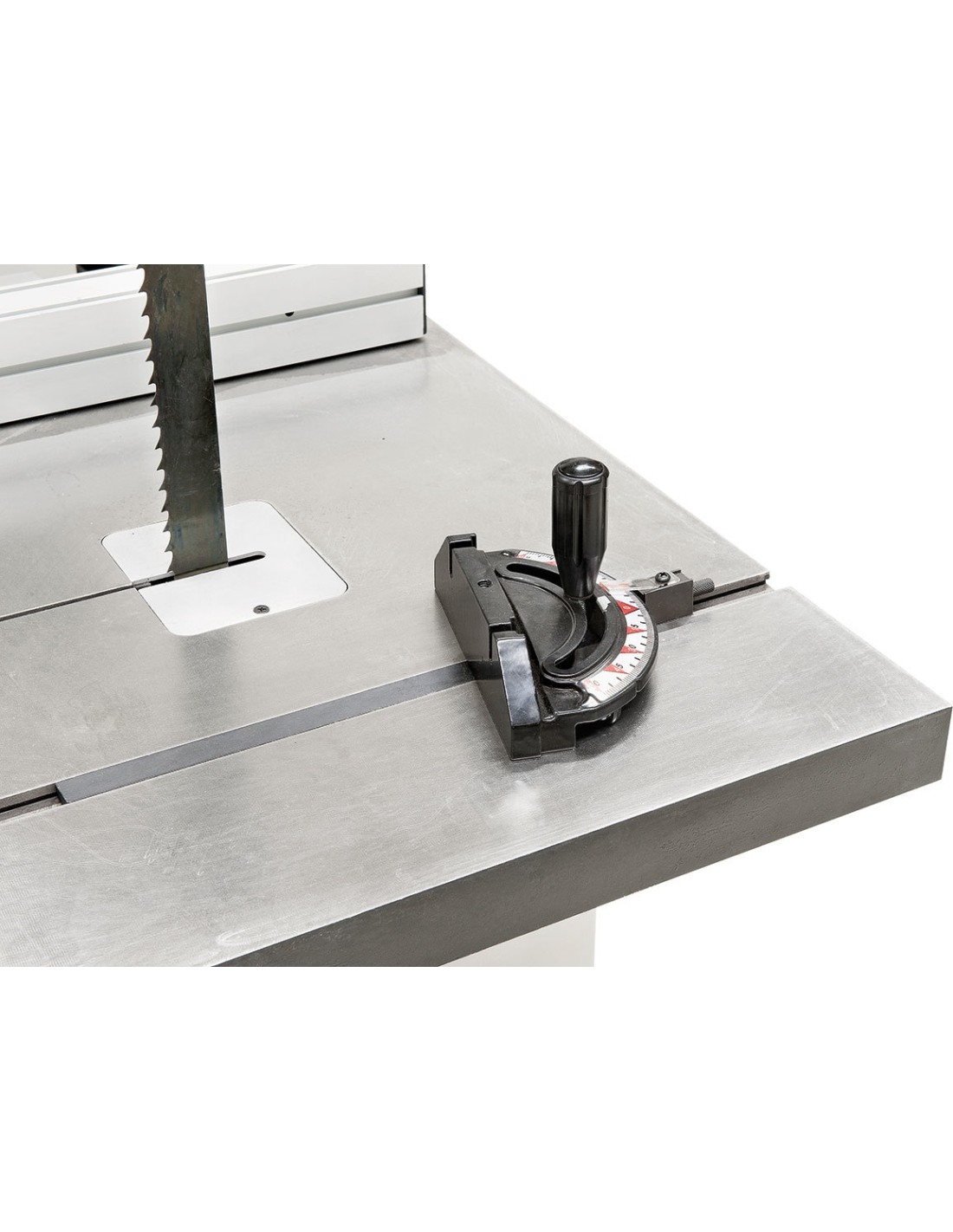

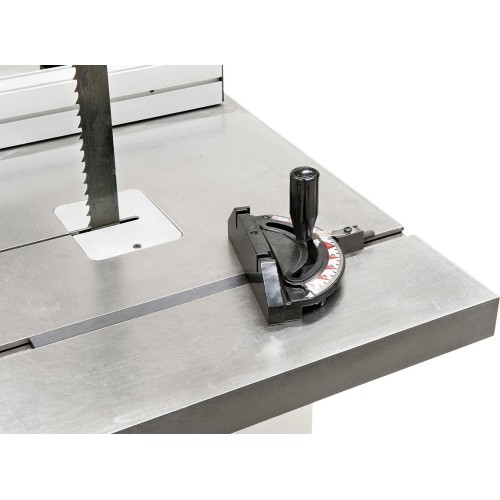

  • Mitre fence
  • Cast iron flywheels
  • Precision 3-roller bandsaw blade guiding

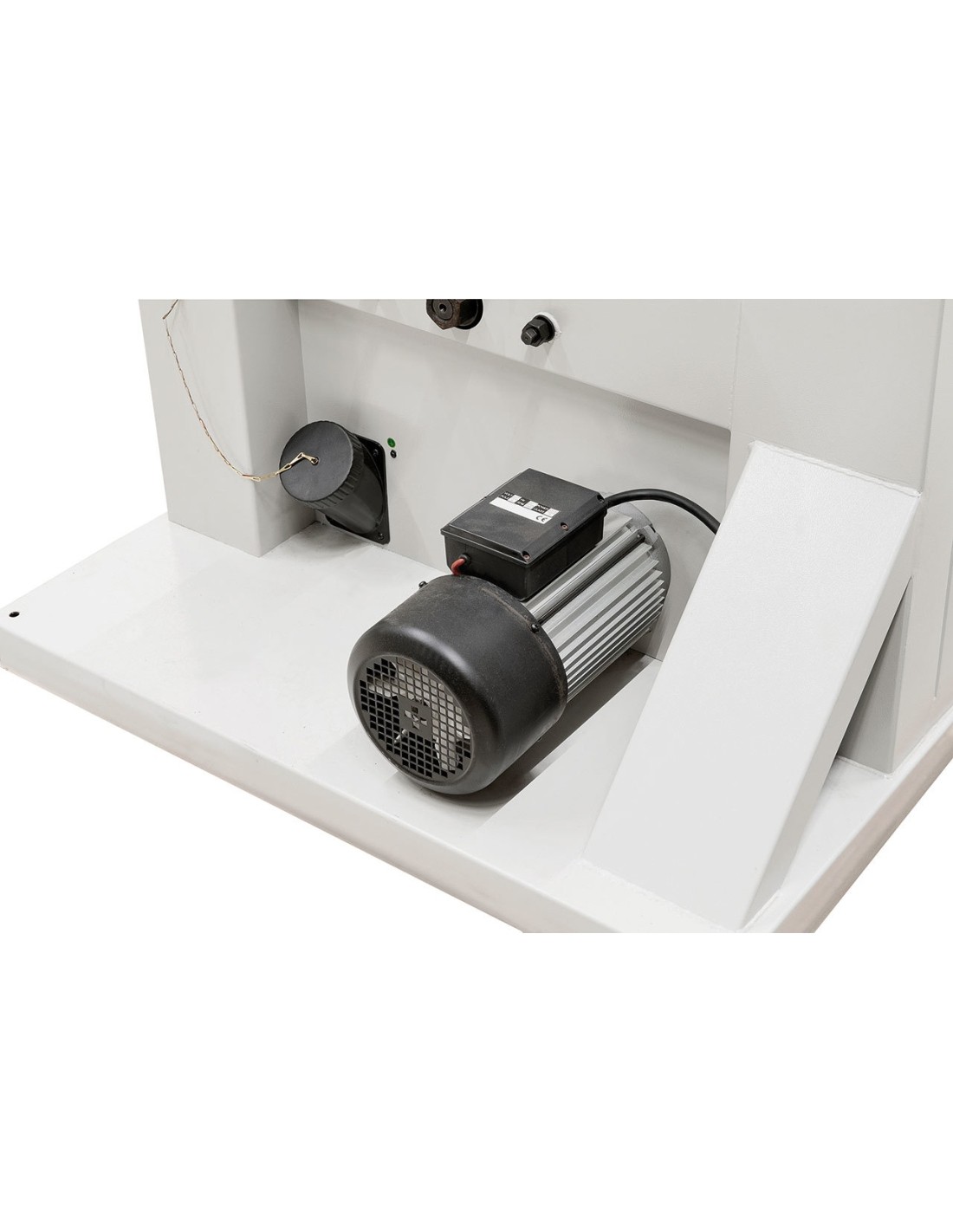

  • Motor incl. brake
  • Push stick
  • Tools
