WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
378 kg
Spindle speed
3500 / 5500 / 7000 rpm
Machine dimension (W x D x H)
1620 x 2340 x 1150 mm
Motor power output S1 100%
2,2 kW (3,0 HP)
Motor power input S6 40%
3,0 kW (4,0 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
1045 x 300 mm
Table height
820 mm
Planing width
250 mm
Table length
600 mm
Shaft rotation speed
3750 rpm
Planer shaft diameter
75 mm
Planer fence
700 x 145 mm
Fence tiltable
90° to 45°
Max. cutting depth
1,8 mm
Working width
250 mm
Working thickness, min./max.
5 - 190 mm
Feed speed
8 m/min
Cutting length
1600 mm
Height adjustment
85 mm
Square table
600 x 410 mm
Sliding table
1600 x 240 mm
Max. sawblade diameter
250 x 30 mm
Max. cutting height 90° / 45°
65 / 55 mm
Cutting width on rip fence
510 mm
Speed main sawblade
4050 rpm
Speed scoring sawblade
6300 rpm
Scoring sawblade
80 x 20 mm
Spindle diameter
30 mm
Table opening
150 mm
Working length of spindle
90 mm
- at profiling
140 mm
- at tenoning
200 mm
Height adjustment of spindle
150 mm
Cutter knives
3 pcs.
Westcott drill chuck
0 - 16 mm
Max. drill depth
105 mm
Drill width
140 mm

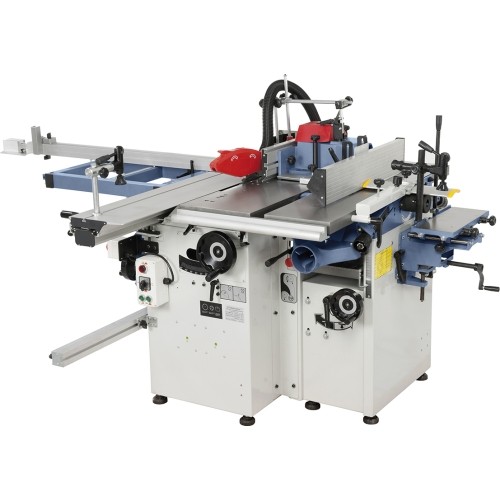

Universalios daugiafunkcinės staklės CWM 260 F - 1600

1052676
€5,346.00
Tax included
Monthly payment from 131.4€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 378 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 378 kg.

Description

Properties

  • Maintenance-free, precisely bedded 3-knife cutterblock with HSS-knives

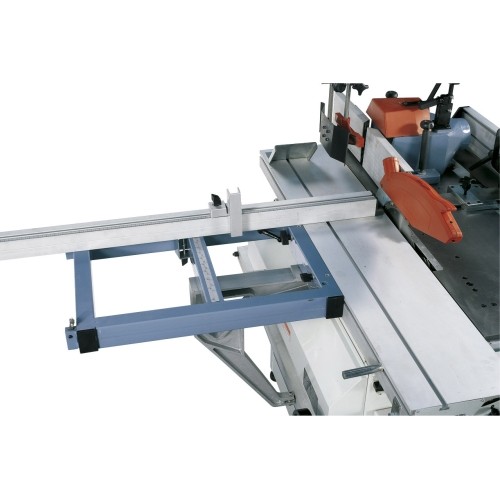

  • Torsion-free, aluminium sliding table with prism-shaped guide
  • Both planer tables feature fine adjustment and noise-reducing table lips

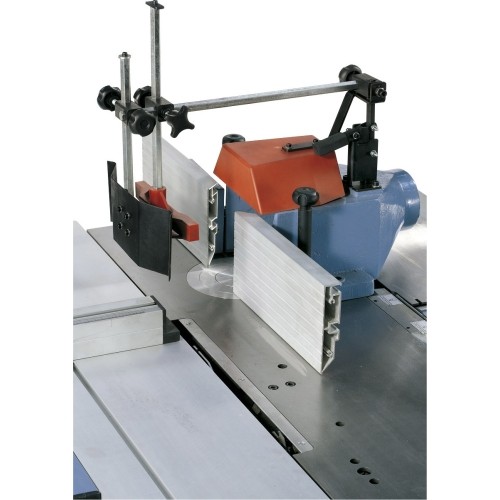

  • Moulding fence with aluminium fence rails adjustable on both sides
  • Moulder unit features 3 speeds for optimal adjustment to the workpiece

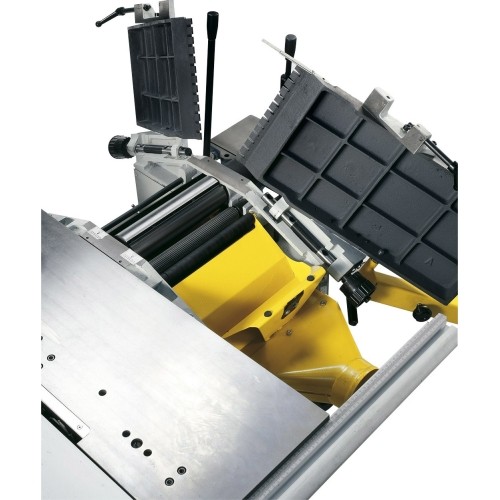

  • Planer tables tilt into upright position for quick conversion to thicknessing
  • All switches are logically arranged on the control panel

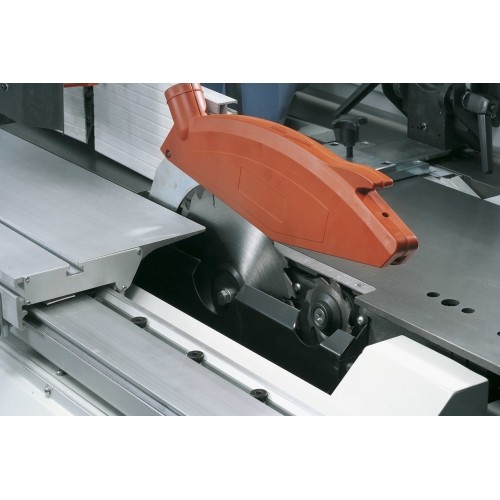

  • Handwheel with scale allows for tilting of sawblade up to 45º
  • Integrated, tiltable dust hood - extraction outlet 100 mm
  • Solid aluminium planer fence, tilts 90º to 45º
  • Square table in generous size allows for support of larger panels

Standard accessories

  • Cutter knives 250 x 30 x 3 mm
  • Planer fence

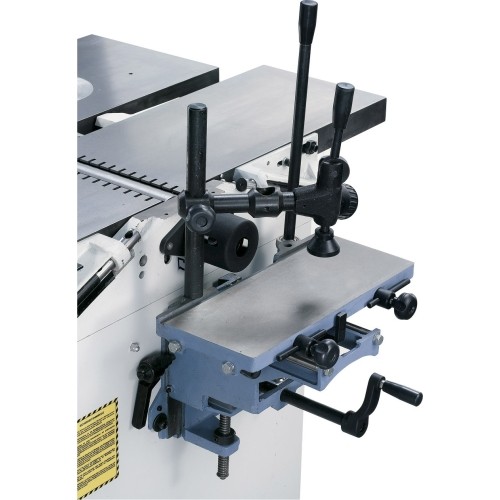

  • Mortising unit
  • Westcott drill chuck 0 - 16 mm
  • Eccentric holder
  • Sawblade 250 x 3,2 x 30 mm / 24T
  • Scoring sawblade 80 x 3,2 x 20 mm / 8T
  • End stop
  • Telescopic fence with stop
  • Square table
  • Moulding fence
  • Push stick
  • Protective cover with dust extraction outlet and tube
  • Tools
