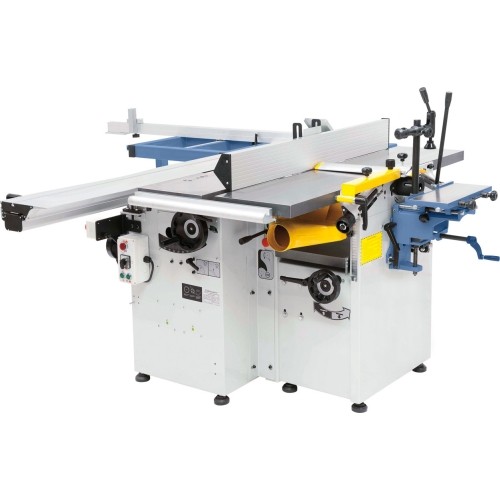

Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000
Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000

WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
445 kg
Spindle speed
3500 / 5500 / 7000 rpm
Machine dimension (W x D x H)
2000 x 2500 x 1200 mm
Motor power output S1 100%
2,2 kW (3,0 HP)
3,0 kW (4,0 HP)
Motor power input S6 40%
3,0 kW (4,0 HP)
4,2 kW (5,7 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
370 x 155 mm
1145 x 300 mm
Table height
835 mm
Table extension
240 x 300 mm
Planing width
310 mm
Table length
600 mm
1300 mm
Shaft rotation speed
4000 rpm
Planer shaft diameter
75 mm
Planer fence
1110 x 130 mm
Fence tiltable
90° to 45°
Max. cutting depth
2,5 mm
5 mm
Working width
305 mm
Working thickness, min./max.
5 - 180 mm
Feed speed
8 m/min
Cutting length
2240 mm
Height adjustment
80 mm
145 mm
Square table
600 x 415 mm
Sliding table
2000 x 240 mm
Max. sawblade diameter
250 x 30 mm
Max. cutting height 90° / 45°
60 / 50 mm
Cutting width on rip fence
520 mm
Speed main sawblade
4050 rpm
Speed scoring sawblade
6300 rpm
Scoring sawblade
80 x 20 mm
Spindle diameter
30 mm
Table opening
150 mm
Working length of spindle
100 mm
Cutter knives
3 pcs.
Westcott drill chuck
0 - 16 mm
Max. drill depth
90 mm
Drill width
140 mm
-at profiling
140 mm
-at tenoning
200 mm

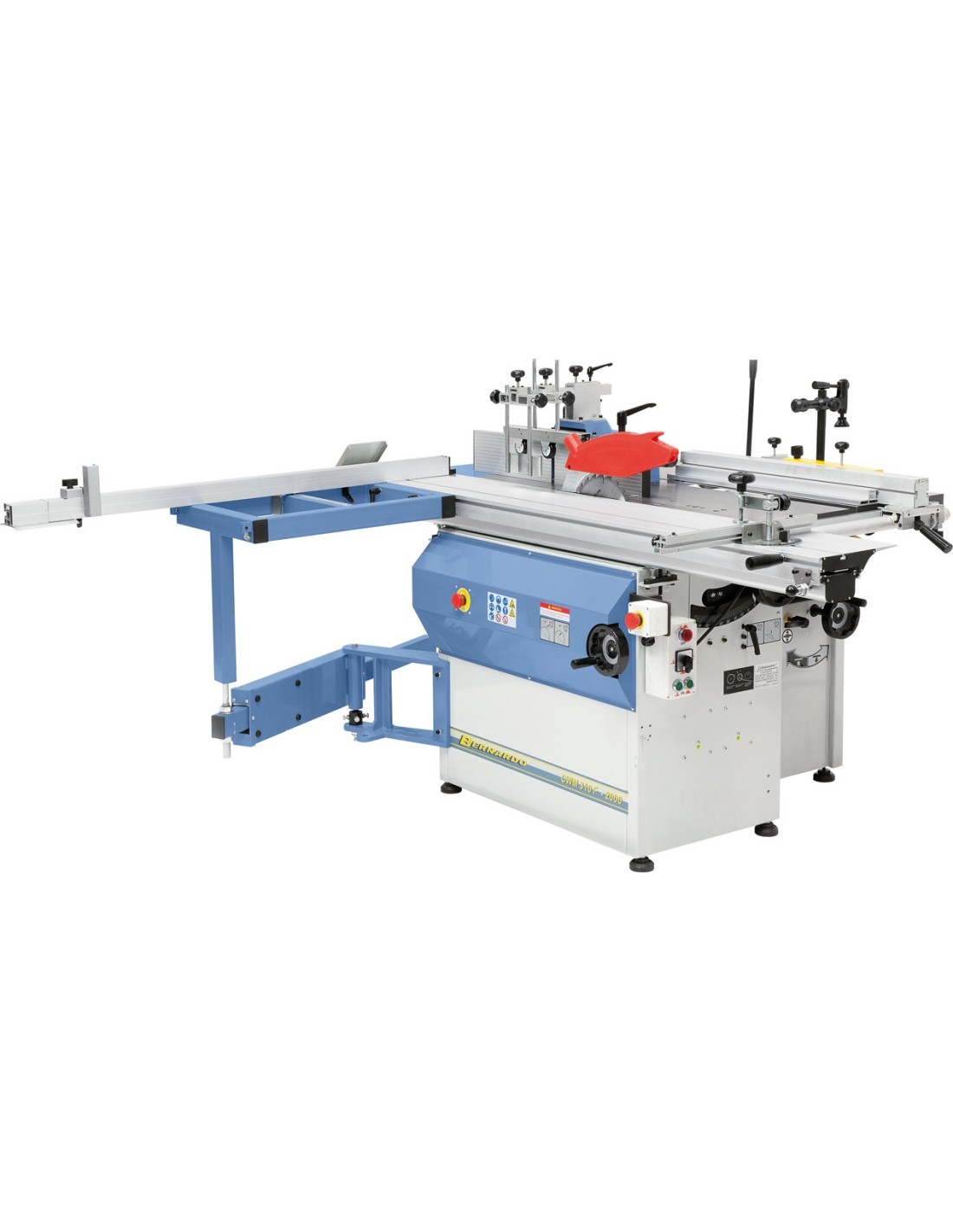

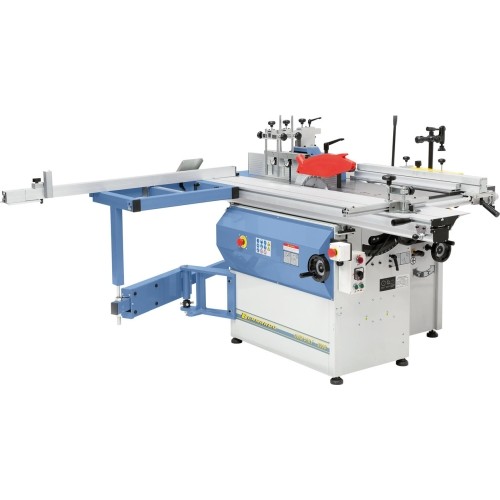

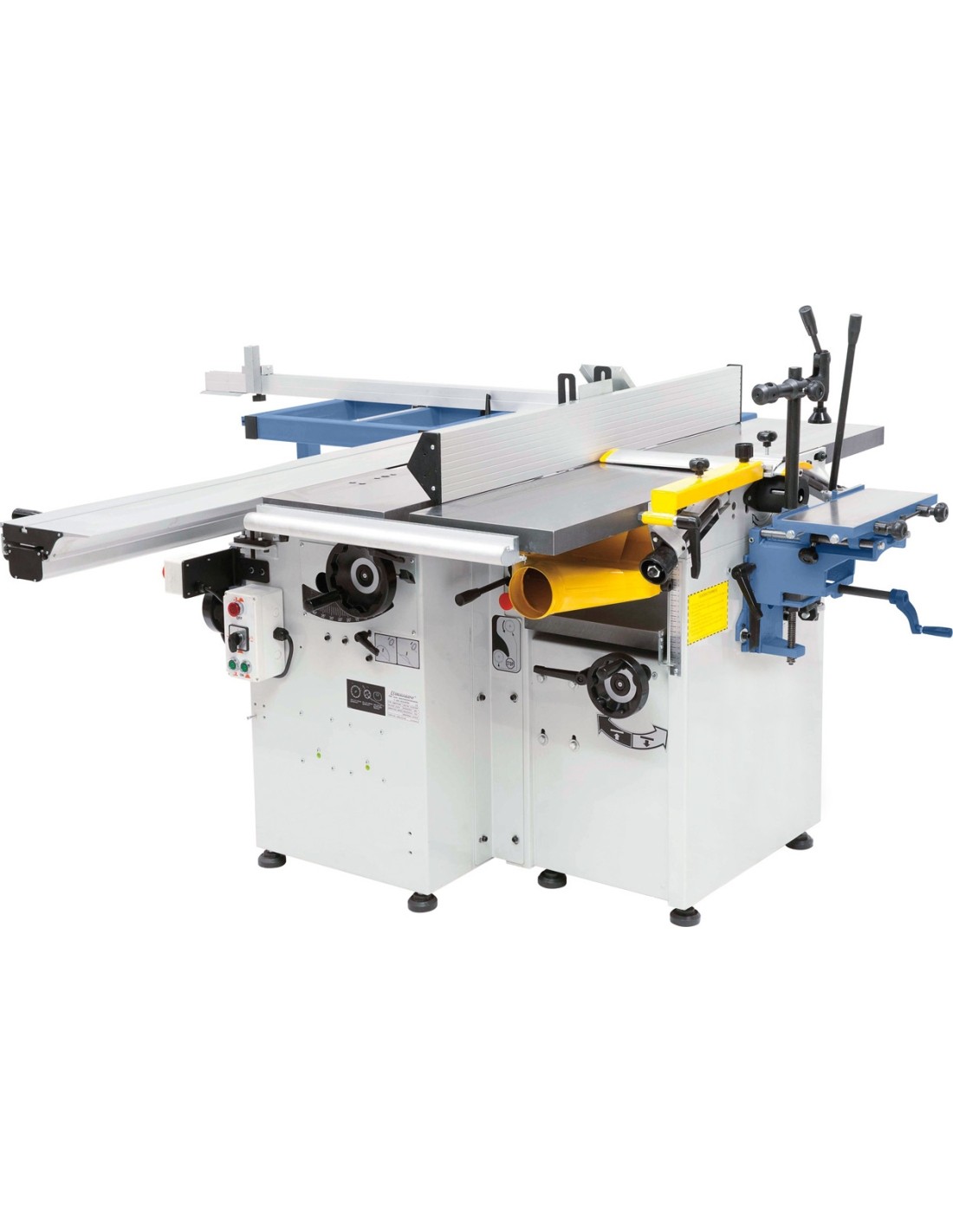

Universalios daugiafunkcinės staklės Bernardo CWM 310 F - 2000

1055966
Price €9,728.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up friday, august 29 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 445 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 445 kg.

Description

Properties

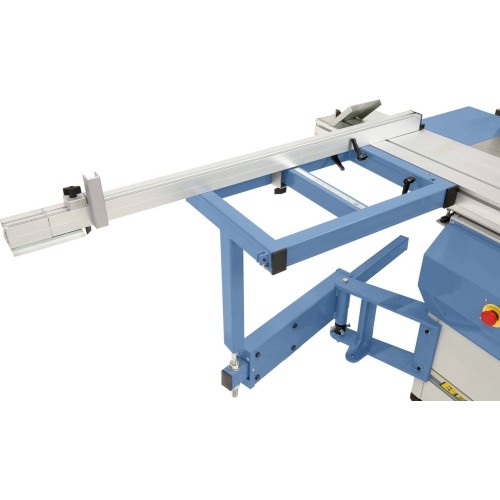

  • Extractable telescopic fence can be mounted at front or rear of square table
  • Solid square table allows for sufficient support when processing large panels
  • Large, robust grey cast-iron table eliminates vibrations

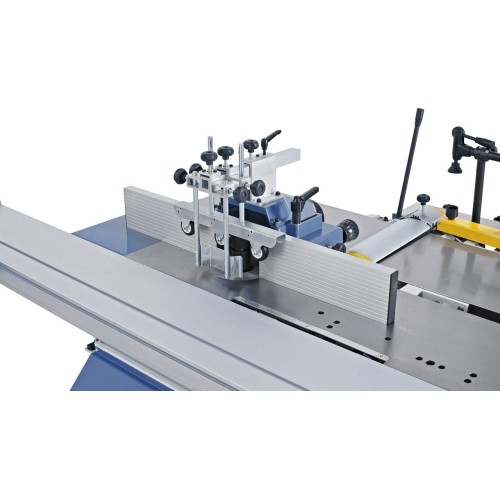

  • Moulder unit comes complete with 3 speed settings (3500 / 5500 / 7000 rpm)

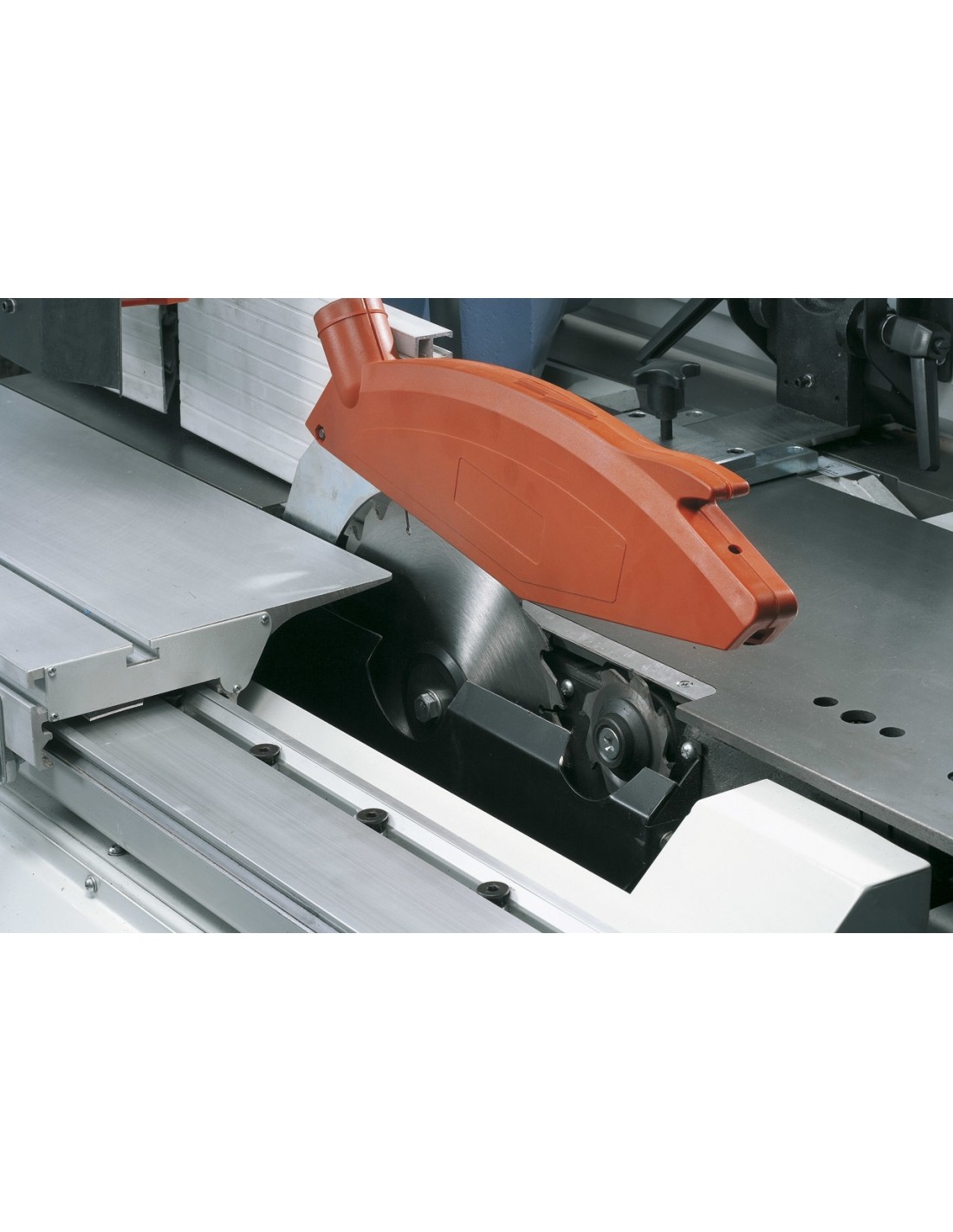

  • Smooth, precise sliding table with hardened, prism-shaped guide
  • Ergonomically arranged handwheels guarantee convenient adjustment of saw unit

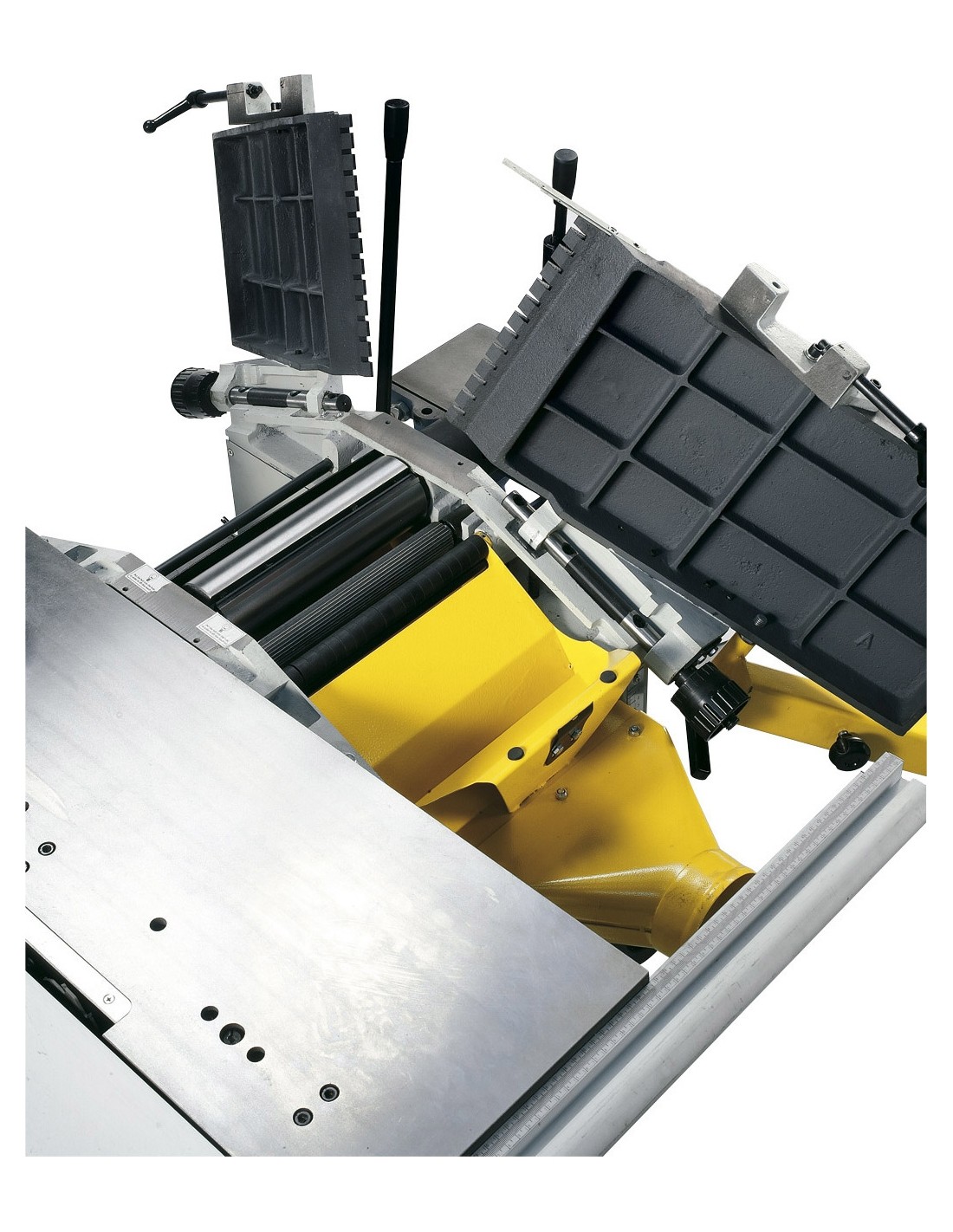

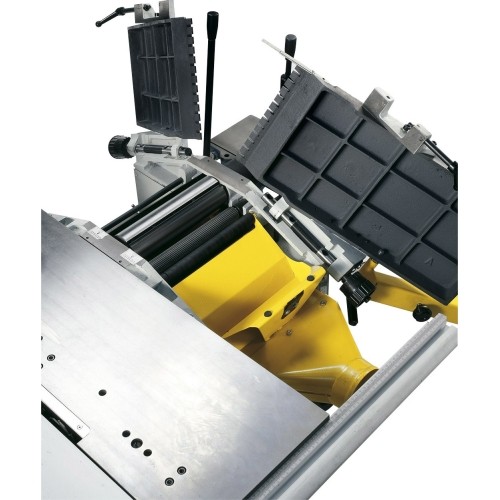

  • Planer tables tilt into upright position to allow for quick conversion to thicknessing
  • Solid aluminium planer fence, tiltable from 90º to 45º
  • Maintenance-free, precisely bedded 3-knife cutterblock features HSS-knives

Standard accessories

  • Cutter knives 310 x 30 x 3 mm

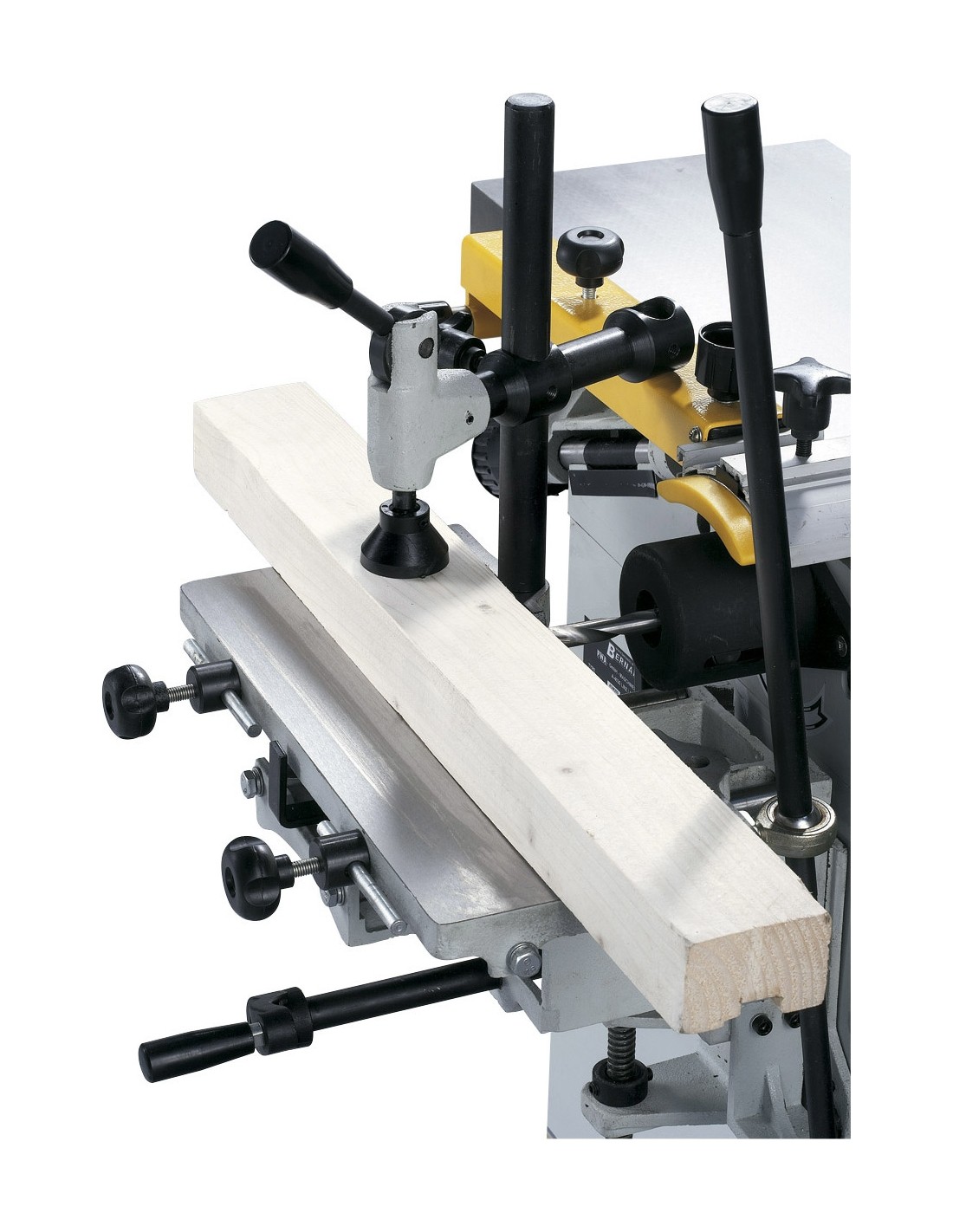

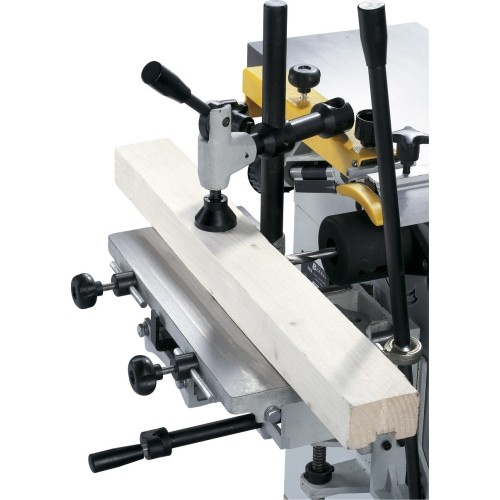

  • Mortising unit
  • Westcott drill chuck 0 - 16 mm

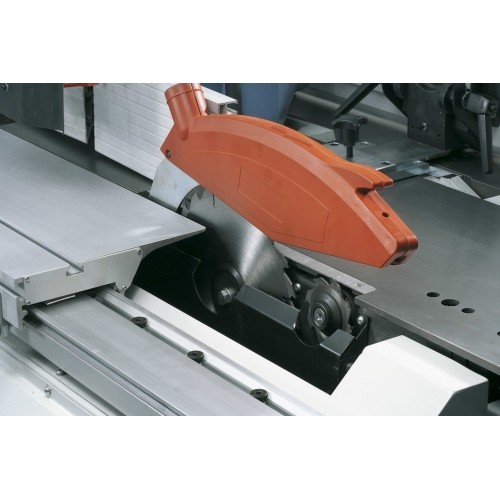

  • Carbide sawblade 250 x 3,2 x 30 mm / 24T
  • Scoring sawblade 80 x 3,2 x 20 mm / 8T
  • Mitre fence with eccentric holder
  • End stop
  • Table extension

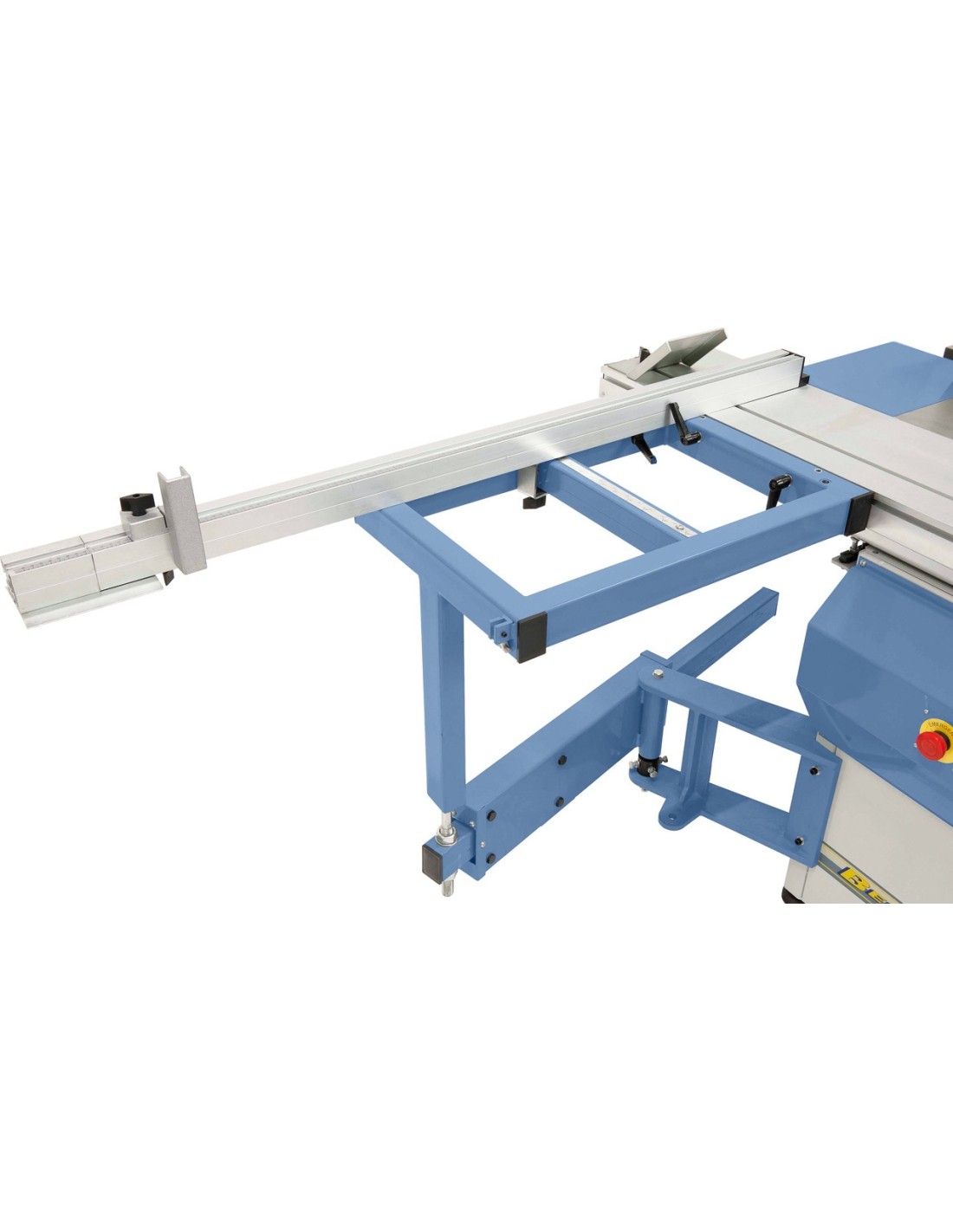

  • Telescopic fence with stop

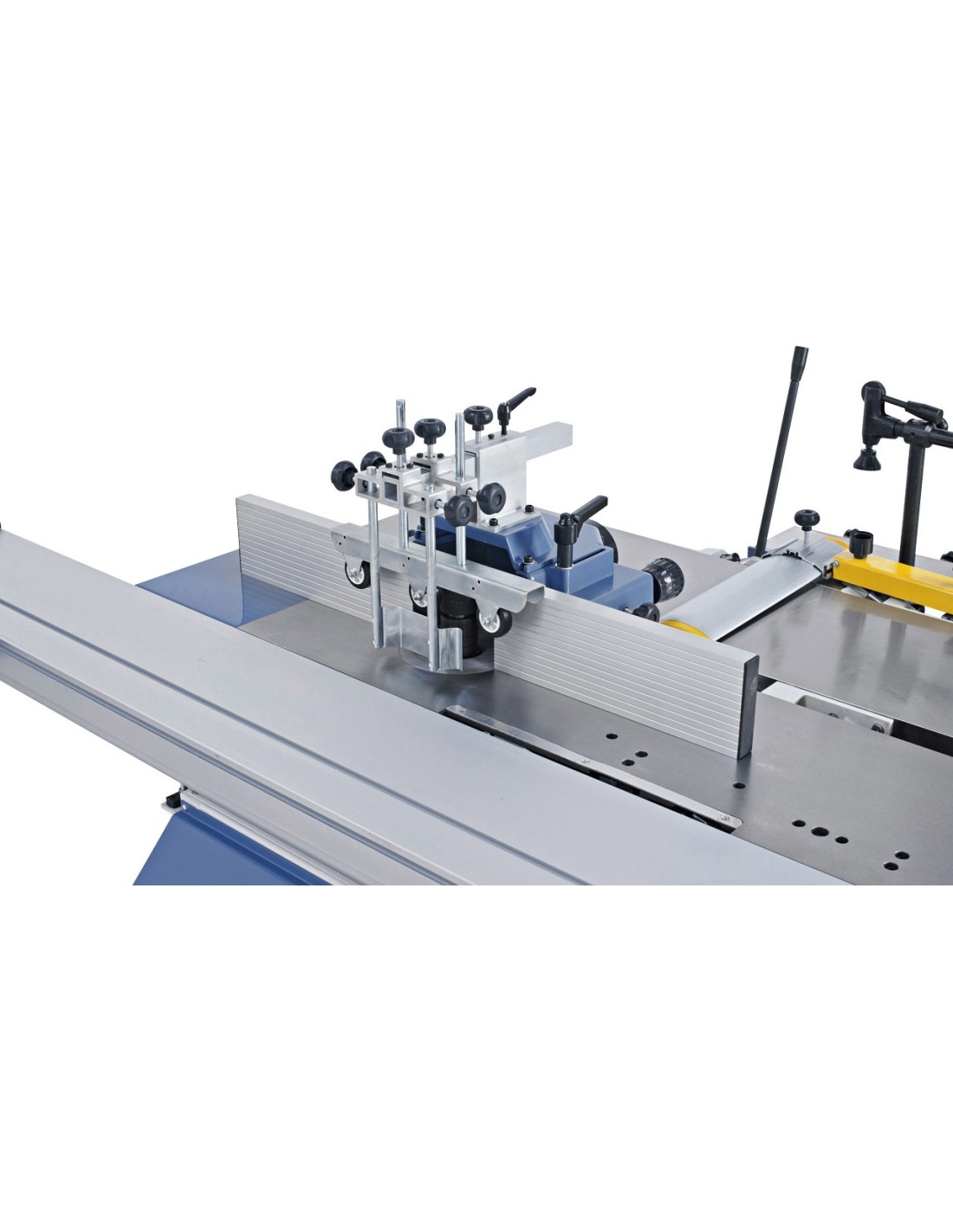

  • Moulding fence
  • Protective cover with dust extraction outlet and tube
  • Push stick
  • Tools
