WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
170 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Working height
910 mm
Machine dimension (W x D x H)
790 x 640 x 1200 mm
Motor power output S1 100%
2,8 kW (3,8 HP)
Motor power input S6 40%
3,9 kW (5,3 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
710 x 640 mm
Spindle diameter
30 mm
Table opening
200 mm
Working length of spindle
105 mm
Height adjustment of spindle
100 mm
Max. tool diameter
200 mm
Max. tool diameter concealed
180 mm

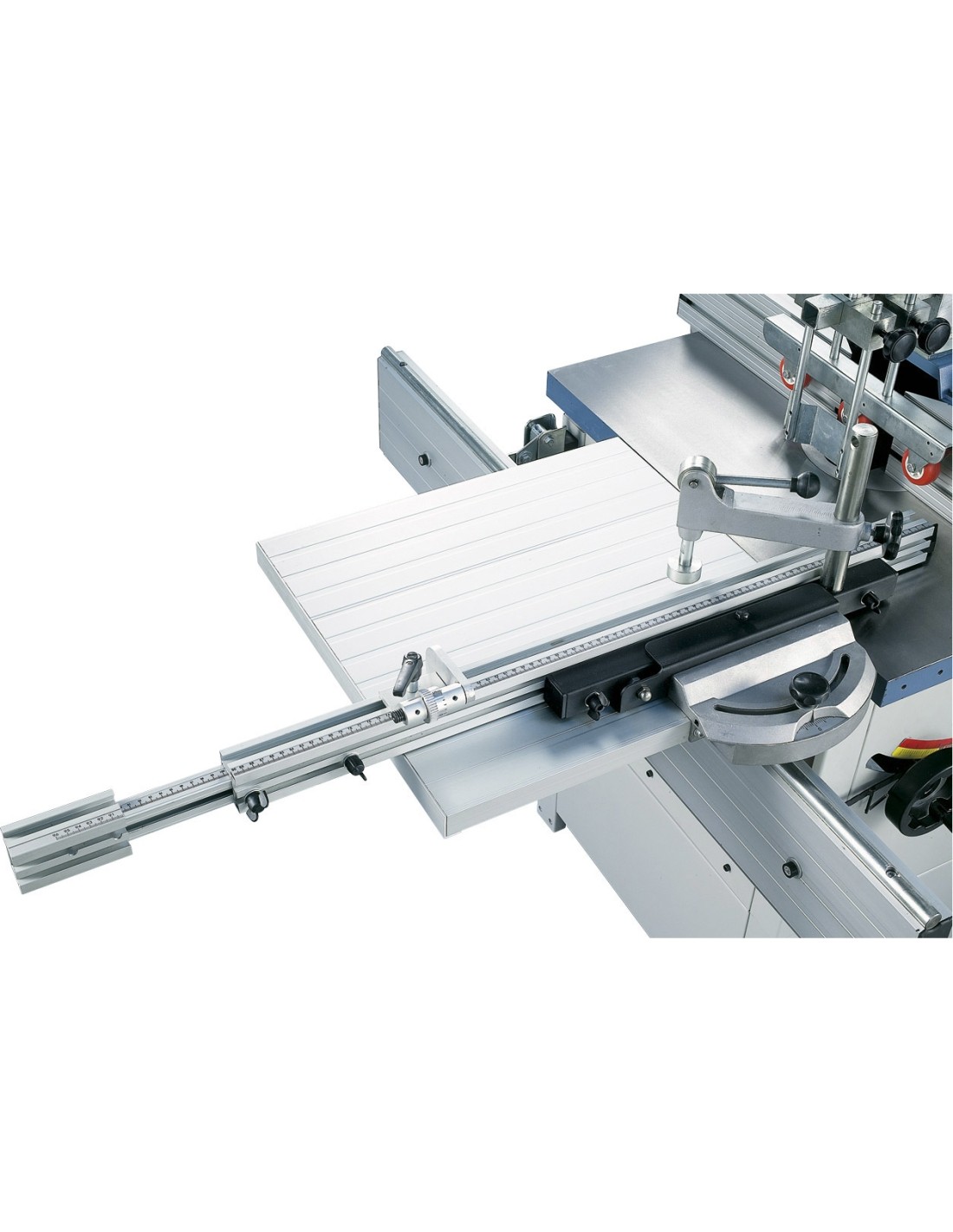

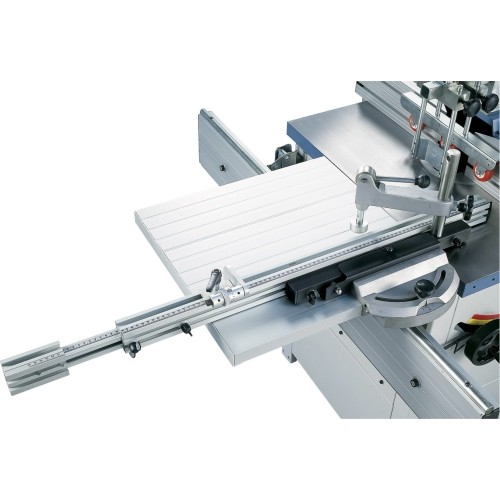

Table size roller table (option)
500 x 480 mm
Tilting spindle
-5° to +30°

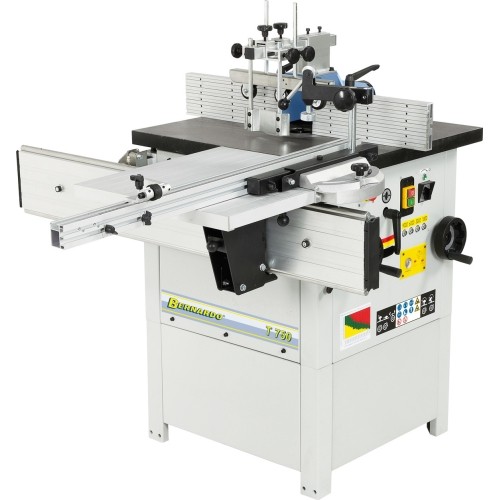

T 750 - 400 V

1091844
Price €2,883.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up friday, august 29 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 170 kg.
We will deliver the product to you via: 5-10 w.d. Venipak (€40.99)
Weight: 170 kg.

Description

Properties

  • Large, grey cast-iron work table

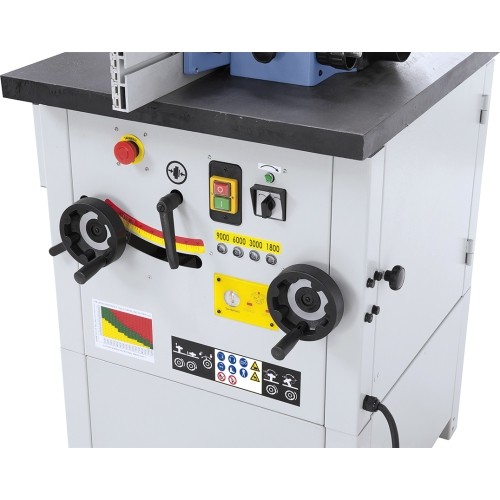

  • LED speed indicator allows for quick and easy readout

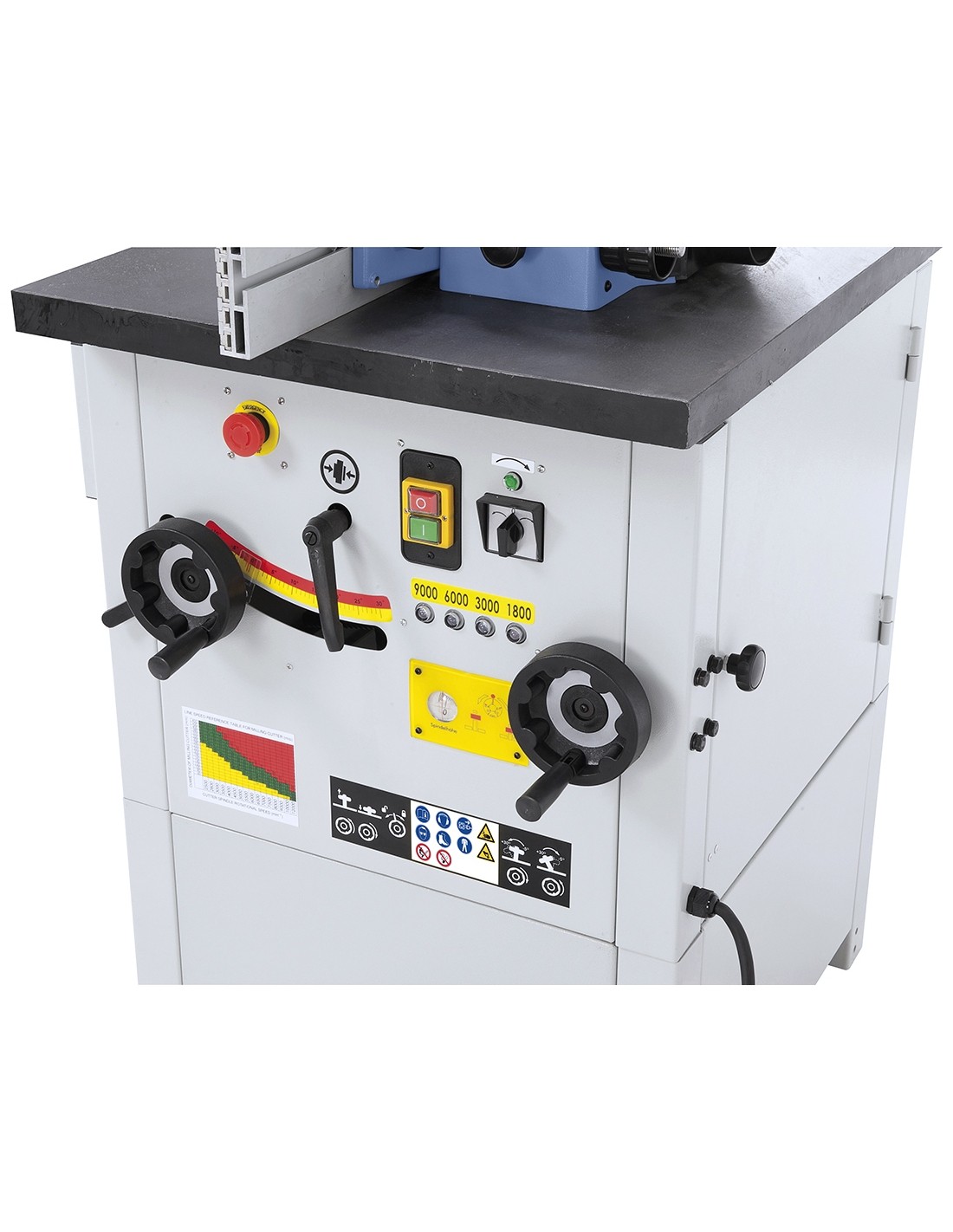

  • Ergonomically positioned controls and switches guarantee high work comfort
  • Powerful motor, even at continuous operation
  • Solid and easily tiltable moulder unit, tiltable from -5º to +30º
  • Dynamically balanced spindle ensures precise machine run

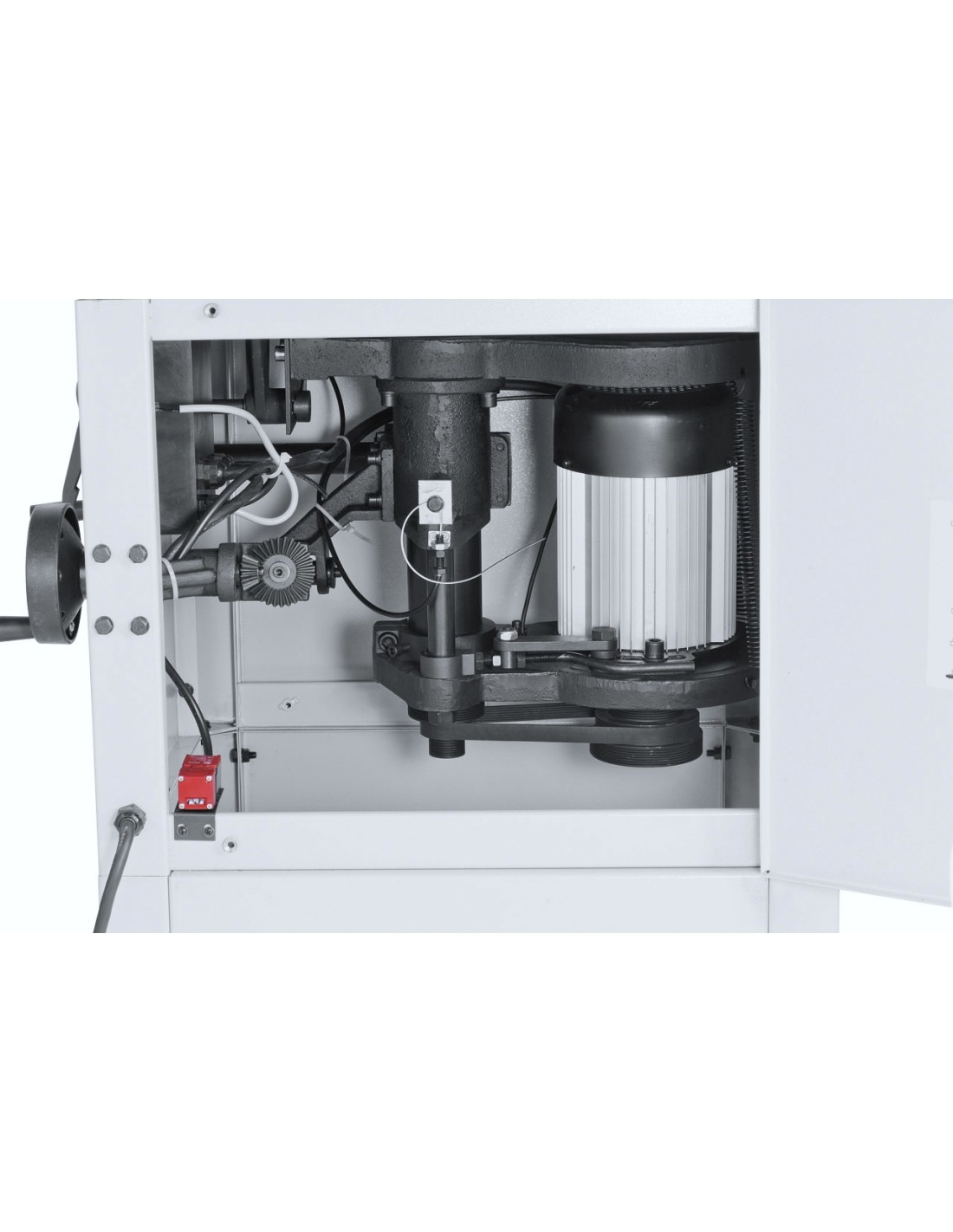

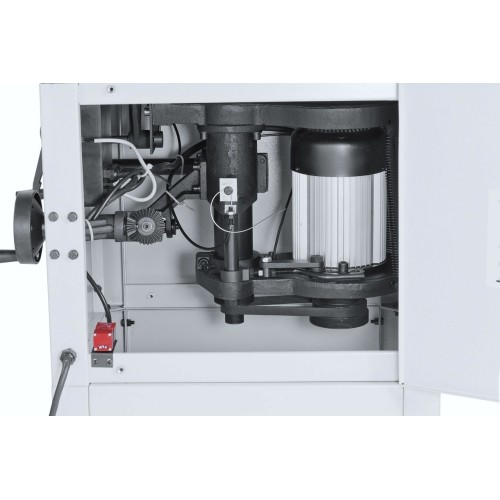

  • V-belt ensures quick and easy speed change

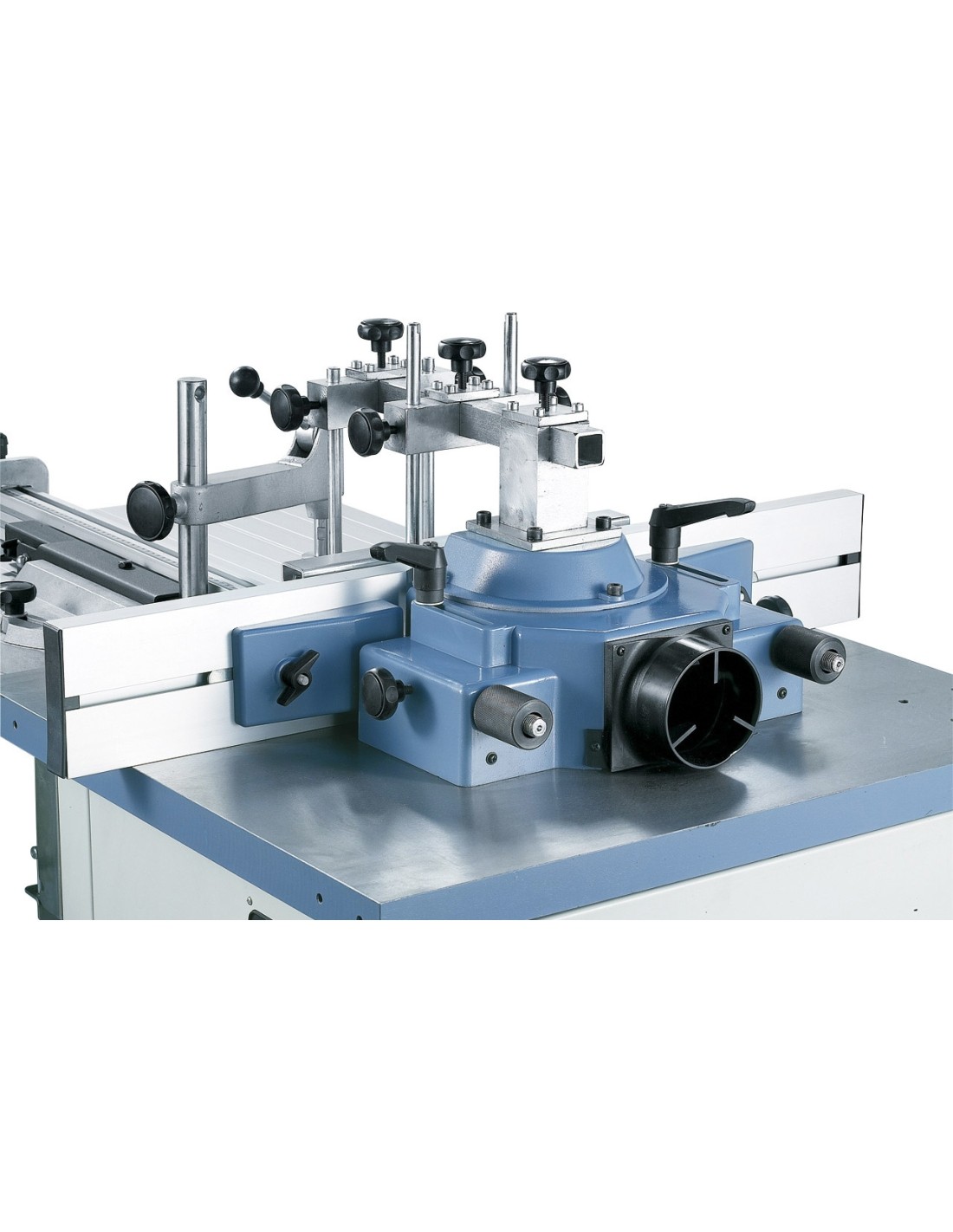

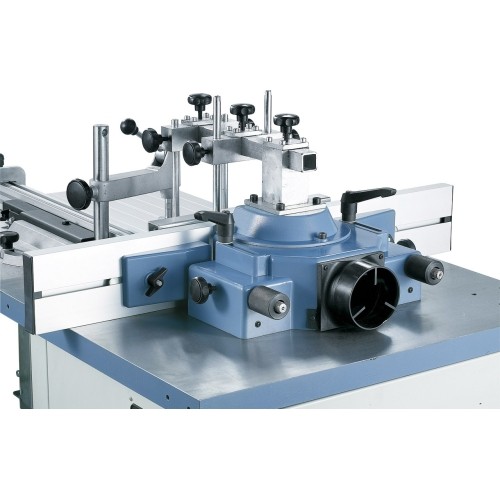

  • Sturdy moulding fence with dust port of 100 mm and integral safety guides

Standard accessories

  • Electronic speed indication

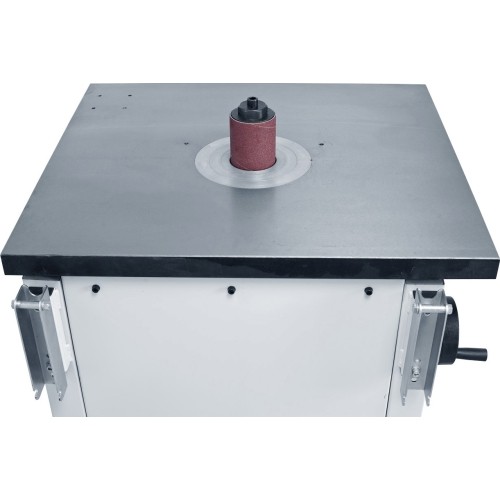

  • Sanding sleeve diam. 75 mm
  • Left and right turning

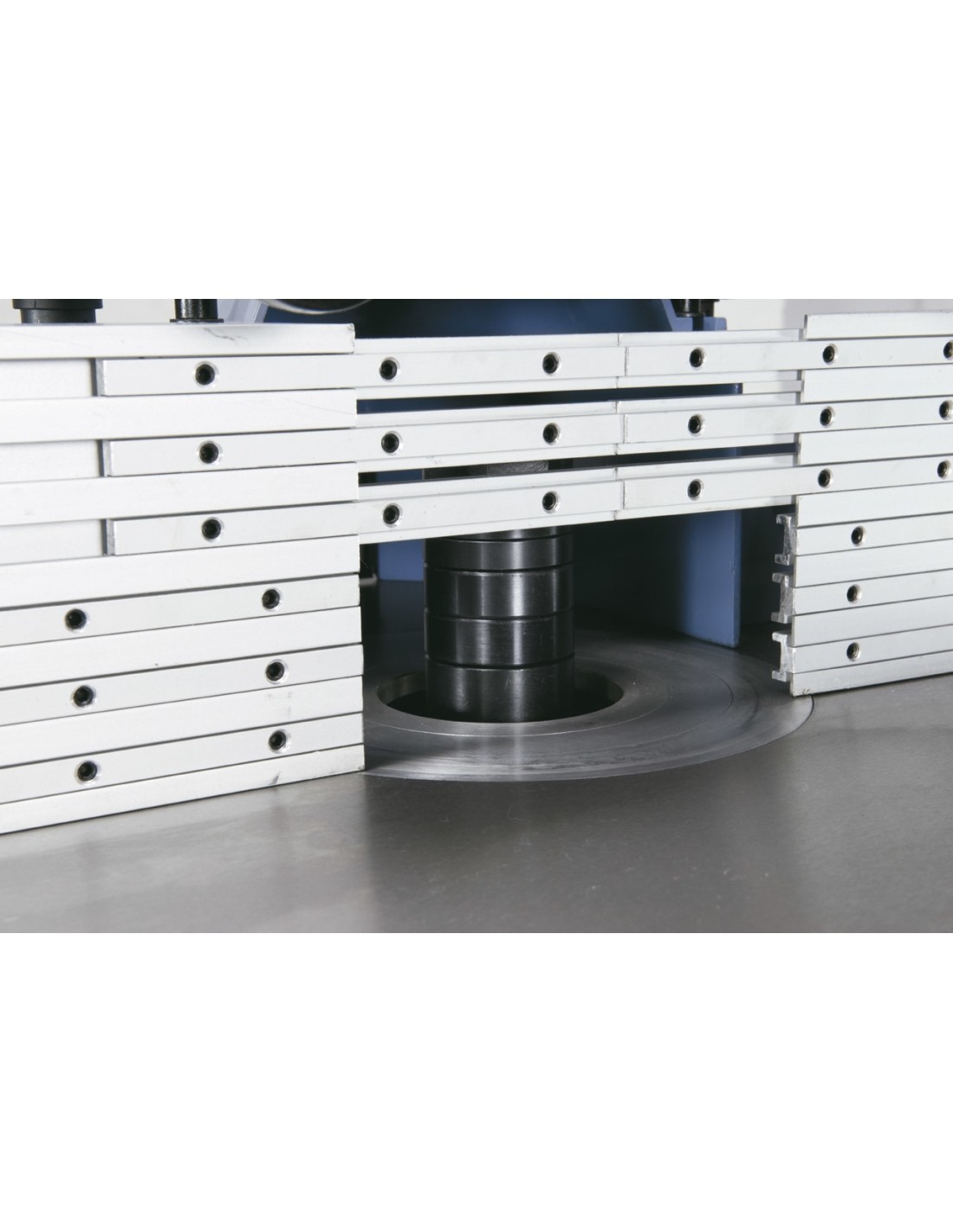

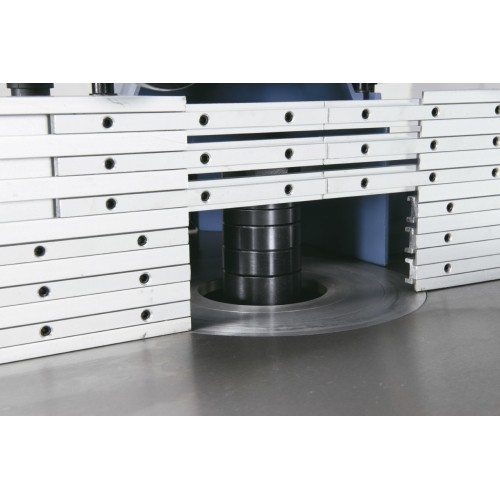

  • Integral safety guides
  • Protective and pressing device
