WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
258 kg
Machine dimension (W x D x H)
2000 x 2870 x 1140 mm
Motor power output S1 100%
3,0 kW (4,0 HP)
Motor power input S6 40%
4,2 kW (5,7 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
825 x 800 mm
Table height
870 mm
Table extension
500 x 310 mm
Cutting length
2000 mm
Table enlargement
800 x 440 mm
Sliding table
2000 x 270 mm
Max. sawblade diameter
315 x 30 mm
Max. cutting height 90° / 45°
100 / 80 mm
Cutting width on rip fence
1240 mm
Speed main sawblade
4000 rpm
Speed scoring sawblade
5800 rpm
Scoring sawblade
90 x 20 mm
Square table with roll
700 x 580 mm

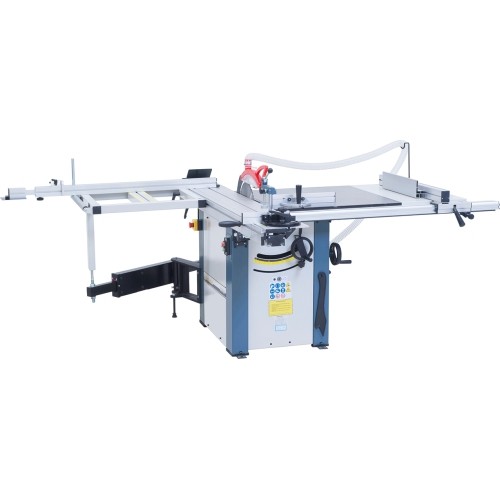

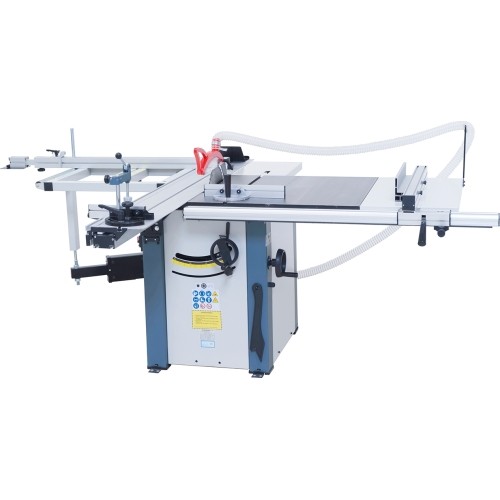

TK 315 P - 2000 / 400 V

1091099
€3,709.00
Tax included
Monthly payment from 95.04€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 258 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 258 kg.

Description

Properties

  • Important feature: Sawblade diameter 315 mm can be used when scoring unit is mounted

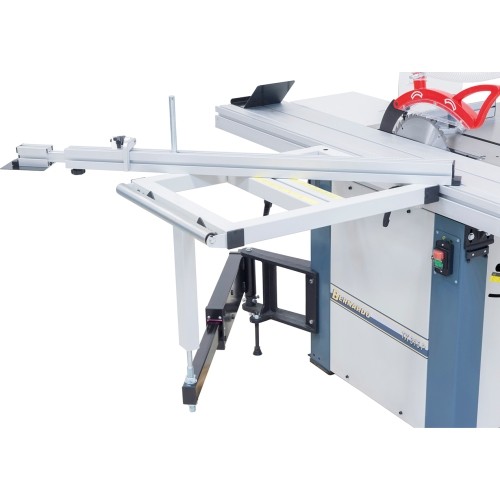

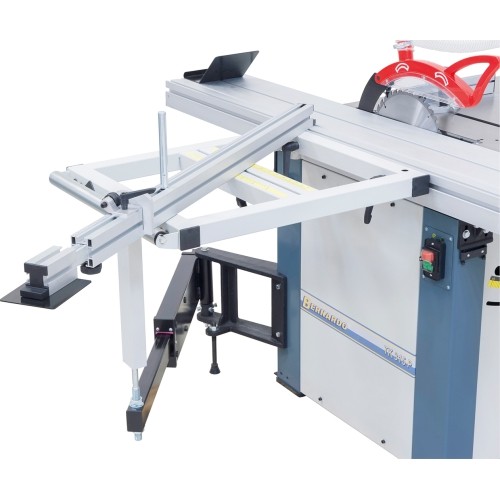

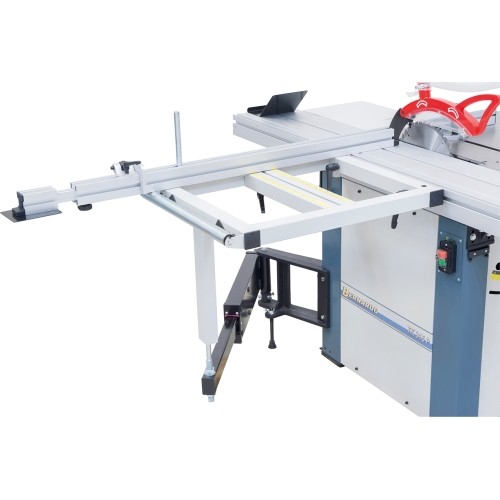

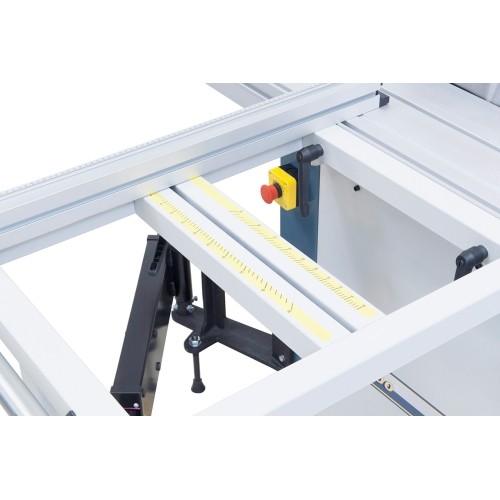

  • Solid square table with roller and telescopic arm guarantee high stability
  • Anodized aluminium sliding table available in three lengths
  • Powerful drive motor for constant cutting speed, even at cutting height of 100 mm

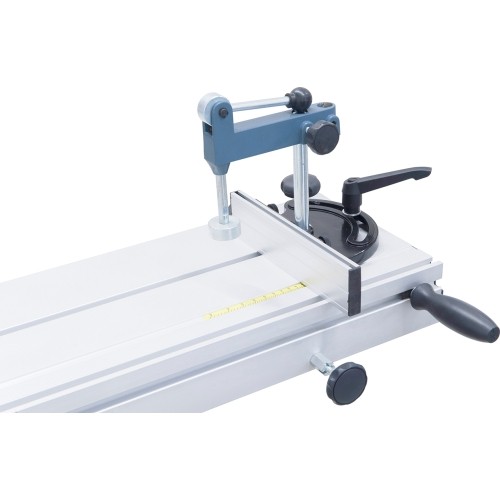

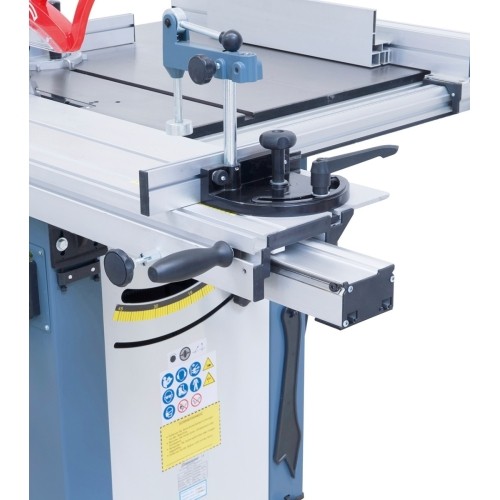

  • Mitre fence and downholder can be moved along entire table length
  • Amply sized work table and table extensions for cutting width up to 1240 mm come standard

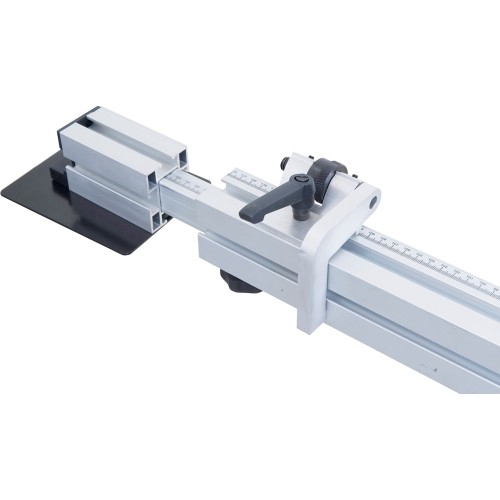

  • Extractable telescopic fence (up to 2260 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º

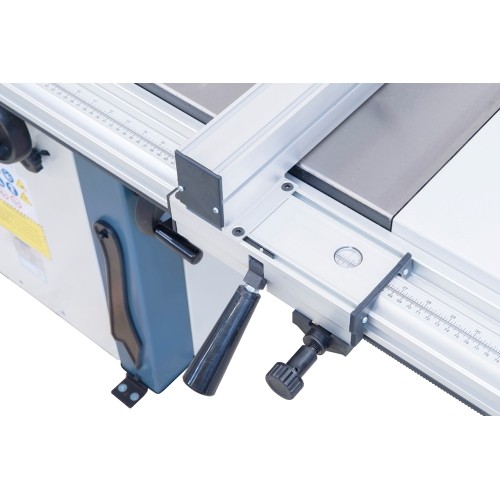

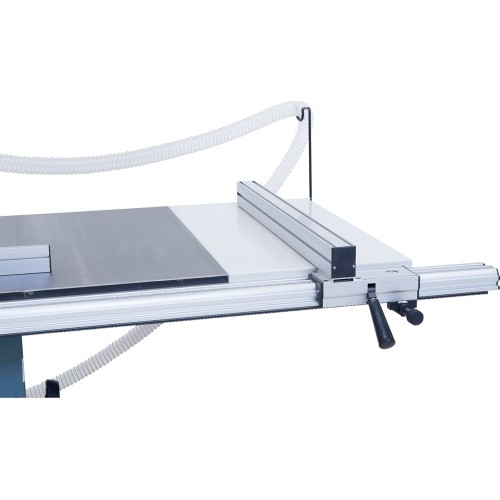

  • Aluminium parallel fence with micrometric fine adjustment and integrated magnifying glass
  • Solid saw unit guarantees precise work, free from vibrations

Standard accessories

  • Carbide sawblade 315 x 3,0 x 30 mm / 40T
  • Scoring sawblade 90 x 3,0 x 20 mm / 12T

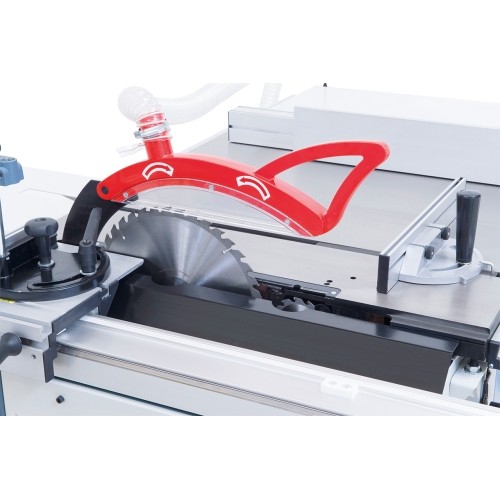

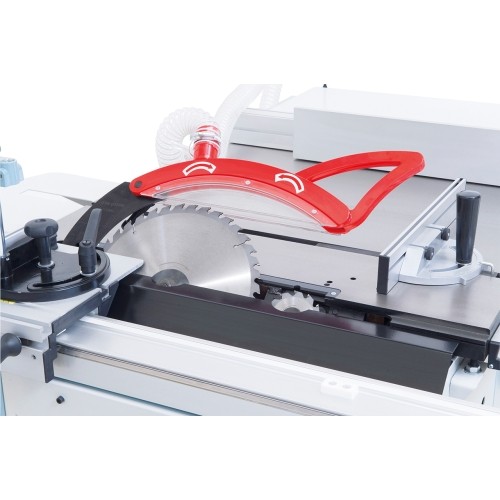

  • Protective cover with dust extraction outlet
  • Connector tube with Y-piece
  • Mitre fence with eccentric holder
  • Mitre fence
  • End stop
  • Table extension
  • Table enlargement
  • Extractable telescopic fence
  • Stop with fine adjustment
  • Square table with roller
  • Push stick
  • Tools
