WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
650 kg
Machine dimension (W x D x H)
2660 x 3460 x 1520 mm
Motor power output S1 100%
4,0 kW (5,5 HP)
Motor power input S6 40%
5,5 KW (7,5 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table size
935 x 620 mm
Table height
850 mm
Table extension
600 x 615 mm
Cutting length
2500 mm
Table enlargement
900 x 600 mm
Sliding table
2500 x 370 mm
Max. sawblade diameter
315 x 30 mm
Max. cutting height 90° / 45°
90 / 65 mm
Cutting width on rip fence
1295 mm
Speed main sawblade
4000 / 6000 rpm
Speed scoring sawblade
8000 rpm
Scoring sawblade
120 x 20 mm
Square table with roll
1210 x 860 mm
Motor scoring unit
0,75 kW

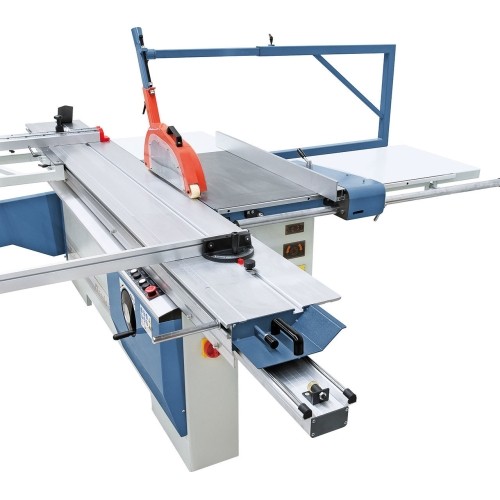

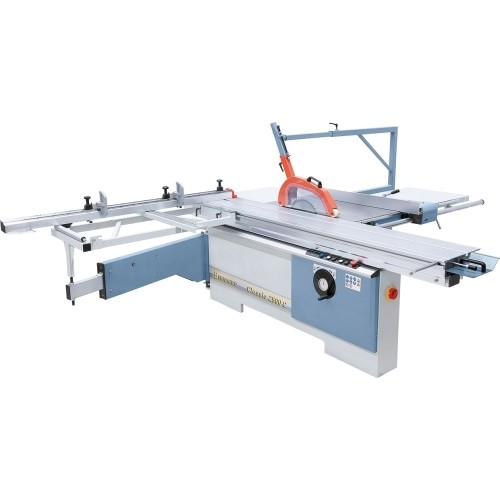

Classic 2500 C

1091832
€6,059.00
Tax included
Monthly payment from 148.79€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 650 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 650 kg.

Description

Properties

  • Aluminium sliding table features hardened guide rails
  • Table extension and enlargement for supporting large panels come standard

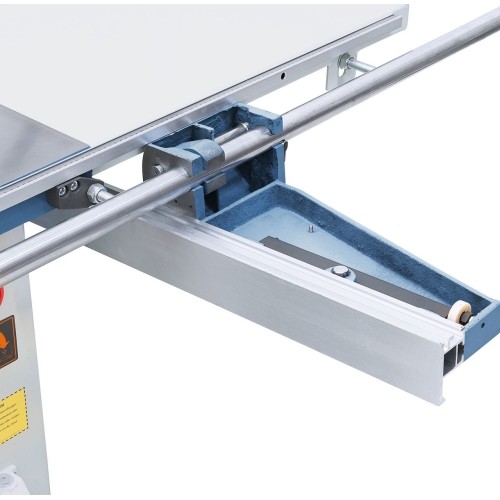

  • Solid square table for machining of large, heavy panels without needing extra support
  • Powerful drive motor guarantees optimal cutting capacity even at continuous operation

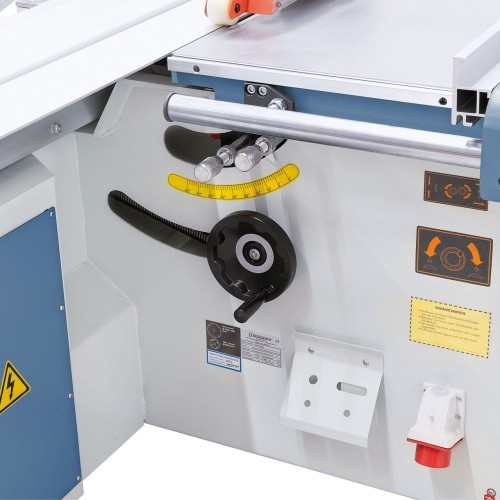

  • User-friendly read of set angles directly at handwheel

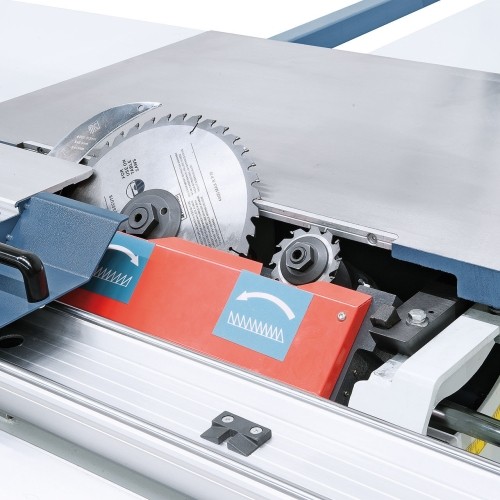

  • Scoring unit with independent motor comes standard

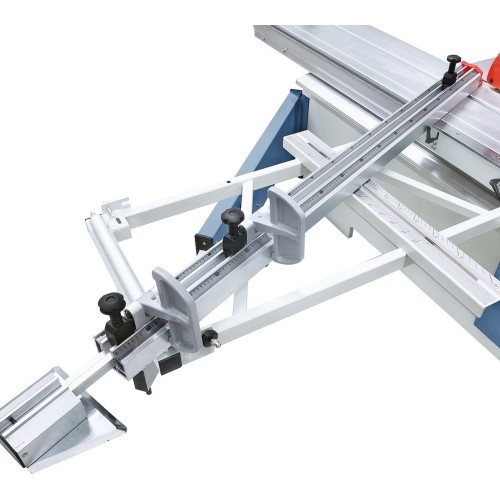

  • Extractable telescopic fence (up to 3100 mm), mountable at front and rear of square table
  • Solid saw unit guarantees precise processing, free from vibrations
  • Torsion-free machine body is a combination of steel and grey cast-iron

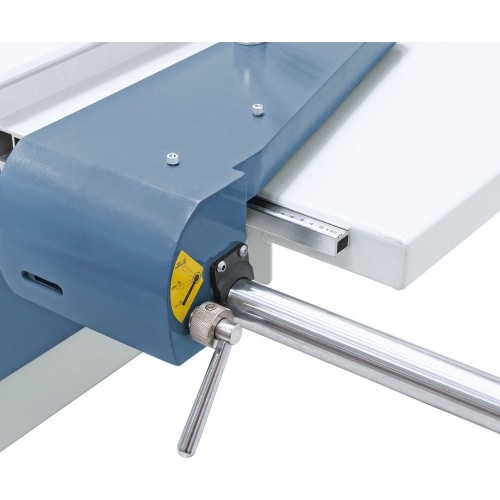

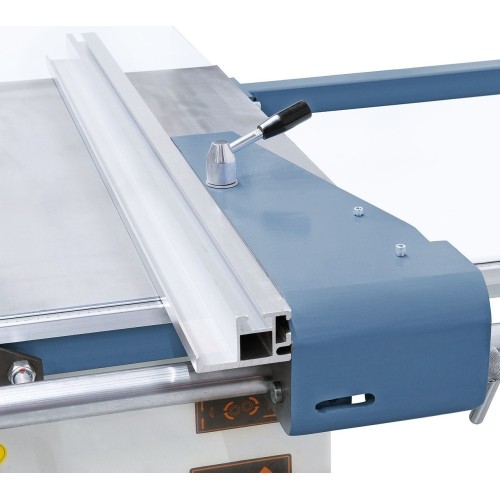

  • Parallel fence with solid 40 mm round rod guide can be tilted away

Standard accessories

  • Protective cover with infeed roller
  • Mitre fence
  • End stop
  • Table extension
  • Extractable telescopic fence
  • Longitudinal stop
  • Square table with roller
  • Push stick
  • Scoring unit with independent motor
  • Tools
