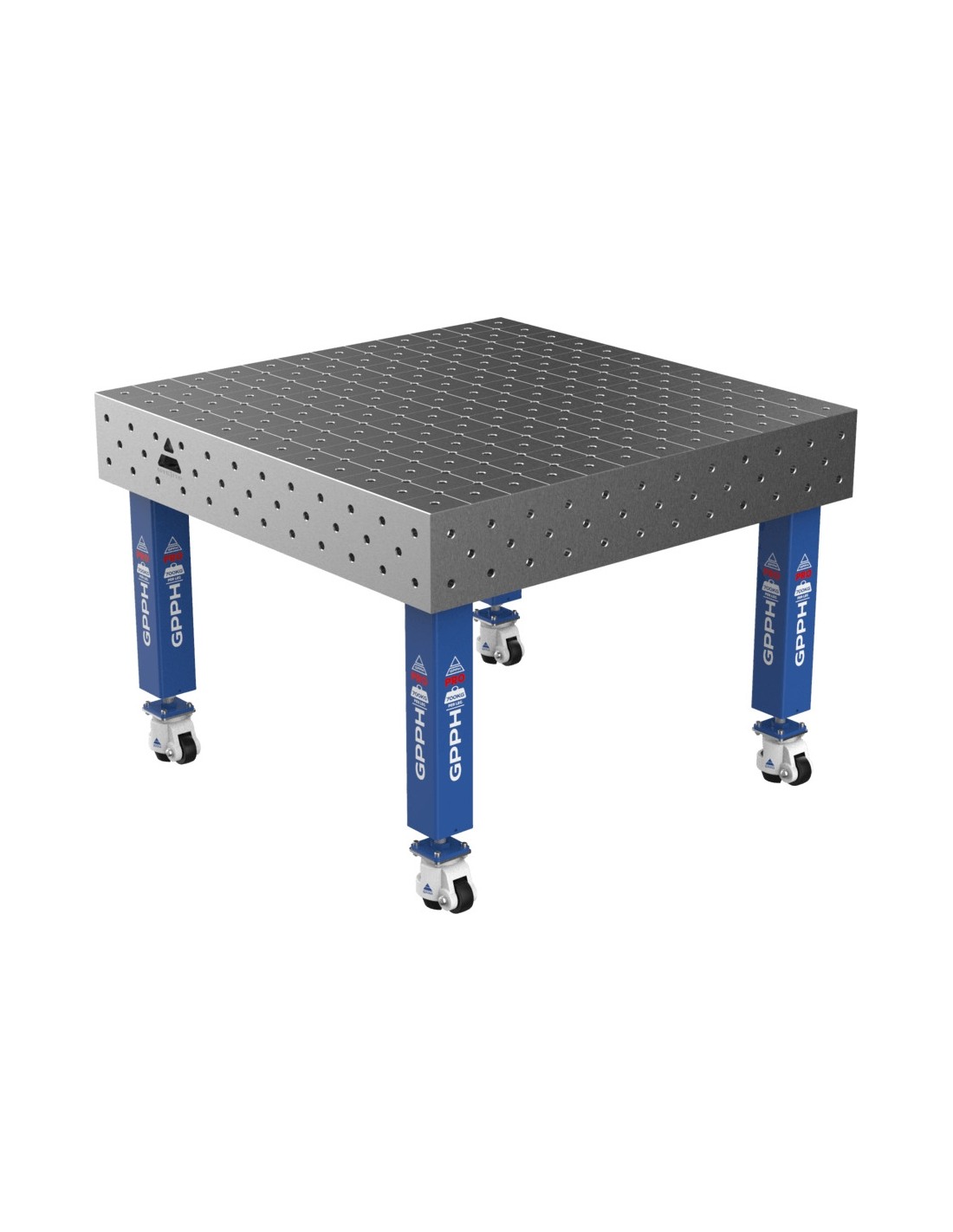

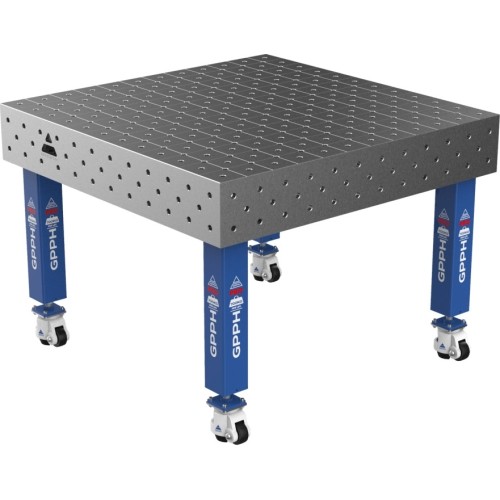

Welding table PRO 15 mm - 1200x1200mm

Use Professional Welding Tables wherever you need precision while welding. They are ideal for both manual and robotic welding, helping you build accurately without unnecessary rework.

They enable ergonomic, fast work with consistent repeatability of your assemblies.

A welding table must be flat. PRO tabletops, 15 mm thick, feature dense ribbing for a perfectly flat working surface. A 1000×600 mm table has 1 longitudinal rib and 2 lengthwise ribs. The massive, rigid substructure of the top ensures maximum stability in use and protects against deformation. Flatness tolerance across the entire surface is ≤0.15 mm*.

You decide!

Milled and chamfered holes in the tabletop make it easy to mount and remove tooling thanks to precise fit, reducing tool wear—you don’t need much force to assemble or disassemble. This execution is one of the best solutions on the welding table market. Hole tolerance is ±0.05 mm.

Engraved scale on the tabletop forms a 100×100 mm grid of vertical and horizontal lines. It serves as a reference when laying out structures and positioning tools. With measuring tools you can set your assembly precisely to achieve the required dimension.

PRO welding table legs, made from 100×100 mm profile, provide a load capacity of 1000 kg per leg. For the 3000×1480 mm size with 8 legs, the maximum capacity is 8000 kg.

You can choose legs with a foot or with castor wheels—pick what works best for you.

Use PRO milled tooling with PRO series tables to assemble precise flat 2D and spatial 3D structures—in significantly less time.

*provided the table is correctly levelled.
