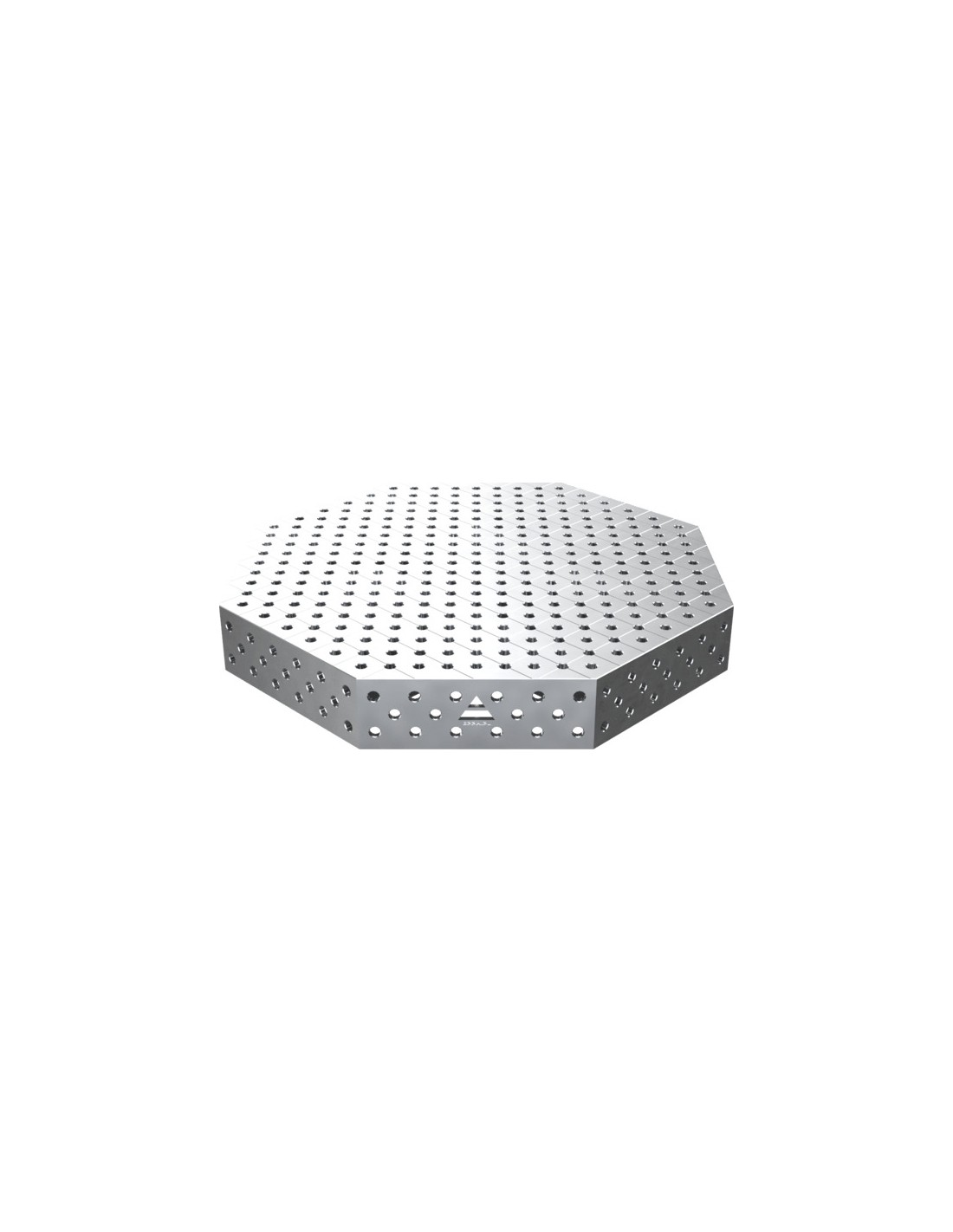

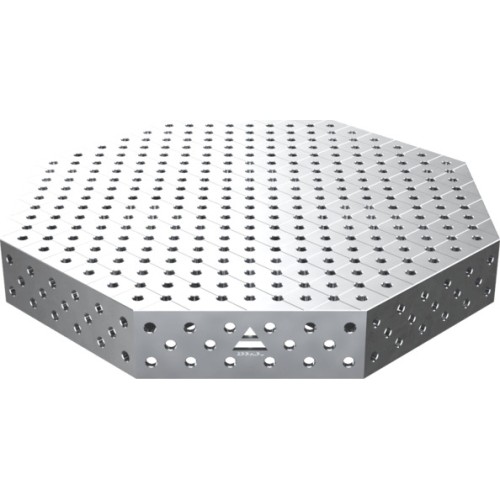

Octagonal welding table OCT INOX 1000×1000 mm - 1400x1400mm

OCT octagonal welding tables are essential tools in production, especially where automation and accuracy are a priority. Robotic welding and the OCT octagonal tables are used across industries such as automotive, aerospace, and steel structure manufacturing to achieve top quality and efficiency in welding processes. Octagon-shaped welding tabletops are an excellent choice for automated workflows. Made from high‑grade steel S355J2+N or stainless steel 1.4301 in accordance with ISO 2768-1, they provide a robust build and a precisely machined working surface—reinforced with ribs—with overall flatness tolerance ≤0.3 mm across the tabletop.

Thanks to the milled and chamfered holes in the octagonal tabletop, tool setup and removal are easier because the holes fit the tooling precisely. This also helps reduce tool wear, as little force is needed during assembly and disassembly. This execution is among the best solutions available on the welding table market. Hole manufacturing tolerance: ±0.05 mm.

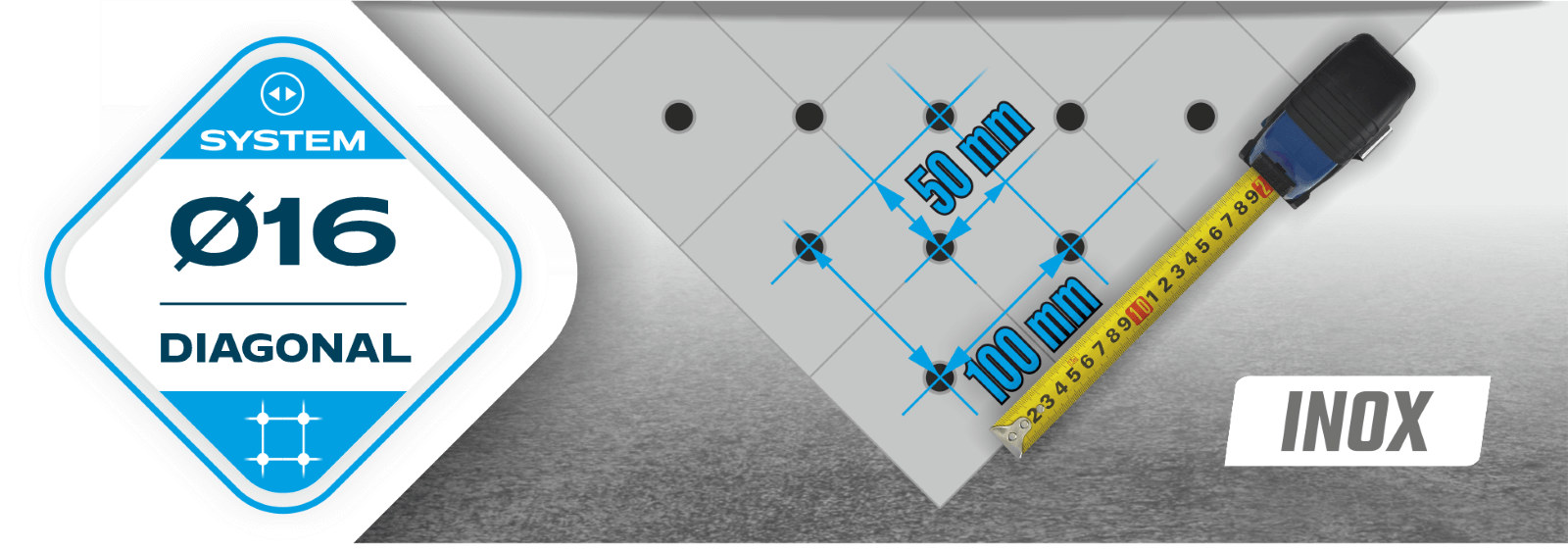

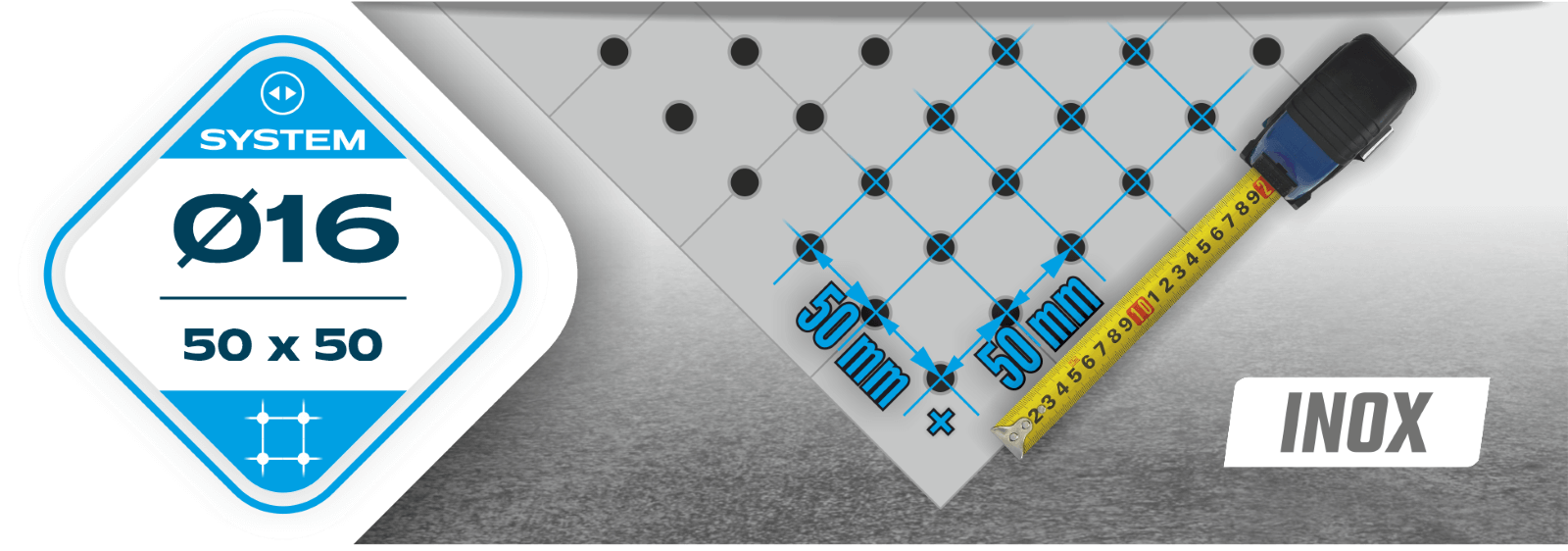

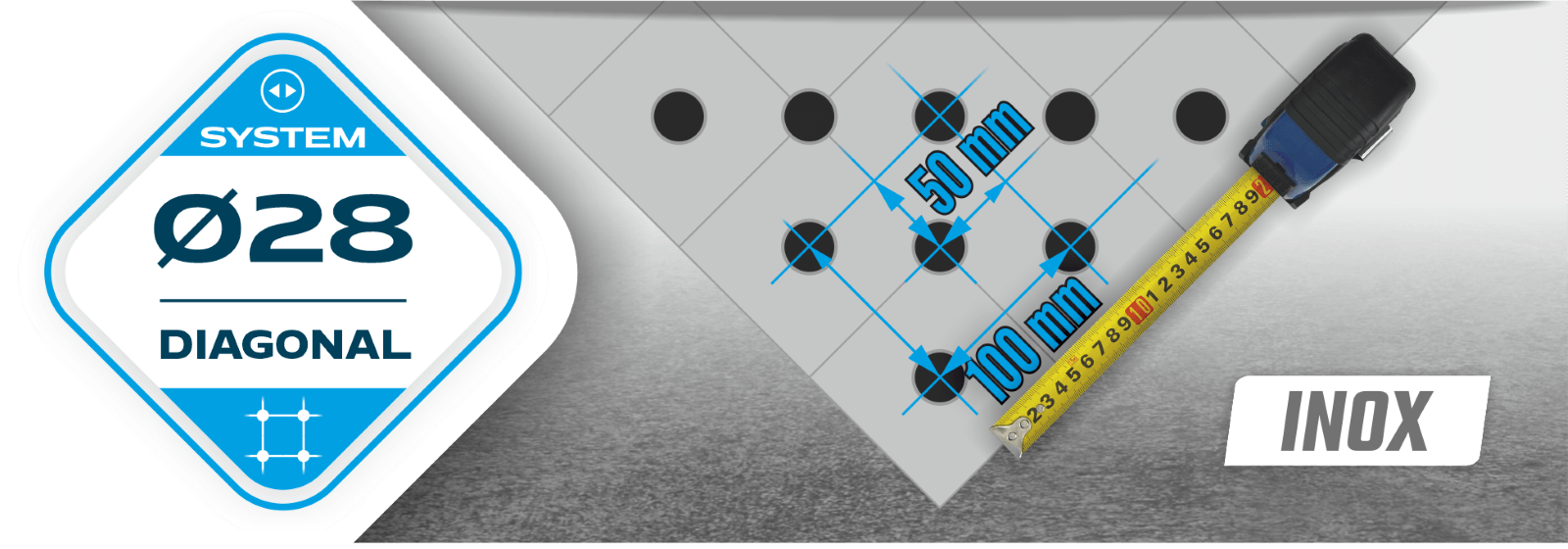

The engraved 100×100 mm grid on the tabletop consists of vertical and horizontal lines that serve as a reference for positioning workpieces and mounting tooling. With measuring tools, you can align structures precisely to achieve the required dimensions.

Use milled accessories with the OCT Octagonal Welding Tables to build both flat 2D and spatial 3D assemblies with high accuracy—and in significantly less time.
