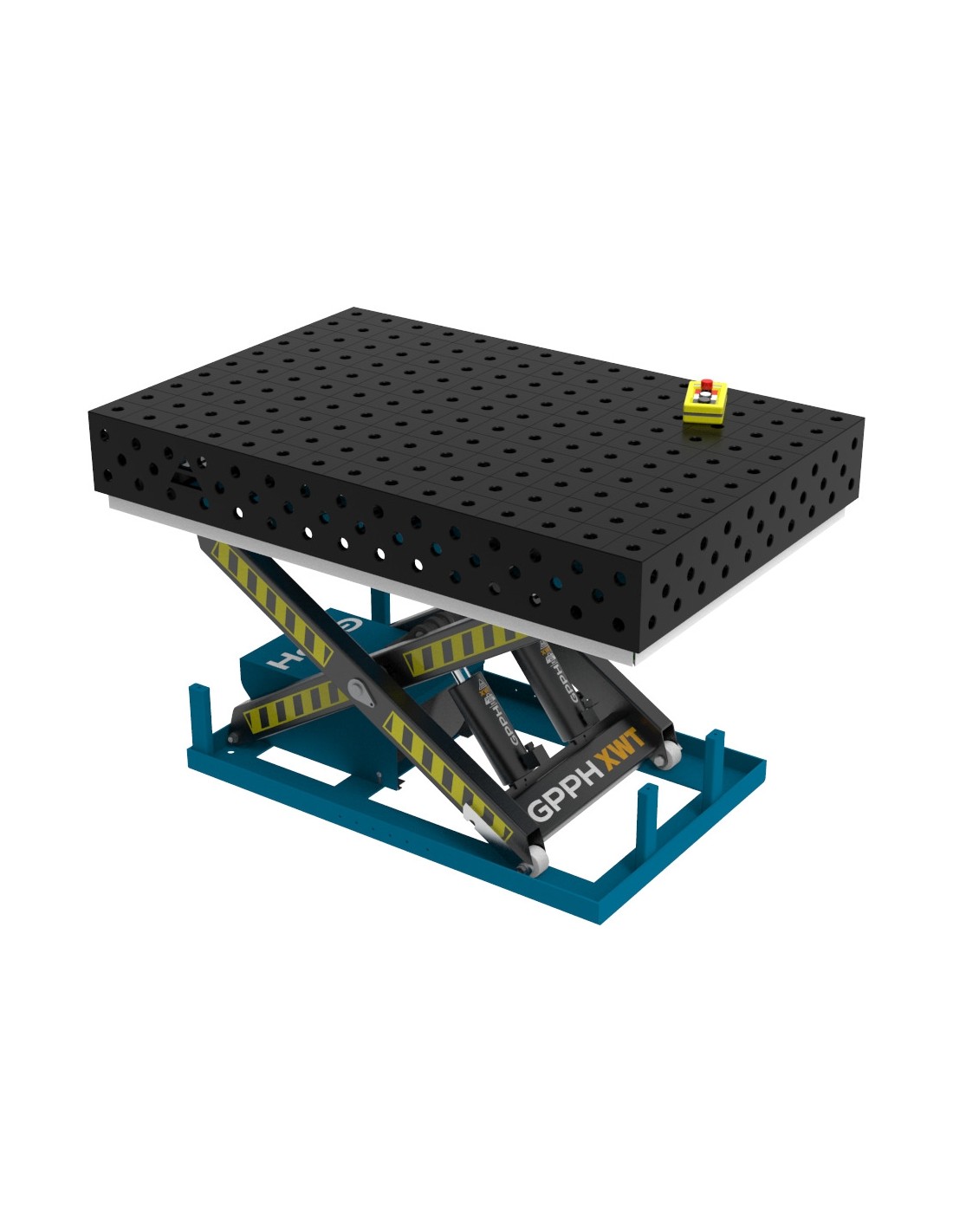

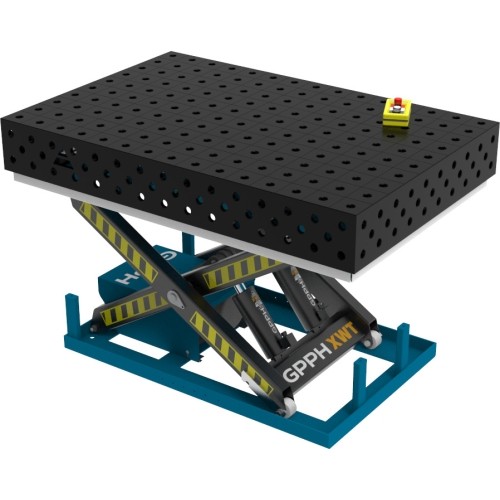

Welding table EXPERT 1500×1000 mm with hydraulic lifting system - 1500x1000mm

GPPH welding tables with a hydraulic lifting system are specialist tables with automatic worktop height adjustment. This allows you to quickly and easily set the ideal working height, ensuring high comfort during operation.

Welding tables with a hydraulic lifting system feature:

• an overload valve that prevents lifting loads that are too heavy;
• a safety valve that stops lowering if the hydraulic hoses rupture;
• limit switches that protect the user from crushing or injury.

The hydraulic-lift tables are available across five GPPH worktop series: PRO, PRO INOX, PLUS, PLUS INOX, and ECO, with each series offered in four size variants.

Every tabletop is available with 28 mm holes laid out in 100×100 mm grids as well as a diagonal grid.

A welding table must be flat! PRO tabletops, 15 mm thick, have dense ribbing, which ensures a perfectly flat working surface. A massive, rigid substructure guarantees maximum stability during use and protection against deformation. The table flatness tolerance over the entire surface is ≤ 0.3 mm.

Milled and chamfered holes in the tabletop make it easy to mount and remove tools thanks to precise hole-to-tool fit. This also reduces wear, as less force is needed for installation and removal. This execution is among the best solutions available on the welding table market. The hole manufacturing tolerance is ≤ 0.05 mm.

Technical parameters of the base with a hydraulic lifting system:

• Supply voltage: 400 V
• Speed: 1400 rpm
• Protection class: IP54
• Insulation class: F

Technical parameters

• Max load capacity [kg]: 1400
• Lifting time with load [s]: 20–25
• Max table height [mm]: 1150
• Min table height [mm]: 480
• Hoist base dimensions [mm]: 1220×785
• Motor power [kW]: 2.2
