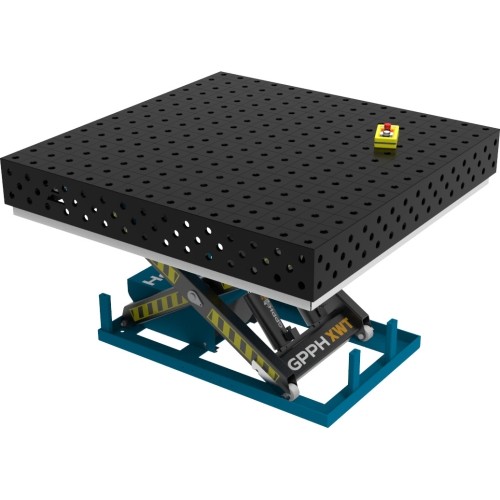

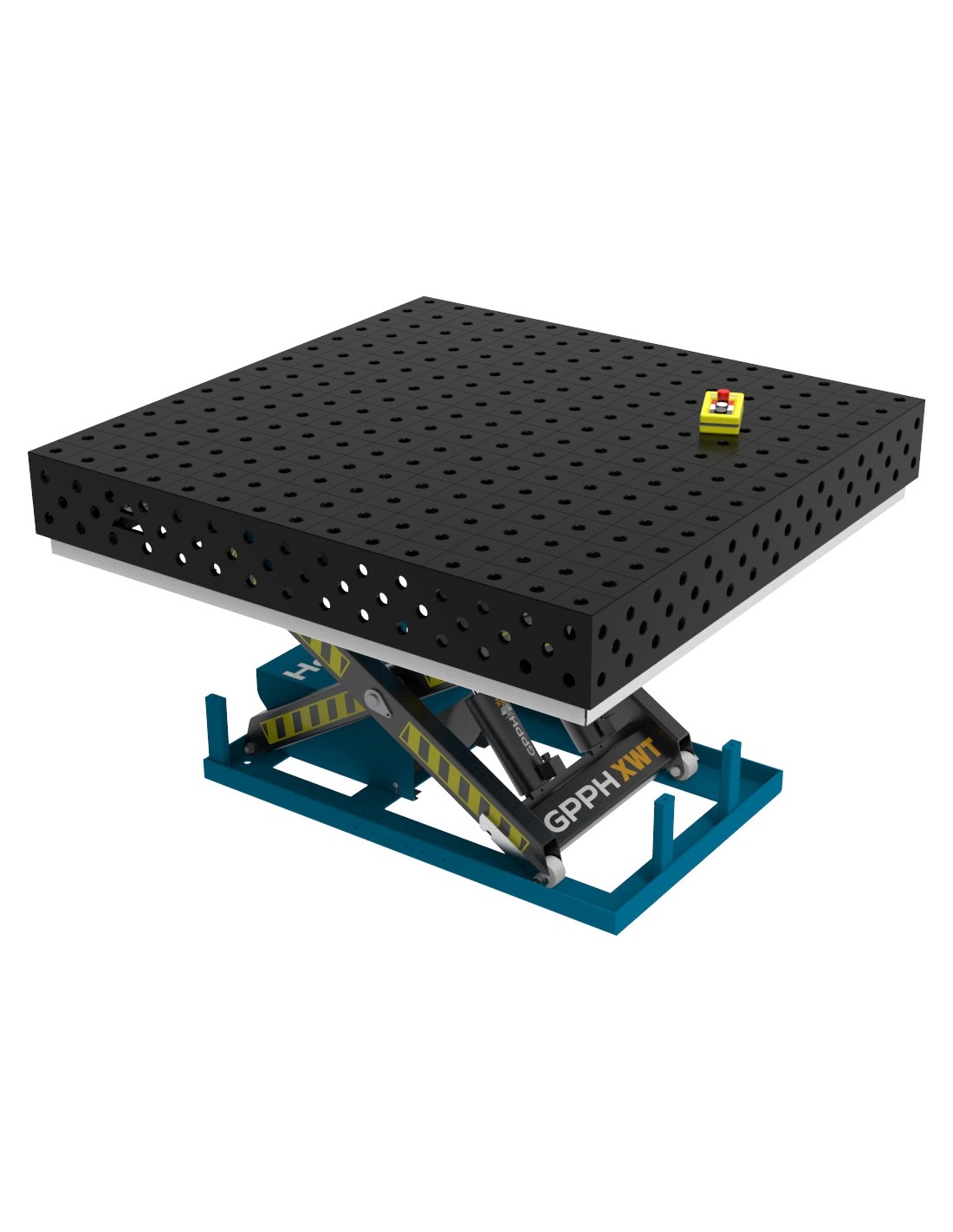

Welding table ECO 1500 × 1000 mm with hydraulic lifting system - 1500x1480mm

GPPH welding tables with a hydraulic lifting system are specialist benches with automatic worktop height adjustment. This lets you quickly and easily set the ideal working height, ensuring high comfort and efficiency.

Hydraulic lifting welding tables are equipped with:

• an overload valve that prevents lifting loads that are too heavy;
• a safety valve that stops lowering if hydraulic hoses rupture;
• limit switches to protect the user from crushing or injury.

The hydraulic lifting bases are available with GPPH welding tabletops in five series: PRO, PRO INOX, PLUS, PLUS INOX and ECO, each offered in four size variants.

Every tabletop is available with a Ø28 mm hole system in 100×100 mm and diagonal grids, as well as a Ø16 mm hole system in 50×50 mm, 100×100 mm and diagonal grids.

A welding table must be flat! ECO tabletops, 8 mm thick, feature a dense ribbing pattern for an exceptionally flat working surface. The table’s robust, rigid understructure guarantees maximum stability in use and protection against deformation. The flatness tolerance across the entire tabletop is ≤0.5 mm (less than or equal to 0.5 mm), and the hole manufacturing tolerance is ≤0.1 mm (less than or equal to 0.1 mm).

Technical parameters of the base with a hydraulic lifting system:

• Supply voltage: 400 V
• Speed: 1400 rpm
• Protection class: IP54
• Insulation class: F

Technical parameters

• Max load capacity [kg]: 1600
• Lifting time with load [s]: 20–25
• Max table height [mm]: 1150
• Min table height [mm]: 460
• Hoist base dimensions [mm]: 1220×785
• Motor power [kW]: 2.2
