- Table size
- 1500x1000mm
- Table flatness tolerance (over the entire surface)
- ≤0,3 [mm] (less than or equal to 0.3 mm)
- Series
- XWT (8mm, 12mm, 15mm, 25mm)
- Maximum load capacity [kg]
- 3400
- Maximum table height [mm]
- 1550
- Minimum table height [mm]
- 530
- Hoist base dimensions [mm]
- 1863×890
- Motor power [kW]
- 2.2
- Hole tolerance
- ±0,05 mm

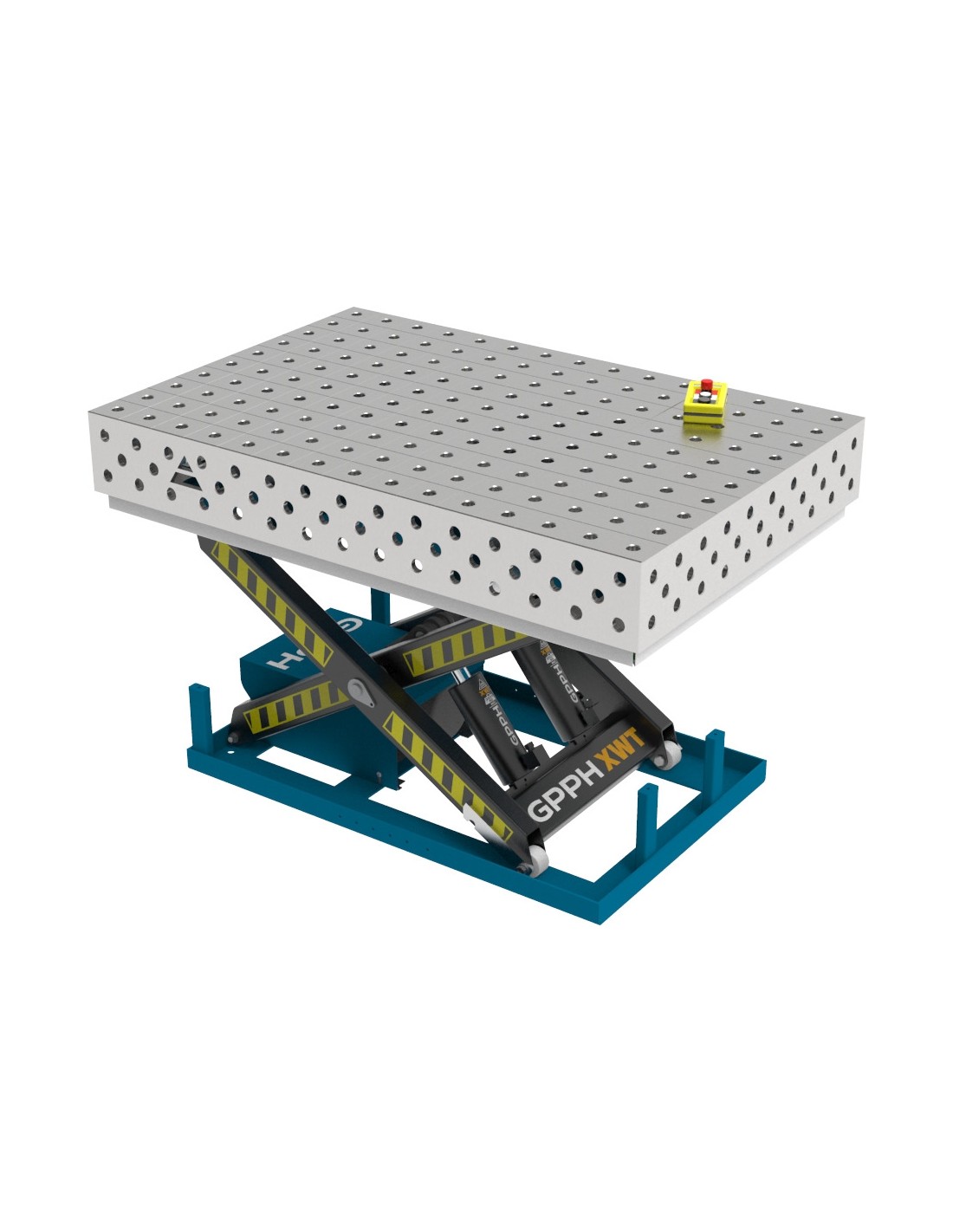

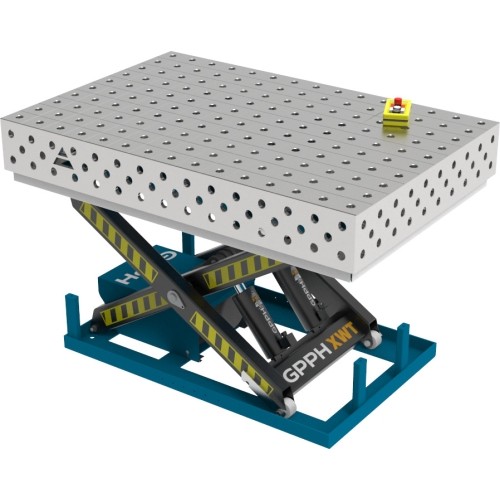

PLUS INOX Welding Table 1500×1000 mm with Hydraulic Lift System - 1500x1000mm
1551947
Price
€6,579.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, june 15 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 875 kg.
We will deliver the product to you via: 20+ w.d. Venipak
(€40.99) Weight: 875 kg.
Description
GPPH welding tables with a hydraulic lifting system are specialist tables with automatic worktop height adjustment. This lets you quickly and easily set the ideal working height, ensuring high comfort on the job.
Welding tables with a hydraulic lifting system feature:
- an overload valve preventing lifting of excessively heavy loads;
- a safety valve that stops lowering if hydraulic hoses rupture;
- limit switches that protect the user from crushing or injury.
Hydraulic-lift tables are available across the following GPPH welding table series:
- PRO, PLUS and ECO, made of S355J2+N steel;
- PRO INOX and PLUS INOX, made of stainless steel grade 1.4301.
Each series is available in 4 size variants.
Every worktop is offered with Ø 28 mm hole systems in 100×100 mm and diagonal grids, as well as Ø 16 mm hole systems in 50×50 mm, 100×100 mm and diagonal grids.
A welding table must be flat! PLUS worktops, 12 mm thick, feature dense ribbing, ensuring a perfectly flat working surface. A massive and rigid worktop substructure guarantees top stability in use and protection against deformation. The table flatness tolerance over the entire surface is ≤ 0.3 mm.
Machined and chamfered holes in the tabletop make tool installation and removal easy thanks to precise fit. This also reduces tool wear — no excessive force is needed. This execution is among the best solutions available on the welding table market. The hole manufacturing tolerance is ≤ 0.05 mm.
Stainless steel welding tables in the INOX series are made of stainless steel grade 1.4301, which has better electrical conductivity than ordinary steel — electrical resistivity at 20°C = 0.73 (Ω mm²)/m. Use them wherever precise welding of stainless steel is required.
These stainless steel welding tables offer high build quality and wear resistance. They are made of stainless steel with a high chromium content, ensuring durability and corrosion resistance. With GPPH INOX welding tables, there is no risk of iron precipitation causing corrosion spots when welding stainless steel structures.
Technical parameters of the base with hydraulic lifting system:
- Supply voltage: 400 V
- Speed: 1400 rpm
- Protection class: IP54
- Insulation class: F
Technical parameters
- Maximum load capacity [kg]: 1600
- Lifting time with load [s]: 20–25
- Maximum table height [mm]: 1150
- Minimum table height [mm]: 460
- Hoist base dimensions [mm]: 1220×785
- Motor power [kW]: 2.2
About GPPH
GPPH prekės ženklas įkurtas dar 2015 m. Lenkijoje. GPPH prekių asortimentas apima: aukštos kokybės suvirinimo stalus (tradicinius ir modulinius), prispaudėjus, kampainius, spaustuvus bei kitus priedus reikalingus sklandžiam ir efektyviam suvirinimo procesui.
Stalai bei įrankiai gaminami nuo-iki Lenkijos gamykloje. GPPH asortimentas yra puikus aukštos kokybės bei prieinamos kainos santykio pasirinkimas.
GPPH gaminami stalai iš kruopščiai parinkto plieno (S355J2 + N). Taip pat staluose yra skylių Ø28 sistema 100 x 100 mm su kuria yra suderinti visi GPPH priedai.
