- Table size
- 2400x1200mm
- Table flatness tolerance (over the entire surface)
- ≤0,3 [mm] (less than or equal to 0.3 mm)
- Engraved scale
- Yes, 100×100 mm grid

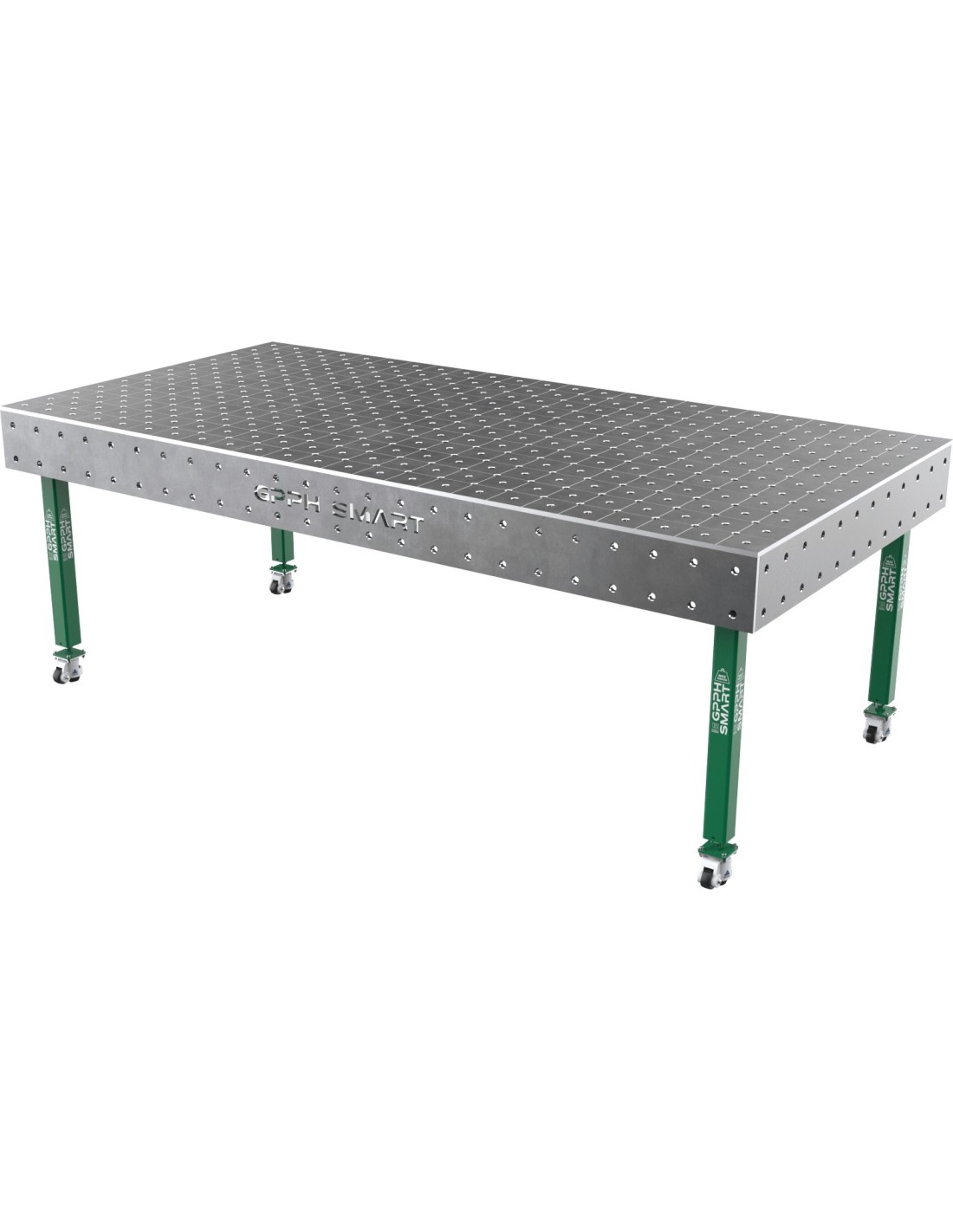

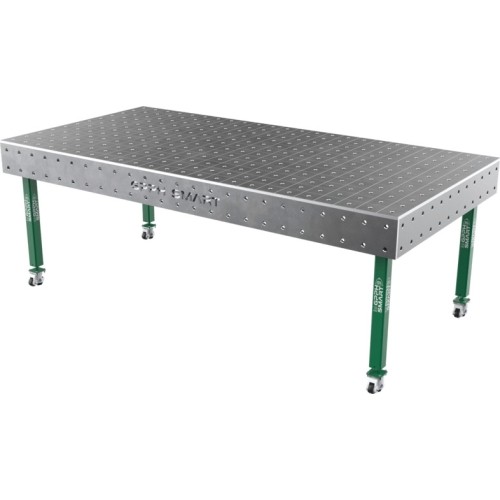

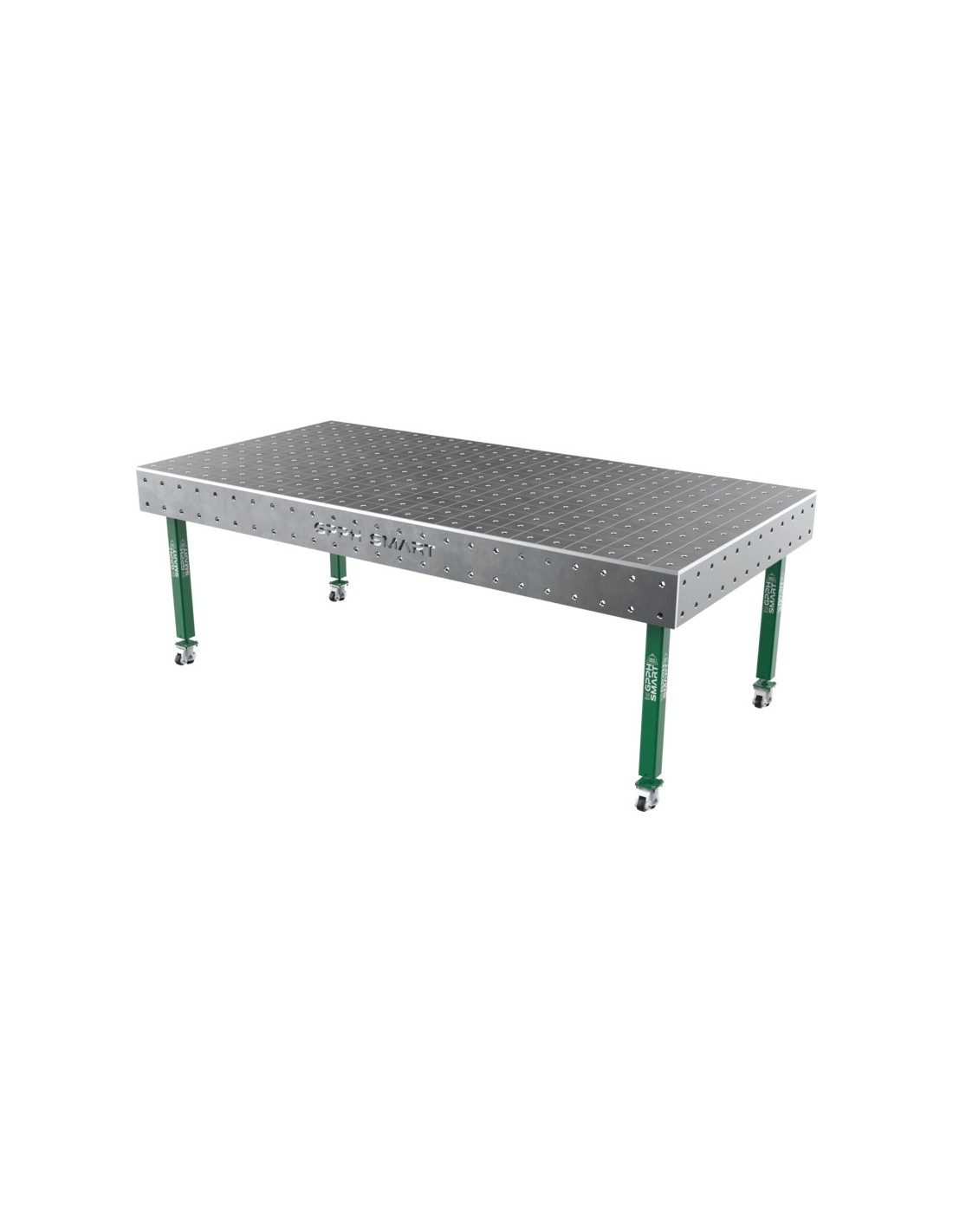

Welding table SMART - 2400x1200mm
1551565
Price
€2,106.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, june 15 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 846 kg.
We will deliver the product to you via: 20+ w.d. Venipak
(€40.99) Weight: 846 kg.
Description
The GPPH SMART budget line of welding tables was created for users who need solid, functional solutions without the advanced features of professional welding tables. GPPH SMART offers an ideal balance of performance and affordability, perfectly suited to hobbyists and smaller workshops.
 |  |

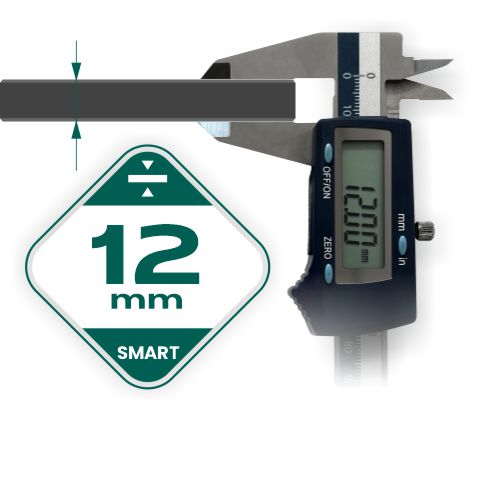

This description refers to the product: GPPH SMART Welding Table 12 mm, 1500×1000 mm, 100×100 mm grid – the most universal system.
 |
 |
Machined and chamfered holes in the tabletop make it easy to mount and remove tools thanks to precise fit. This also reduces wear—you won’t need excessive force for assembly or disassembly. This execution is among the best available on the welding table market. The hole manufacturing tolerance is ±0.05 mm.

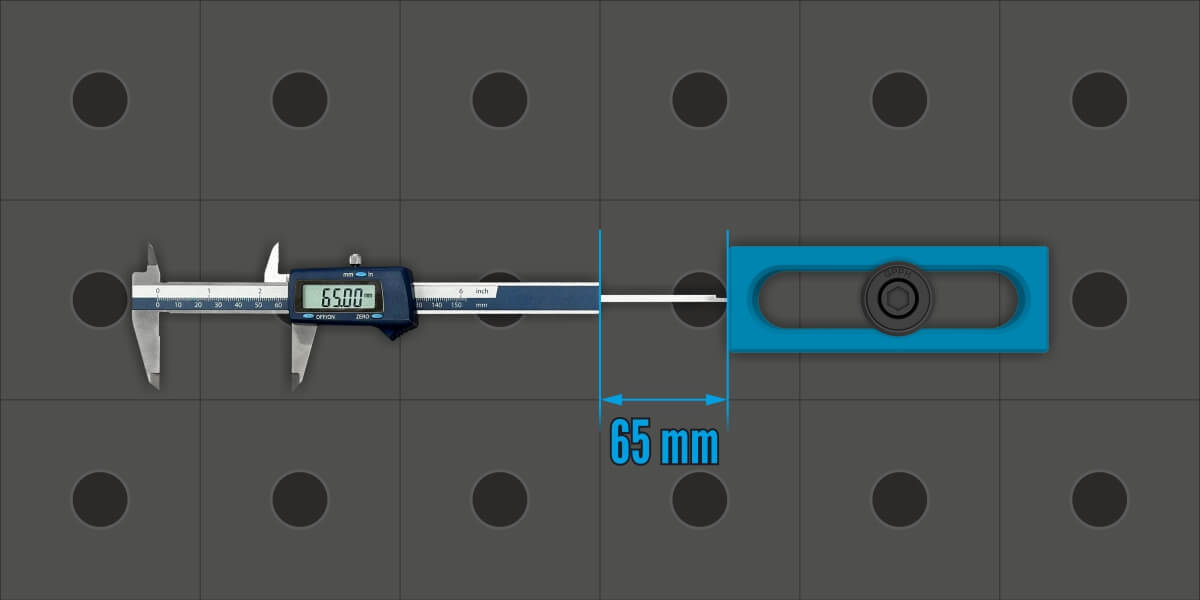

The engraved scale on the tabletop provides vertical and horizontal lines in a 100×100 mm grid. It serves as a reference when arranging structures and mounting tools. With measuring tools you can position your workpiece precisely to achieve the required dimensions.
Load capacity of GPPH SMART 15: 2500 kg (SMART 12 – 2000 kg).
Differences compared to traditional GPPH welding tables
Unlike our traditional professional tables designed for the most demanding applications, GPPH SMART focuses on core functionality and ease of use. Professional GPPH tables offer higher durability and advanced configuration options needed in intensive industrial conditions. In addition, traditional professional GPPH tables have denser tabletop ribbing and a different leg mounting design. They also differ in leg profile and in the number of holes in the side plates—traditional tables have 3 rows of holes, while the GPPH SMART line has 2 rows.
The color of the legs in the budget GPPH SMART welding tables also differs from standard GPPH products.
The SMART line responds to market demand for lower-cost solutions.
Ribbing comparison

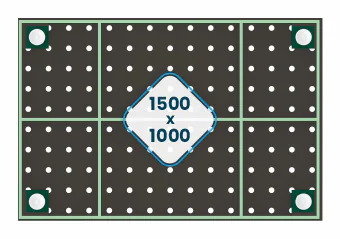

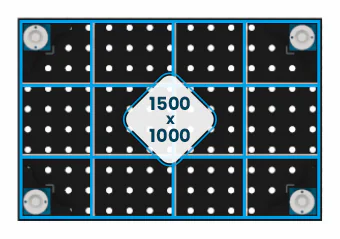

 Ribbing of a traditional welding table 1500×1000 mm | Ribbing of a SMART welding table 1500×1000 mm |
Technical parameters comparison
| Series of traditional welding tables GPPH PLUS | Series of budget welding tables GPPH SMART 12 mm |
|---|---|
| Flatness tolerance: ≤0.15 mm over the entire tabletop* | Flatness tolerance: ≤0.3 mm over the entire tabletop* |
| 3 rows of holes on the side wall | 2 rows of holes on the side wall |
| Hole manufacturing tolerance: ±0.05 mm | |
| Machined and chamfered holes | |
| Chamfered holes on the underside | |
| Machined tabletop edges | |
| Leg profile: 80×80×4 mm | Leg profile: 60×60×4 mm |
| Load capacity: 750 kg/leg max. table capacity with 4 legs 3000 kg | Load capacity: max. 2000 kg |
| Number of size variants: 10 | Number of size variants: 5 |
| Side wall deviation tolerance: ±0.3° | Side wall deviation tolerance: ±0.35° |
| Available hole grids: 100×100 mm, 50×50 mm, diagonal | Available hole grids: 100×100 mm, diagonal |
* provided the table is properly leveled.
Leg mounting comparison

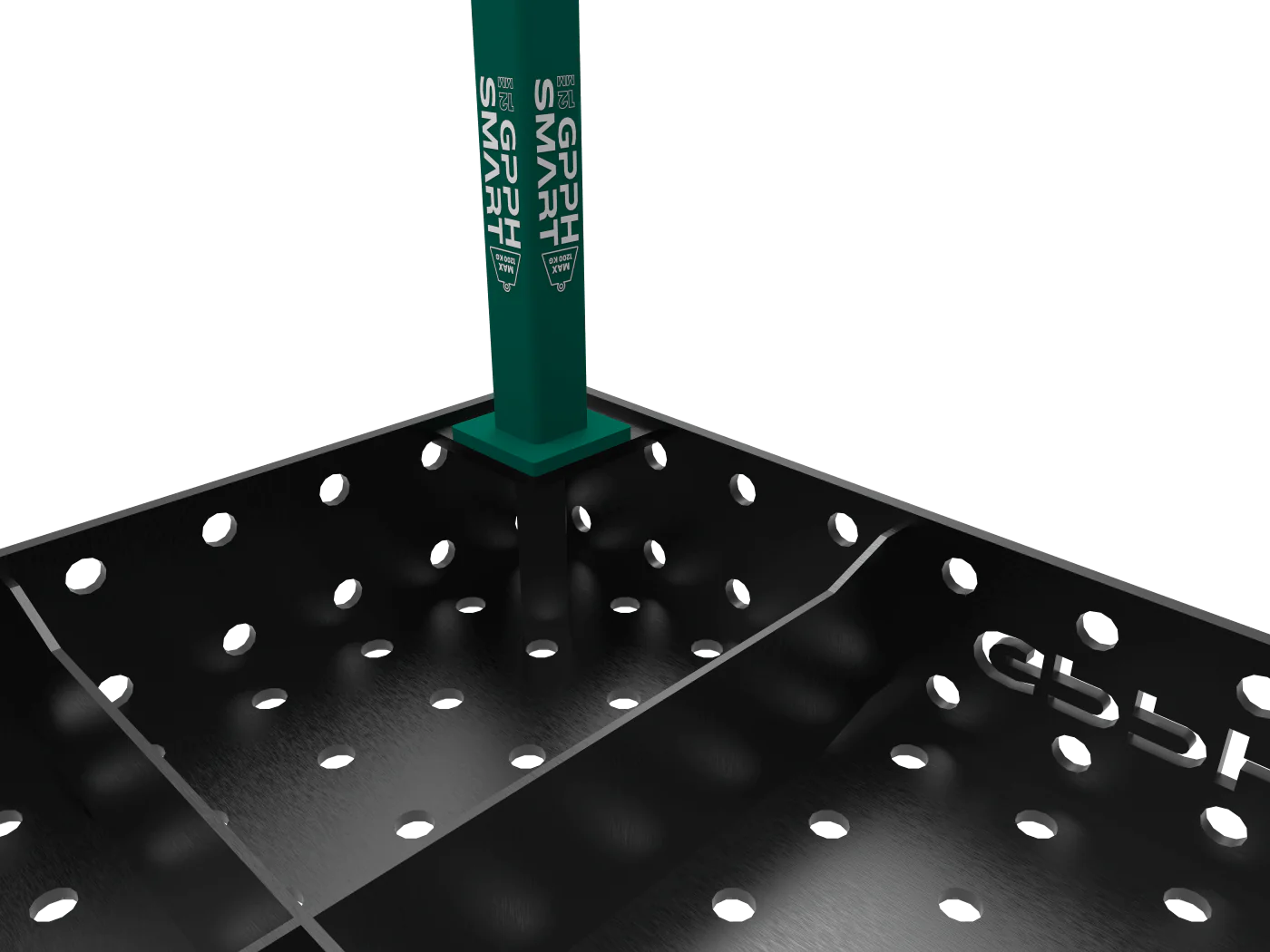

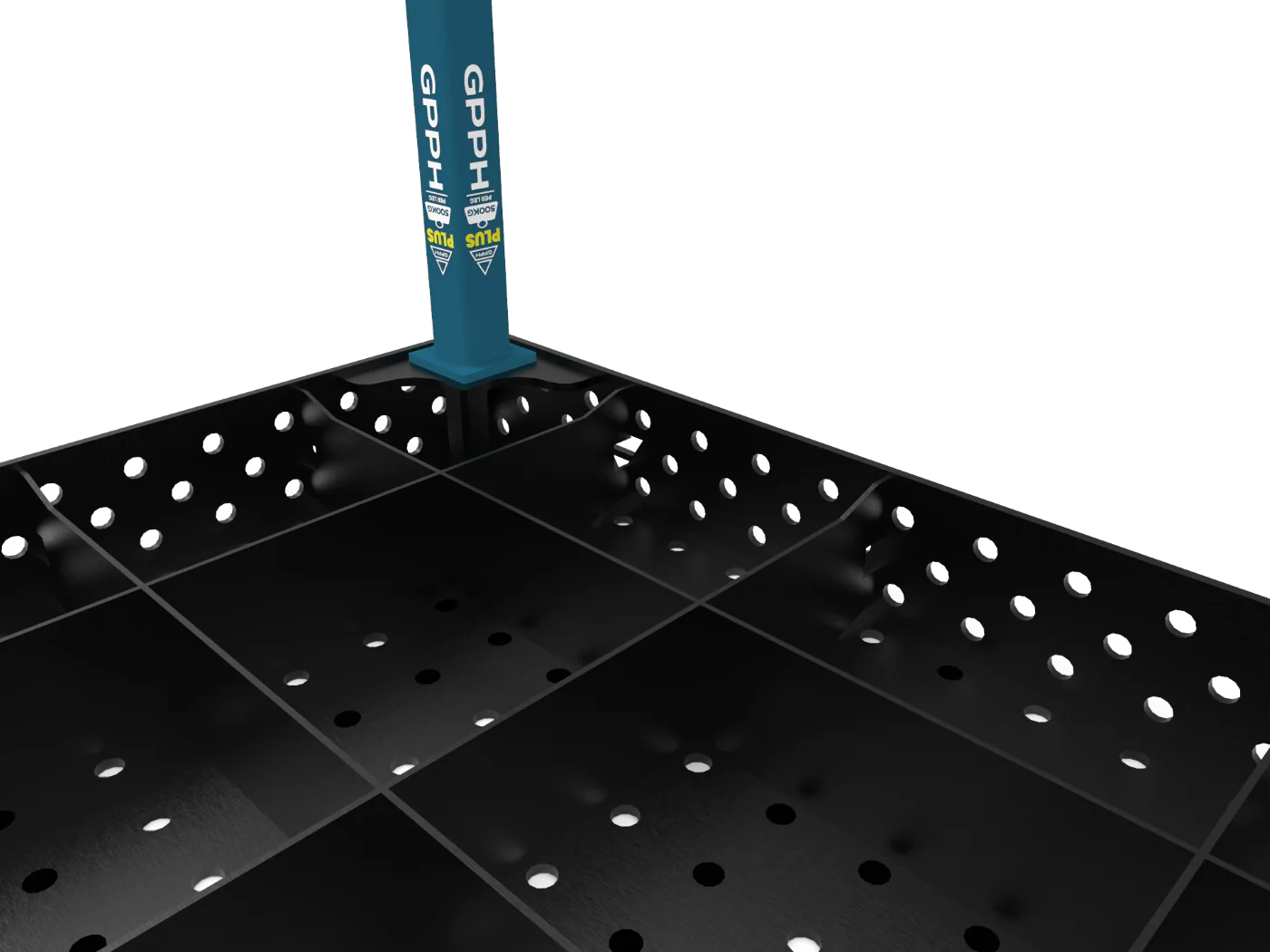

 Leg mounting in a SMART welding table |  Leg mounting in a traditional welding table |
Side wall hole comparison

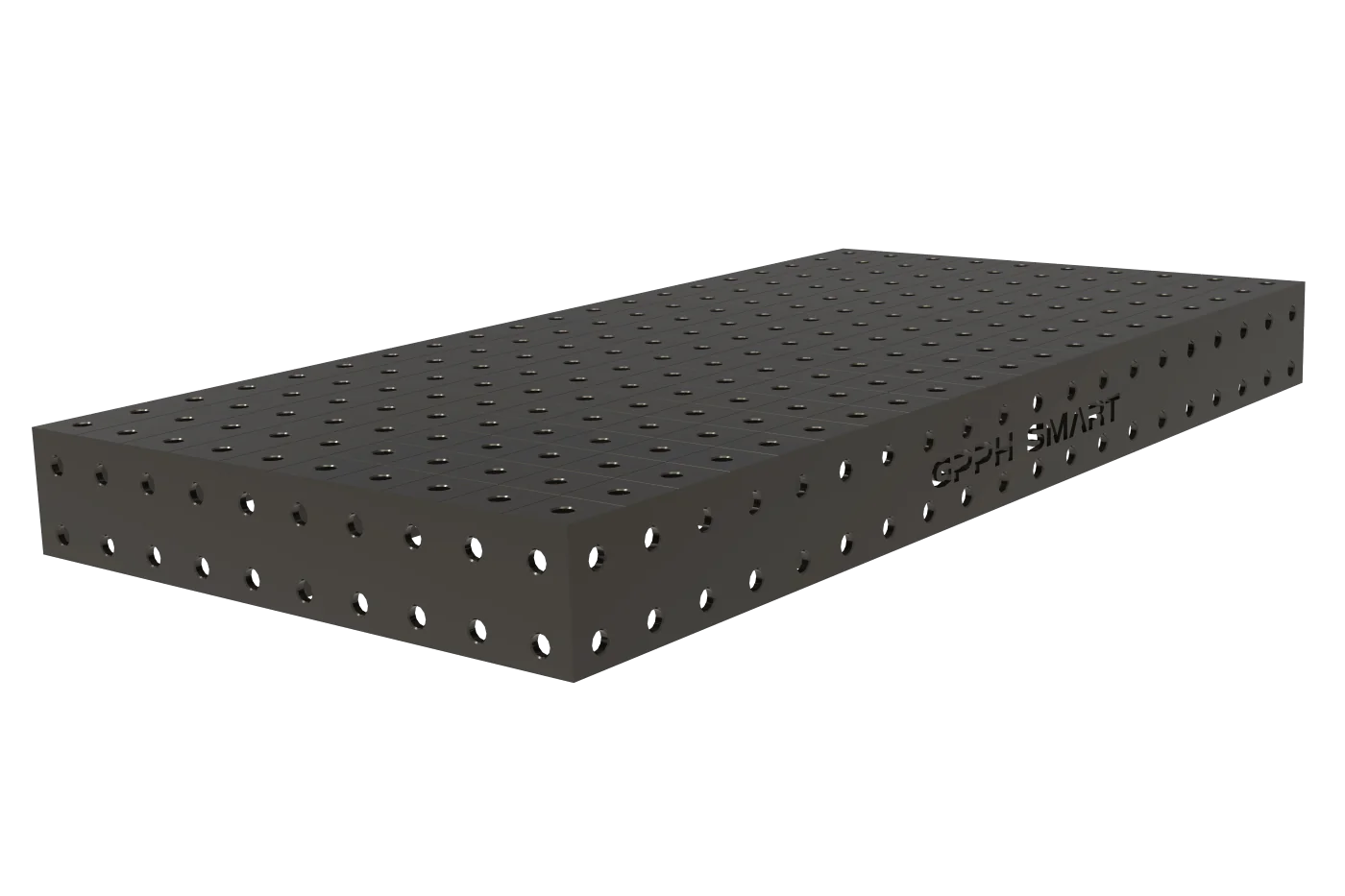

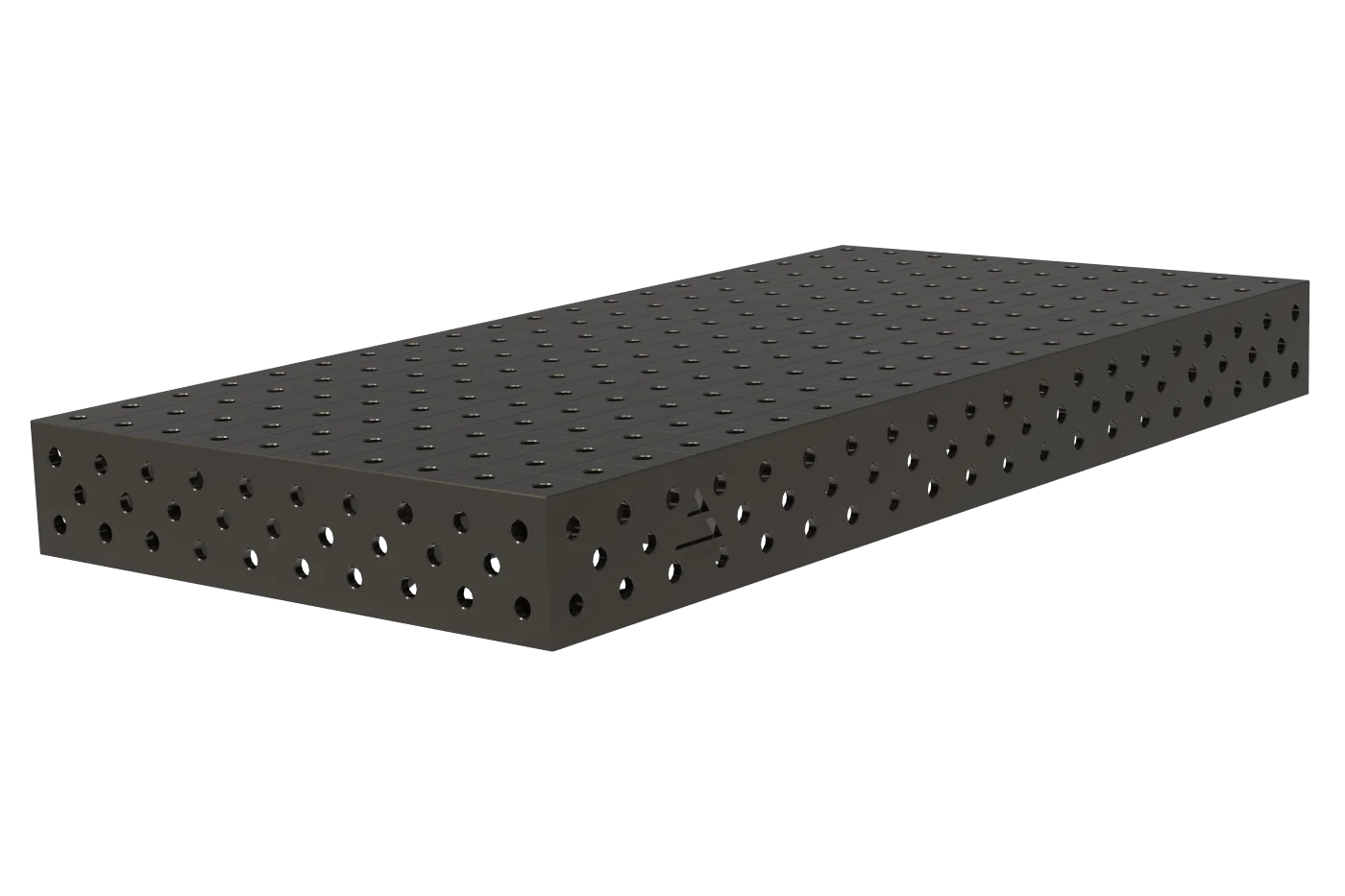

 Top and side walls in a SMART welding table |  Top and side walls in a traditional welding table |
About GPPH
GPPH prekės ženklas įkurtas dar 2015 m. Lenkijoje. GPPH prekių asortimentas apima: aukštos kokybės suvirinimo stalus (tradicinius ir modulinius), prispaudėjus, kampainius, spaustuvus bei kitus priedus reikalingus sklandžiam ir efektyviam suvirinimo procesui.
Stalai bei įrankiai gaminami nuo-iki Lenkijos gamykloje. GPPH asortimentas yra puikus aukštos kokybės bei prieinamos kainos santykio pasirinkimas.
GPPH gaminami stalai iš kruopščiai parinkto plieno (S355J2 + N). Taip pat staluose yra skylių Ø28 sistema 100 x 100 mm su kuria yra suderinti visi GPPH priedai.
