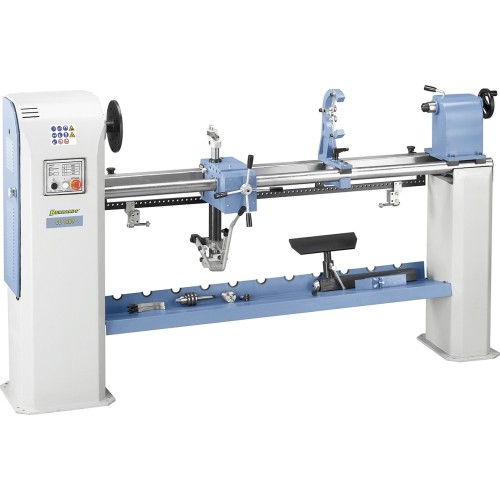

Tekinimo staklės su kopijavimo įrenginiu Bernardo CL 1500 - 400V

WARRANTY

Distance between centers: 1500 mm
Taper of tailstock sleeve: MT 2
Travel of tailstock sleeve: 100 mm
Weight approx.: 228 kg
Machine dimension (W x D x H): 2300 x 700 x 1170 mm
Motor power output S1 100%: 1,1 kW (1,5 HP)
Motor power input S6 40%: 1,5 kW (2,0 HP)
Spindle speeds: 500 / 1000 / 1950 / 2800 rpm
Voltage: 400 V
- over guideway: 430 mm
- over support: 160 mm
- at copying*: 160 mm
Spindle thread: M 33 x 3,5 mm
Copying length: 1500 mm
Max. copying depth: 45 mm

Brand

Tekinimo staklės su kopijavimo įrenginiu Bernardo CL 1500 - 400V

Name: Tekinimo staklės su kopijavimo įrenginiu Bernardo CL 1500 - 400V
Brand: Bernardo
SKU: 1056427
Price: 3412 EUR
Availability: PreOrder

Reference 1056427

Price €3,412.00 Tax included

Stock Quantity:

In S01 store
not available

In S02 store
not available

In Supplier store
(5+ pcs)

Delivery terms:

NEMOKAMAI atsiimkite tuesday, april 8 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 228 kg.

Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 228 kg.

Description

Properties

The extensive range of accessories includes: 290 mm tool rest, 200 mm face plate, live centre and spore drive centre

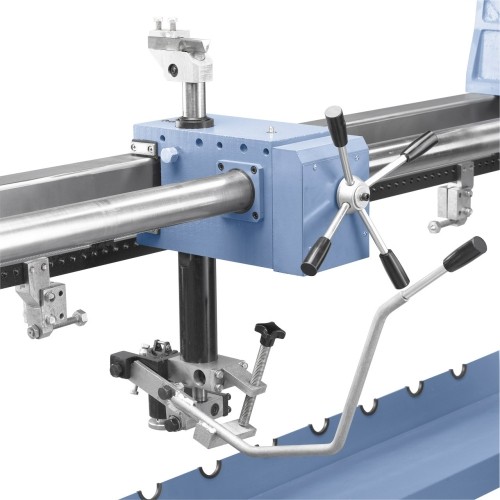

Copying device for copying of original parts or from templates
Tailstock sleeve features drilled passageway bore to process long workpieces
Powerful drive motor designed for challenging operations

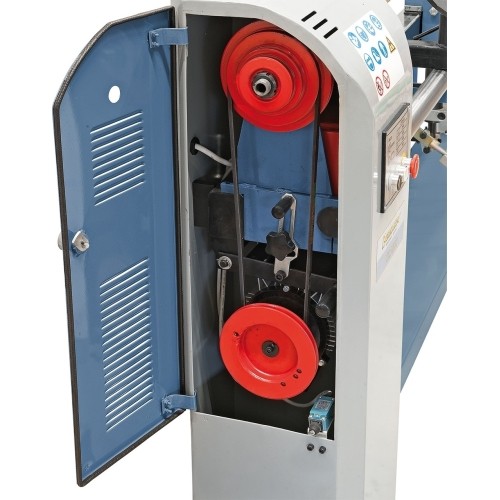

High-quality belt drive, featuring four speed settings, allows for optimal transmission
Solid, grey cast-iron construction allows for operating without vibrations
Ergonomically arranged switches and control elements on front of machine
Solid, precisely bedded spindle ensures high concentricity
Extensive range of accessories guarantees optimal price to performance ratio

Standard accessories

Copying device

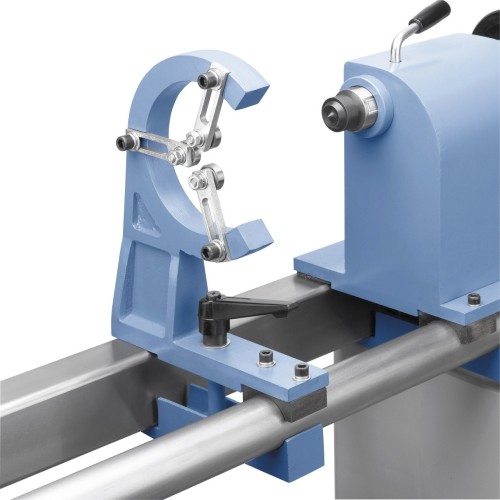

Steady rest

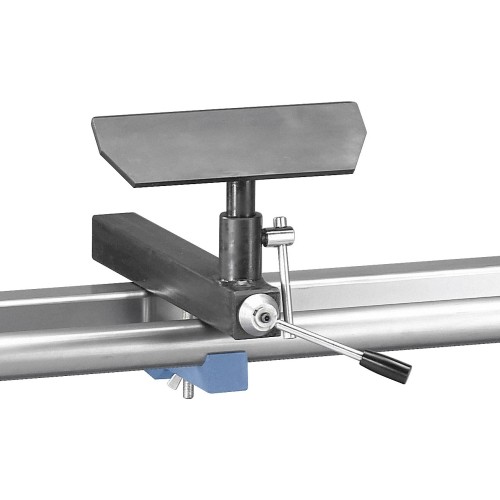

Tool rest 290 mm

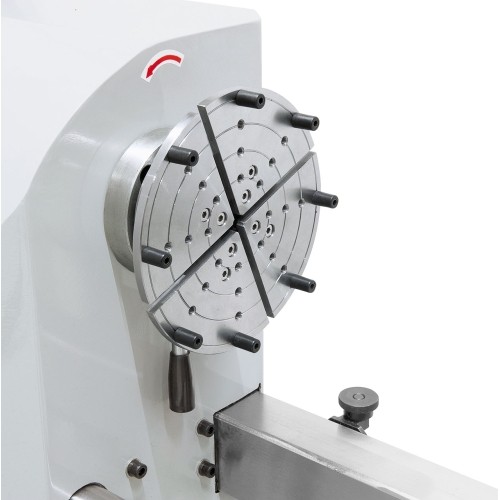

Face plate 200 mm
Live center MT 2
Spore drive center diam. 40 mm
Drill chuck 3 - 16 mm / B 16
Drill chuck arbor MT 2 - B 16
V- Cutter knife in HSS-quality

Technical specifications

Distance between centers	1500 mm
Working diameter
- over guideway	430 mm
- over support	160 mm
- at copying*	160 mm
Spindle speeds	500 / 1000 / 1950 / 2800 rpm
Spindle thread	M 33 x 3,5 mm

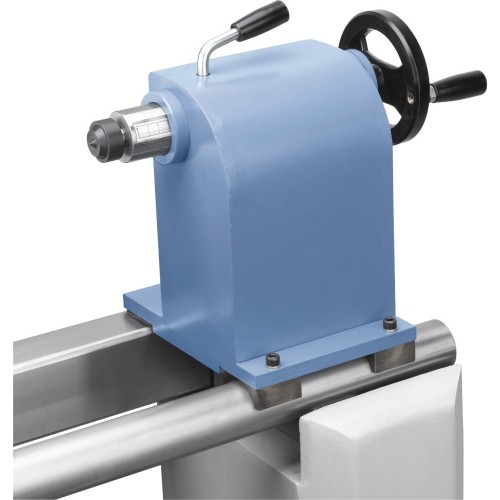

Tailstock
Taper of tailstock sleeve	MT 2
Travel of tailstock sleeve	100 mm
Copy attachment
Copying length	1500 mm
Max. copying depth	45 mm
Motor power output S1 100%	1,1 kW (1,5 HP)
Motor power input S6 40%	1,5 kW (2,0 HP)
Voltage	400 V
Machine dimension (W x D x H)	2300 x 700 x 1170 mm
Weight approx.	228 kg

* to template
