Weight approx.
425 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Machine dimension (W x D x H)
2000 x 2900 x 1260 mm
Motor power output S1 100%
2,8 kW (3,8 HP)
3,0 kW (4,0 HP)
Motor power input S6 40%
3,9 kW (5,3 HP)
4,2 kW (5,7 HP)
Dust extraction outlet
95 mm
Table size
1300 x 380 mm
Table height
970 mm
Table extension
350 x 310 mm
Cutting length
2000 mm
Height adjustment
140 mm
Table enlargement
800 x 880 mm
Sliding table
2000 x 270 mm
Max. sawblade diameter
315 x 30 mm
Max. cutting height 90° / 45°
100 / 80 mm
Cutting width on rip fence
1220 mm
Speed main sawblade
4500 rpm
Speed scoring sawblade
8500 rpm
Scoring sawblade
90 x 20 mm
Spindle diameter
30 mm
Table opening
200 mm
Working length of spindle
110 mm
Max. tool diameter
180 mm
Square table with roll
940 x 580 mm
Spindle tiltable
0° to 45°
Phase
Trifazis (400V)

PSM 2000 - 400 V

1091856
Price €7,750.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up friday, july 24 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 425 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 425 kg.

Description

Properties

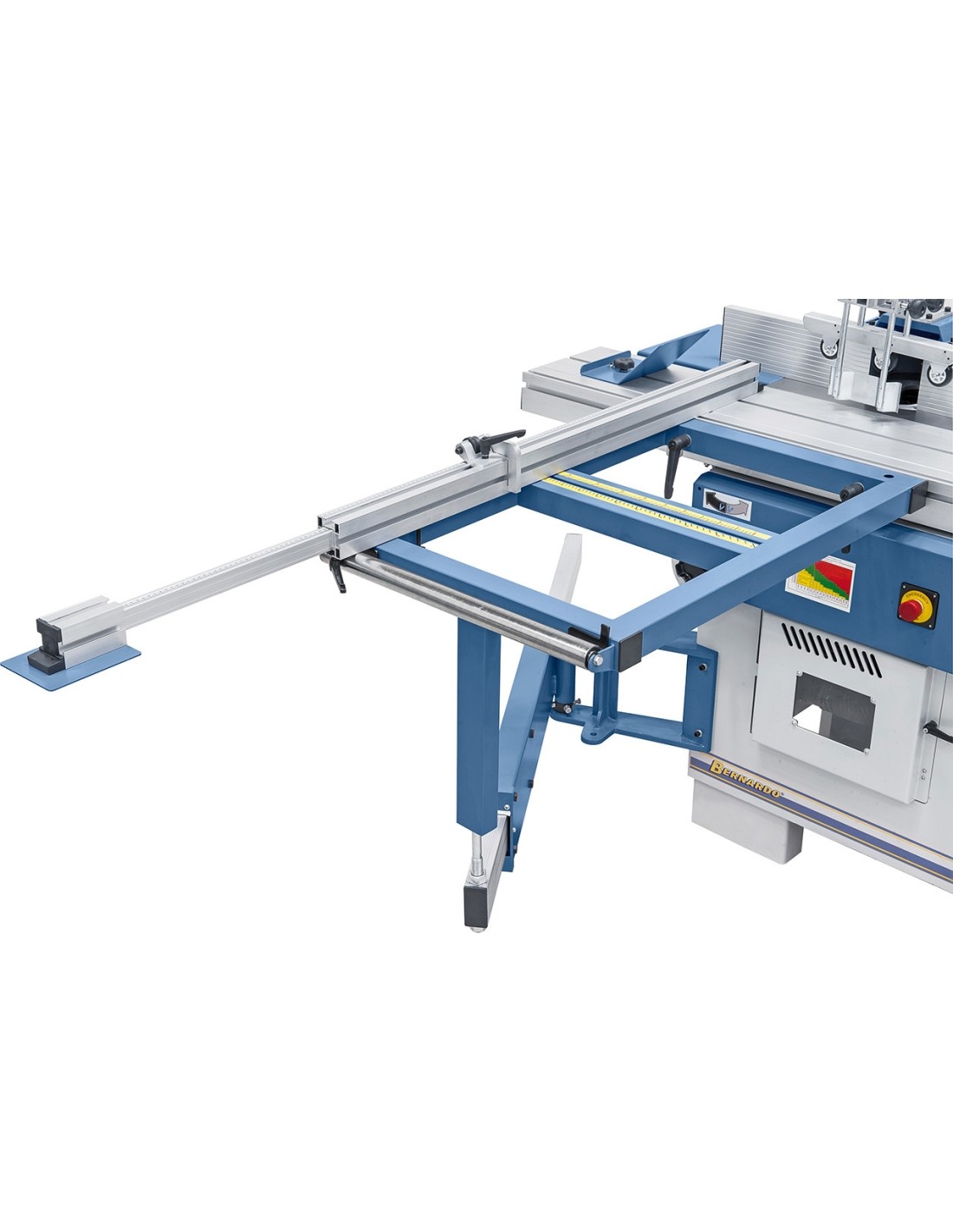

  • Square table with roller for convenient handling of larger workpieces

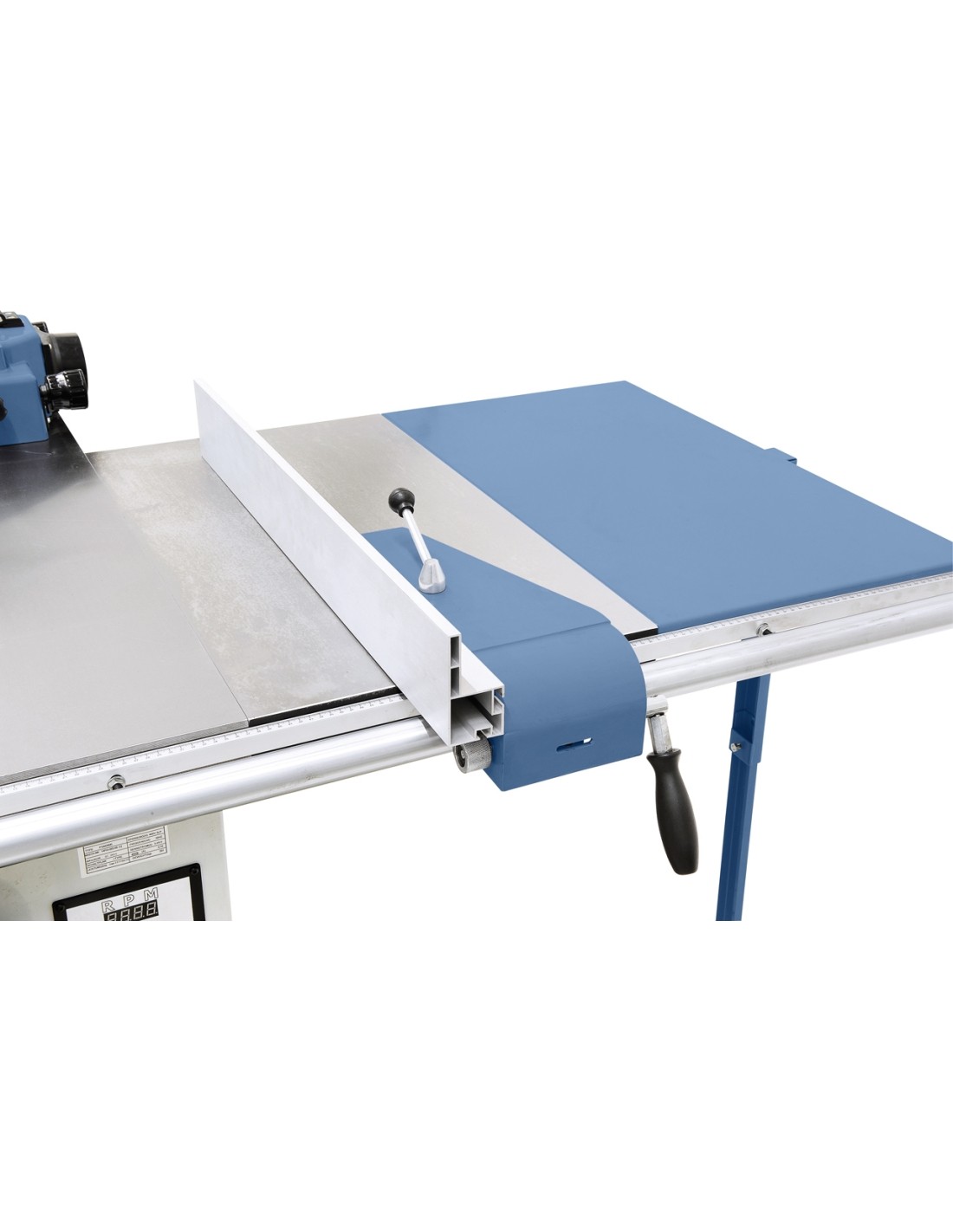

  • Telescopic-longitudinal fence comes complete with end stop feat. fine adjustment

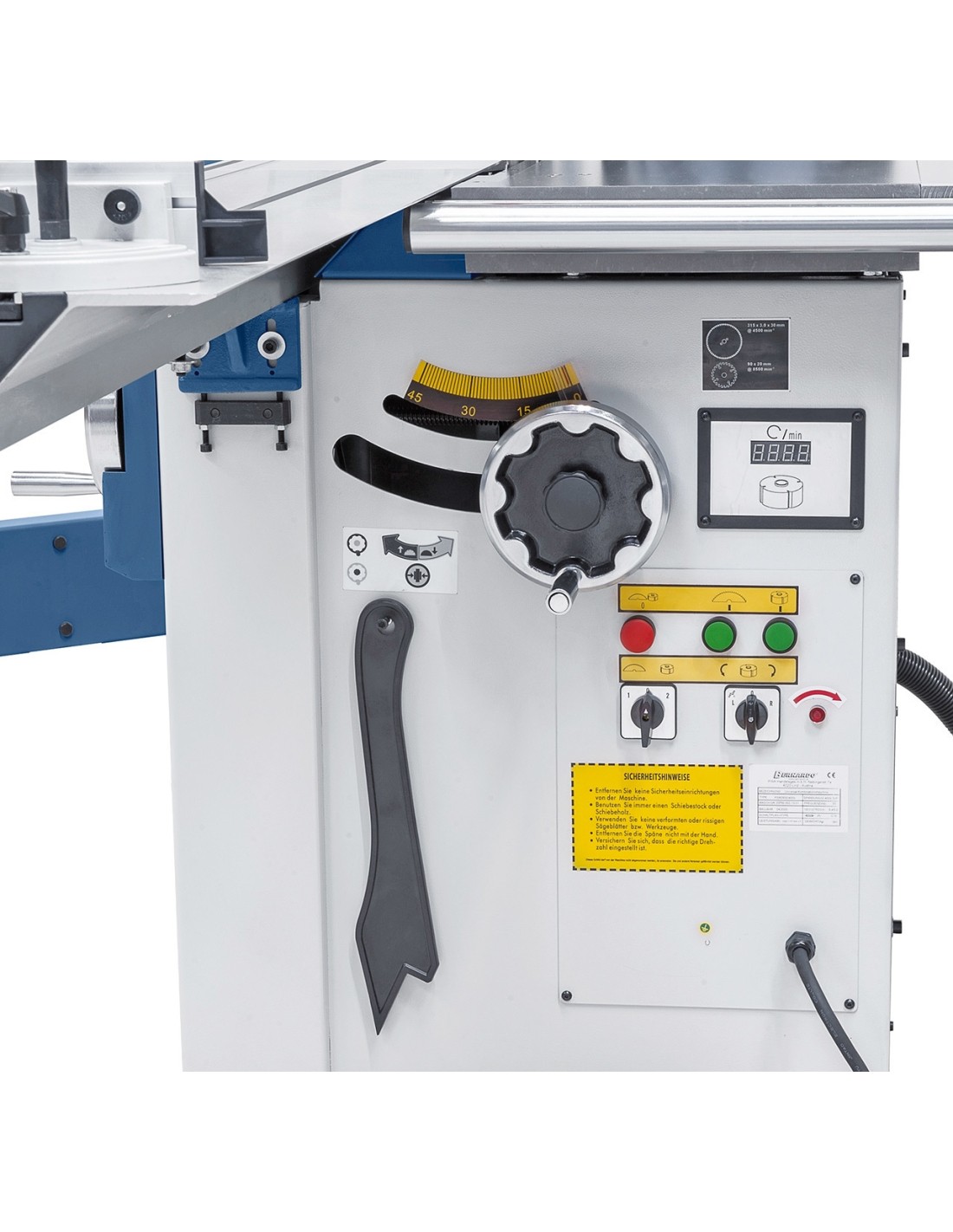

  • Quick and easy readout of spindle speed on digital display

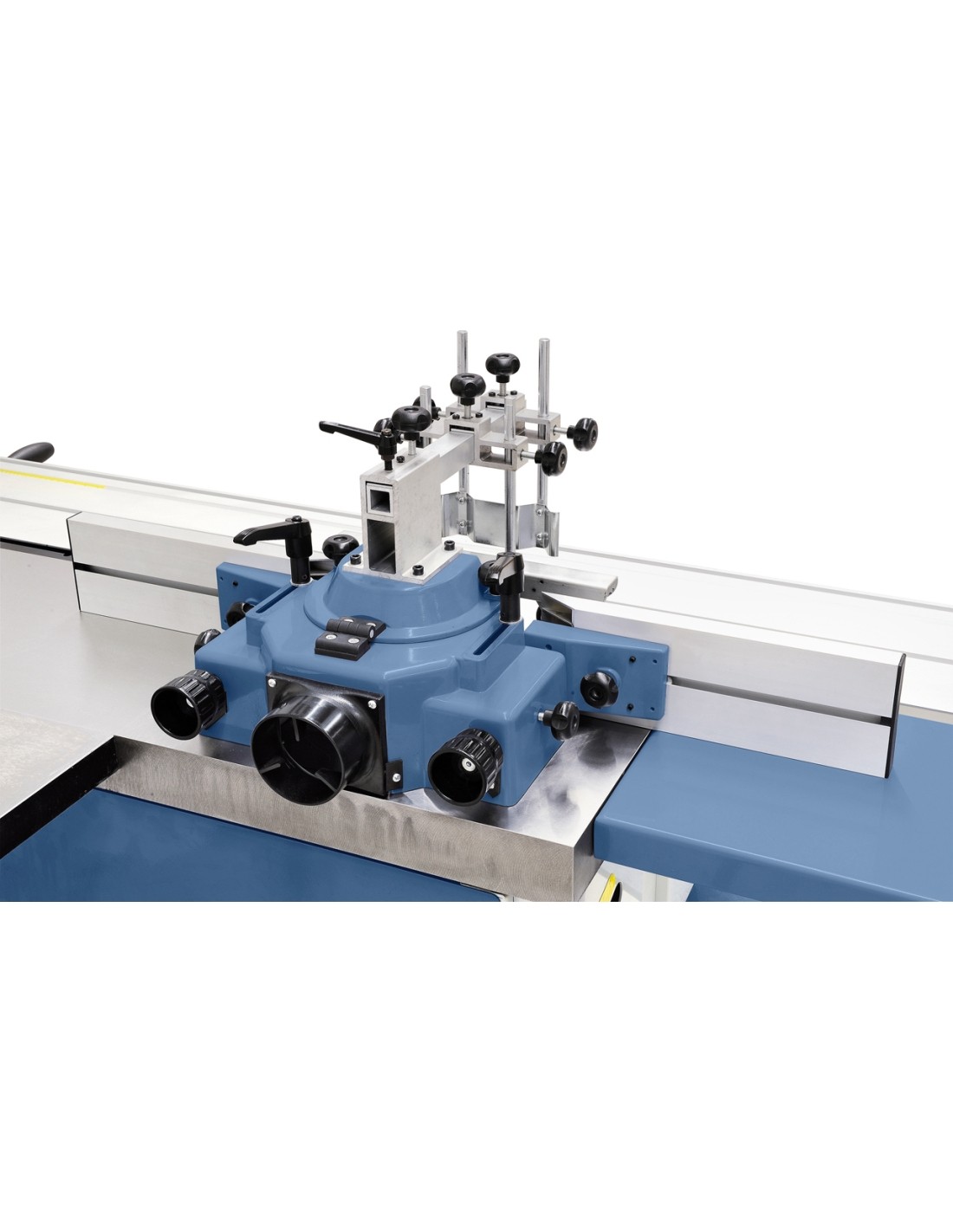

  • Solid moulding fence features finely adjustable aluminium fence rails
  • Large, grey cast-iron moulder unit, tilts from 0° to -45°
  • Important feature: Sawblade 315 mm can be used when scoring unit is mounted
  • Machine body consists of torsion-free combination of steel and grey cast iron
  • Solid square table allows processing of large, heavy panels without additional support

Standard accessories

  • End stop
  • Moulding fence

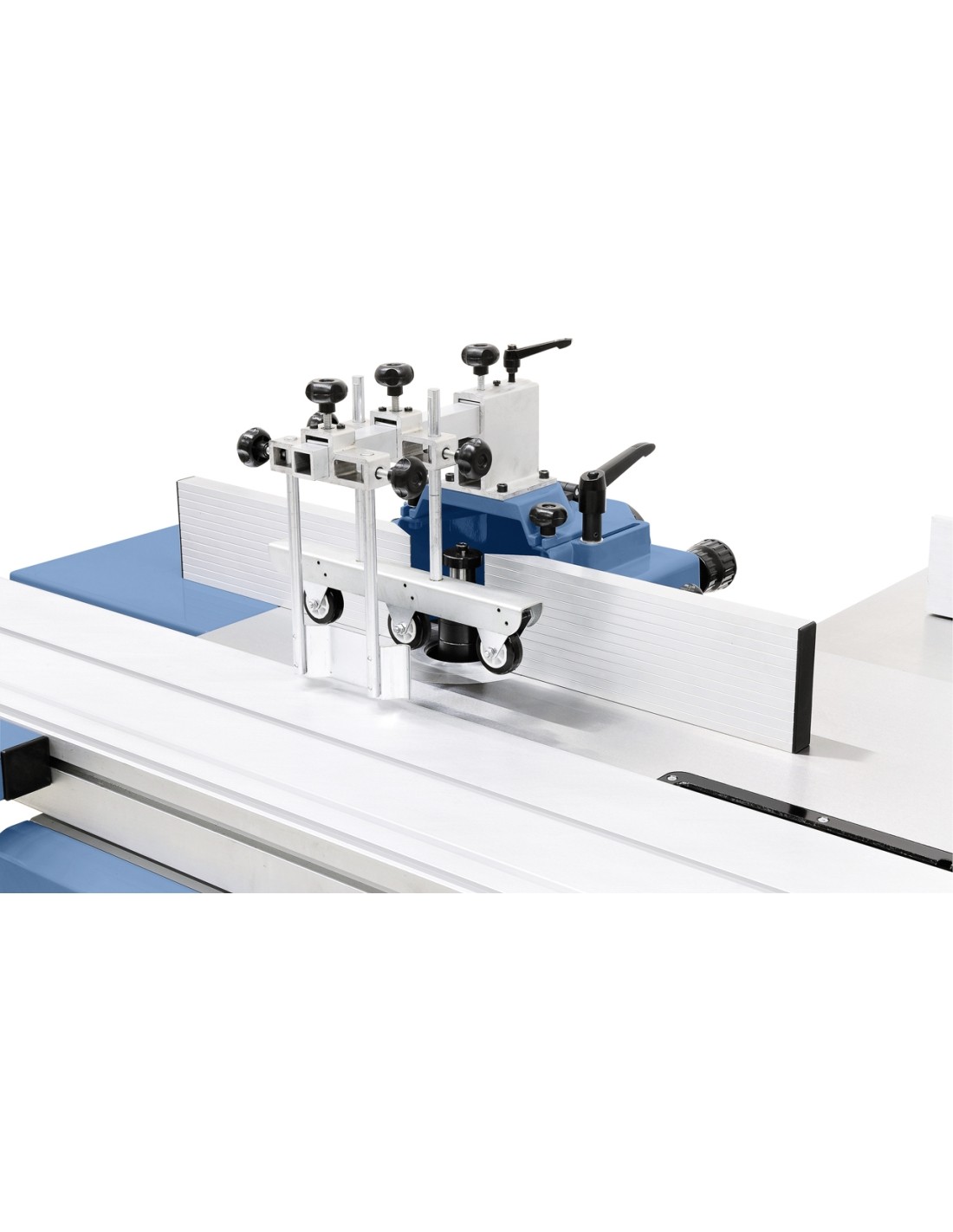

  • Protective and pressing device
  • Table extension and enlargement
  • Extractable telescopic fence
  • Scoring sawblade 90 x 20 x 3 mm / 13T

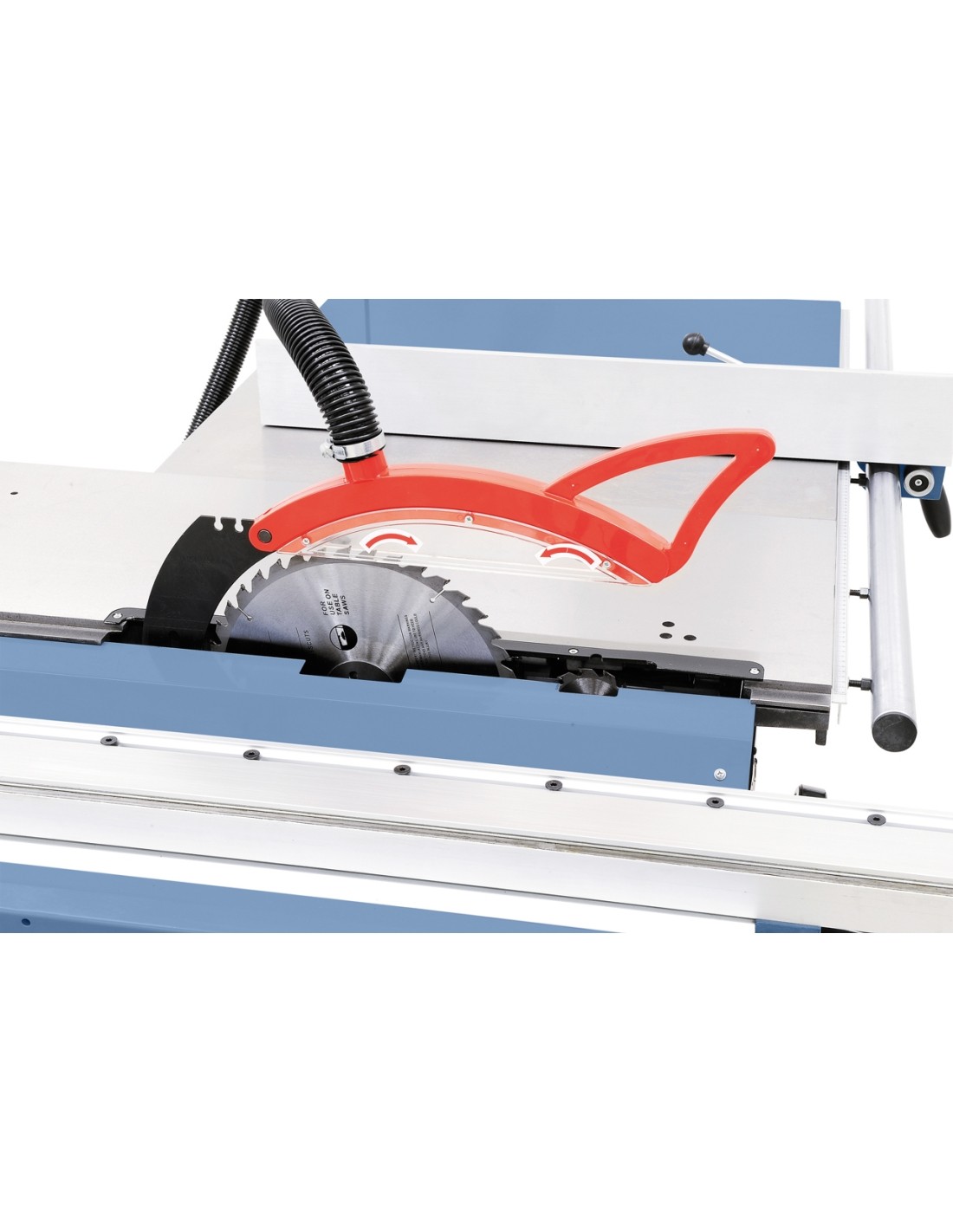

  • Protective cover with dust extraction outlet and tube

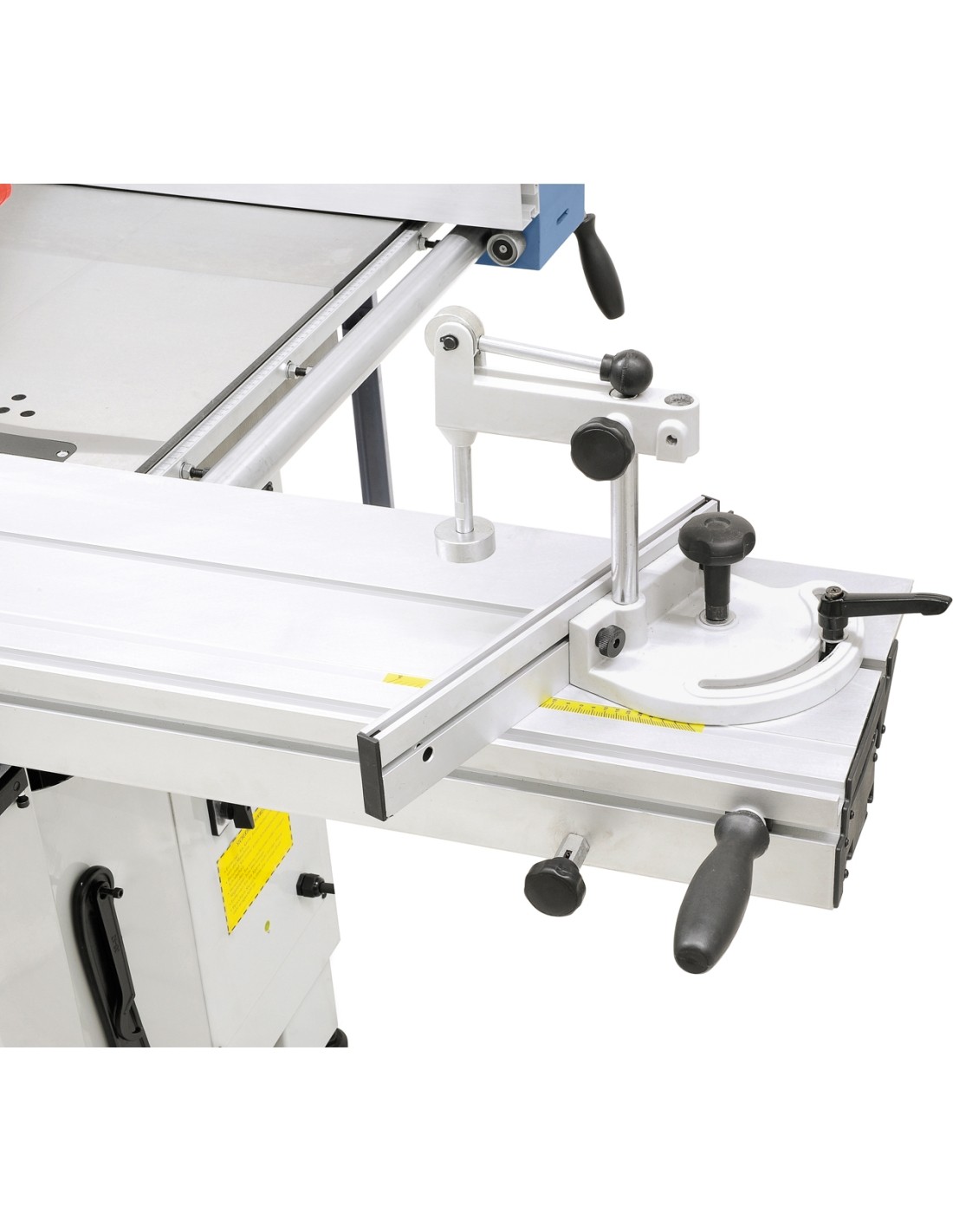

  • Mitre fence with eccentric holder
  • End stop with fine adjustment
  • Square table with roller
  • Carbide sawblade 315 x 3,0 x 30 mm / 40T
  • Digital speed indication of moulding spindle
  • Spindle with left and tright turning
  • Push stick
  • Tools
