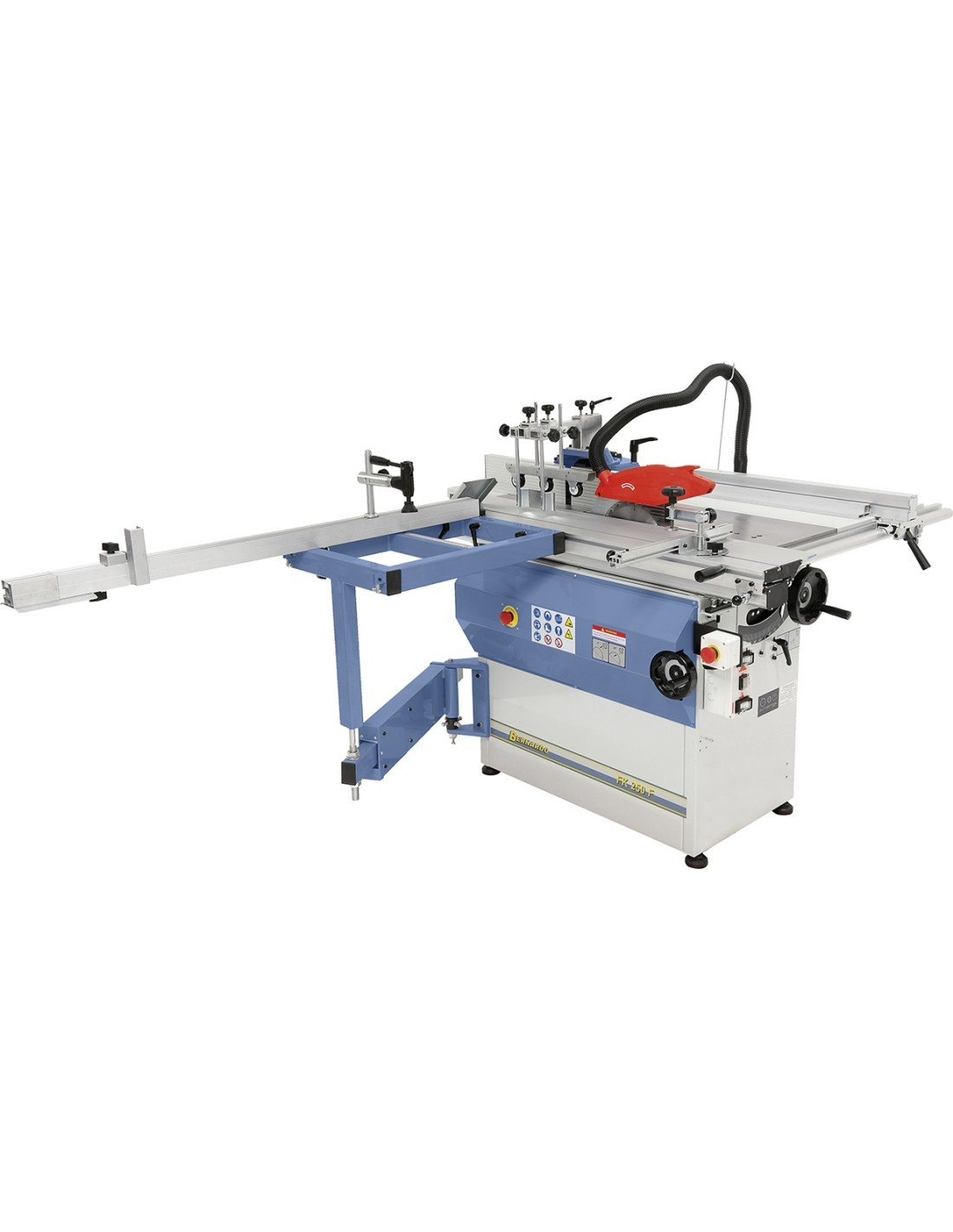

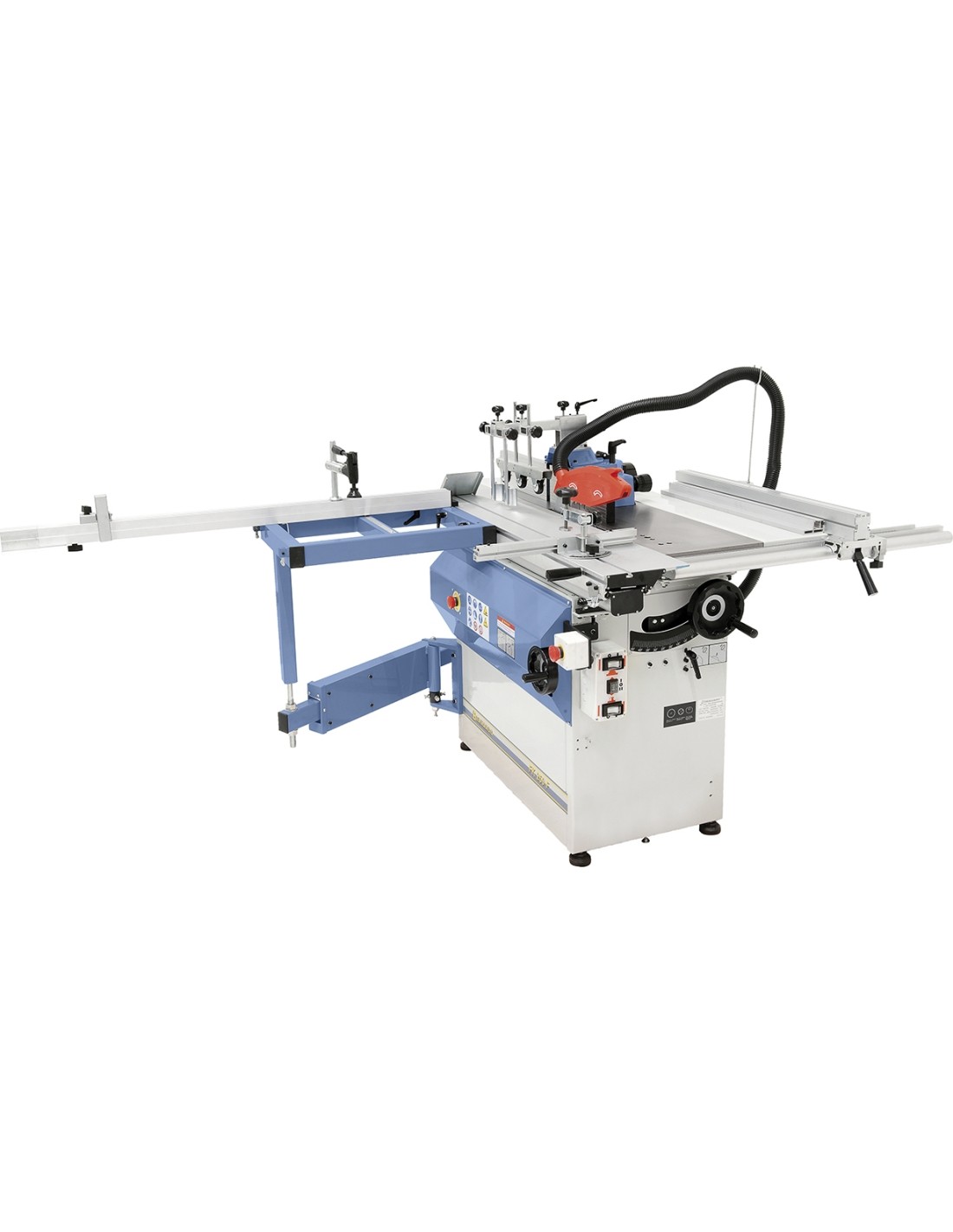

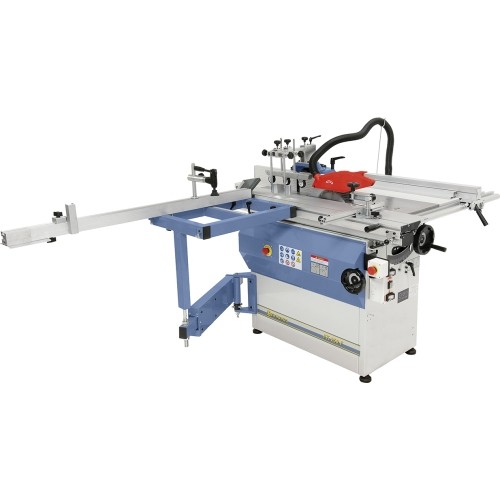

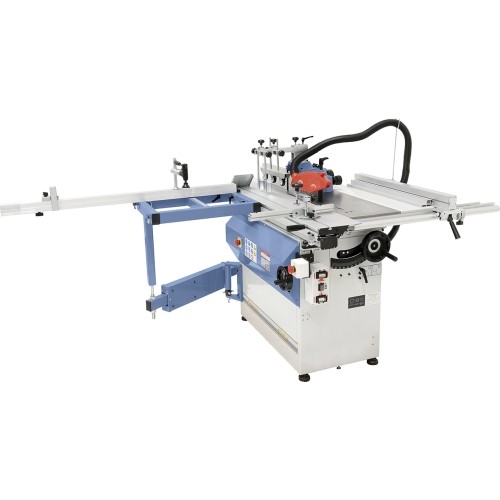

Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V
Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V

WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
255 kg
Spindle speed
3500 / 5500 / 7000 rpm
Machine dimension (W x D x H)
1500 x 1560 x 1250 mm
Motor power output S1 100%
3,0 kW (4,0 HP)
Motor power input S6 40%
4,2 kW (5,7 HP)
Voltage
230 V
Dust extraction outlet
100 mm
Table size
1045 x 300 mm
Table height
850 mm
Table extension
300 x 245 mm
Cutting length
1350 mm
Height adjustment
150 mm
Table enlargement
1045 x 500 mm
Square table
410 x 600 mm
Sliding table
1200 x 240 mm
Max. sawblade diameter
254 x 30 mm
Max. cutting height 90° / 45°
65 / 55 mm
Cutting width on rip fence
700 mm
Speed main sawblade
4050 rpm
Speed scoring sawblade
6300 rpm
Scoring sawblade
80 x 20 mm
Spindle diameter
30 mm
Table opening
150 mm
Working length of spindle
90 mm
- at profiling
140 mm
- at tenoning
200 mm

Pjovimo - frezavimo staklės Bernardo FK 250 F - 230 V

1055968
€6,030.00
Tax included
Monthly payment from 148.09€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, january 6 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
NEMOKAMAI Prekę pristatysime Jums per: 5-11 d.d. Venipak (€0.00)

Description

Properties

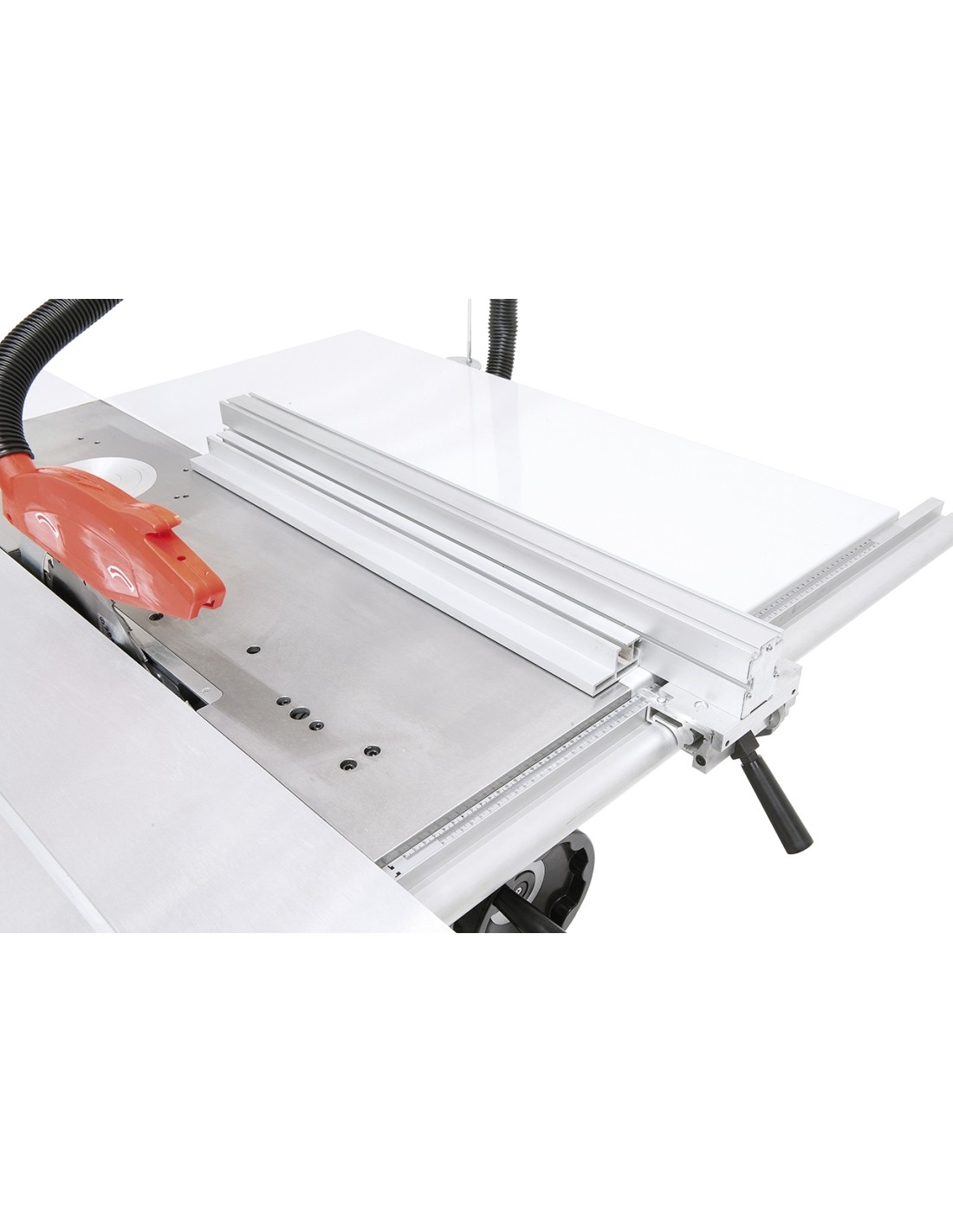

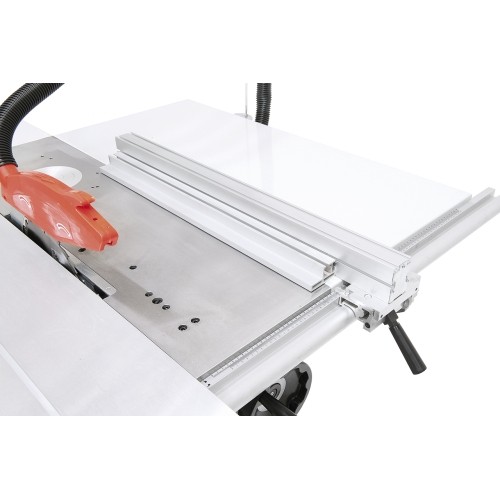

  • Extractable telescopic fence mountable at front or rear of square table
  • Solid square table for suffi cient support when processing oversize panels
  • Oversize, robust, grey cast-iron table eliminates vibrations
  • Spindle moulder unit features 3 different speeds (3500 / 5500 / 7000 rpm)
  • Smooth running, precise sliding table features hardened, prism-shaped guides

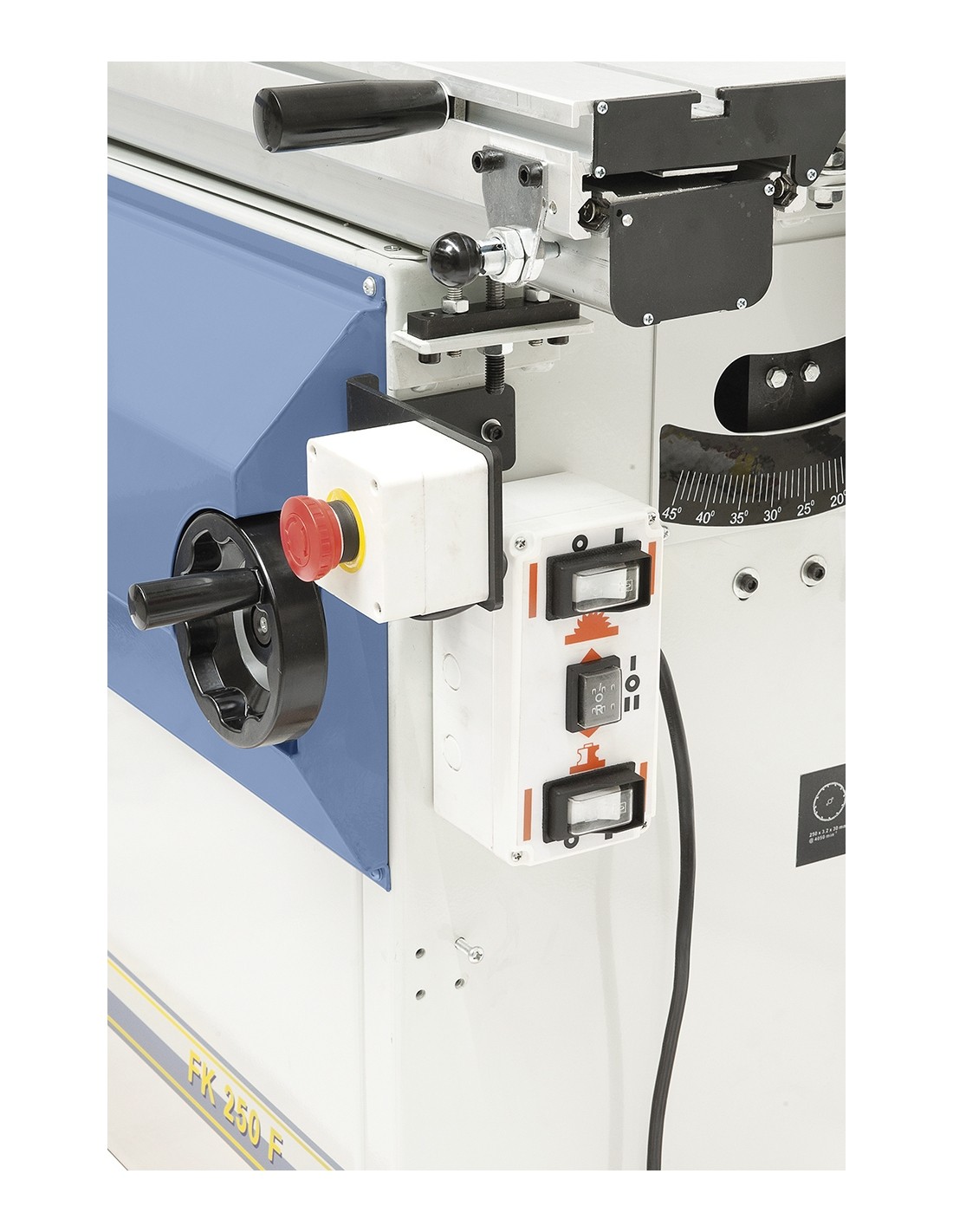

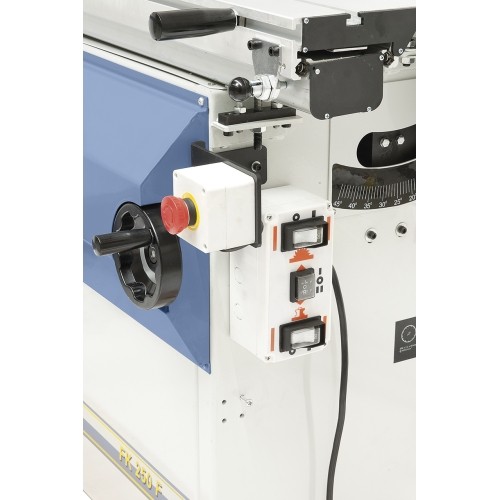

  • Ergonomically arranged handwheels for convenient adjustment of saw unit

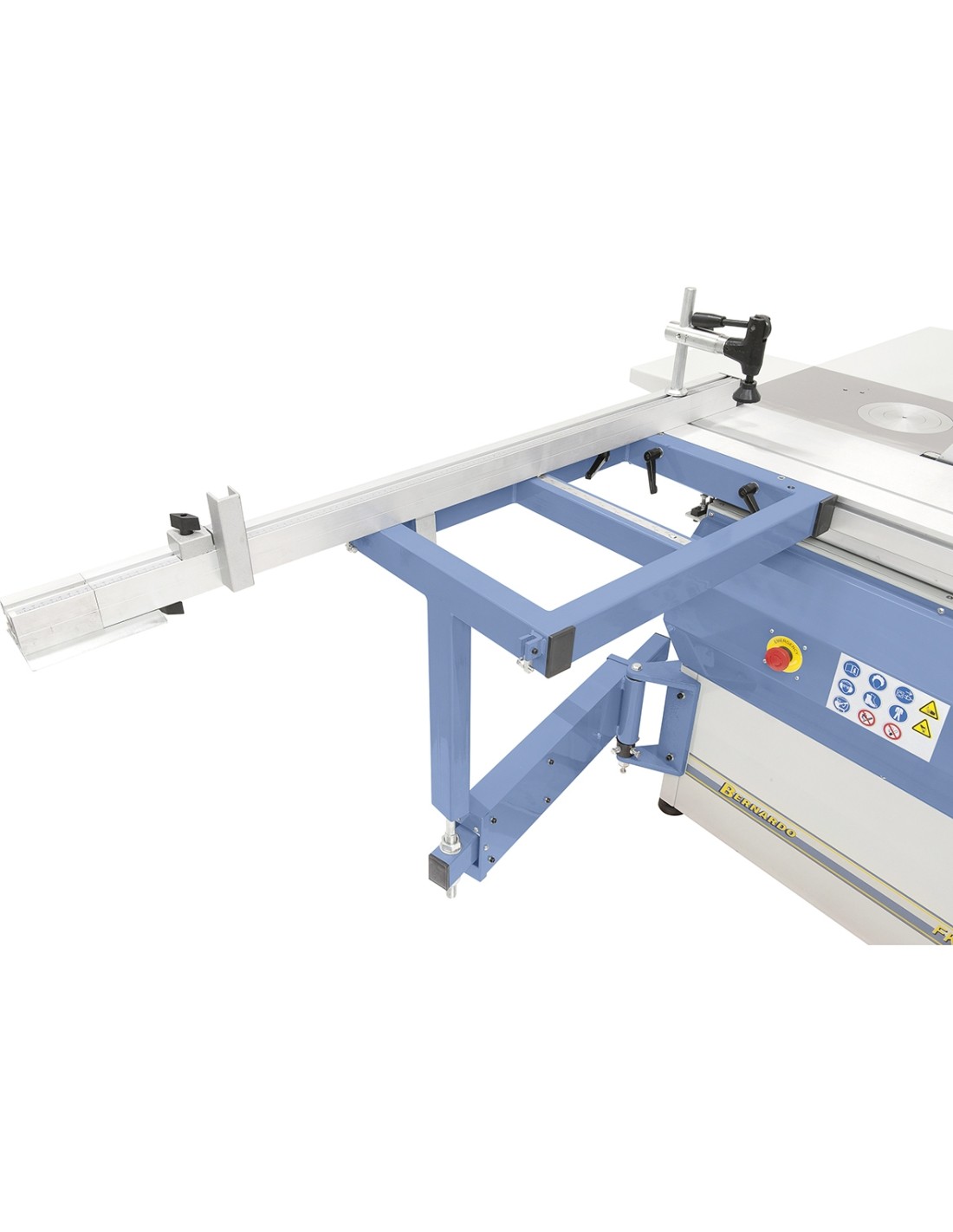

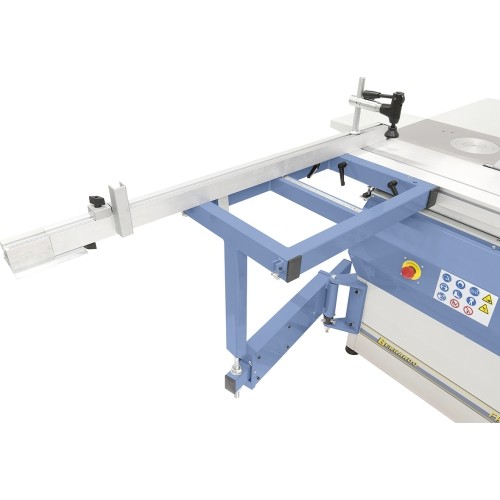

  • Complete with telescopic arm and longitudinally adjustable square table

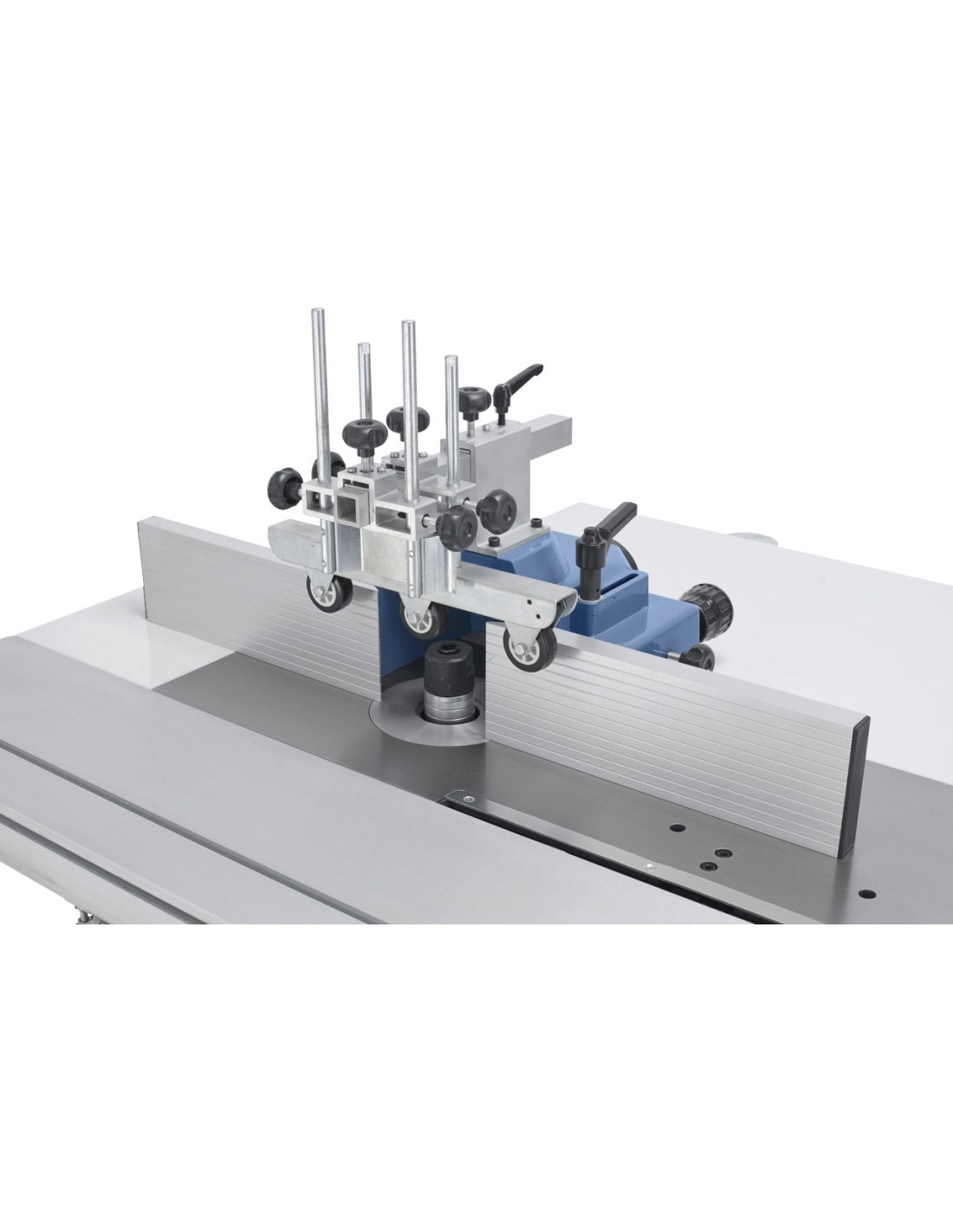

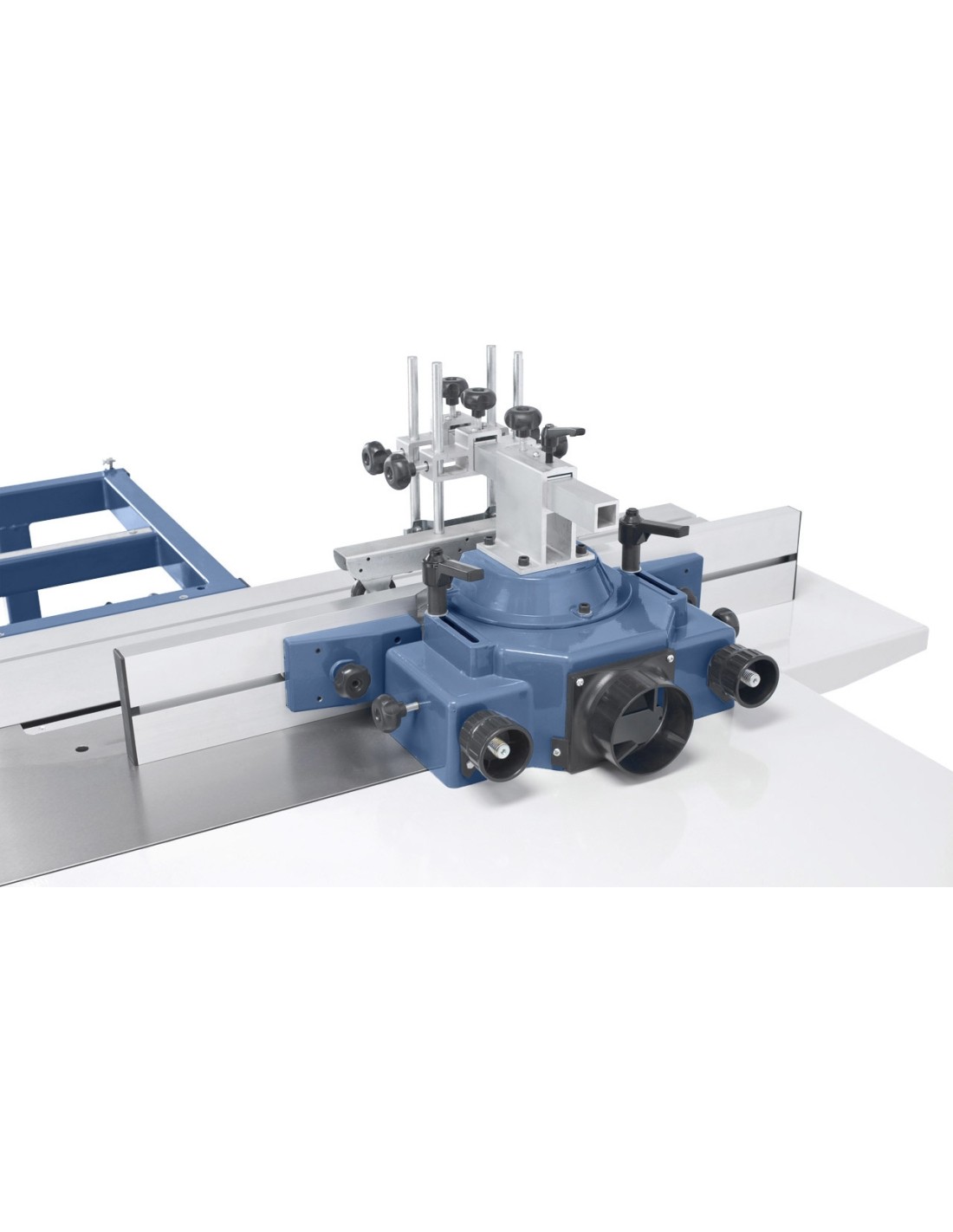

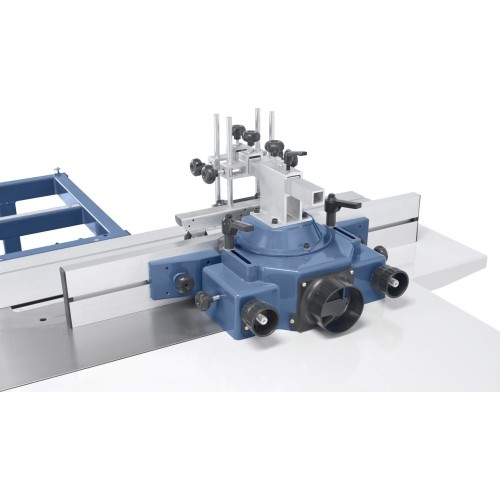

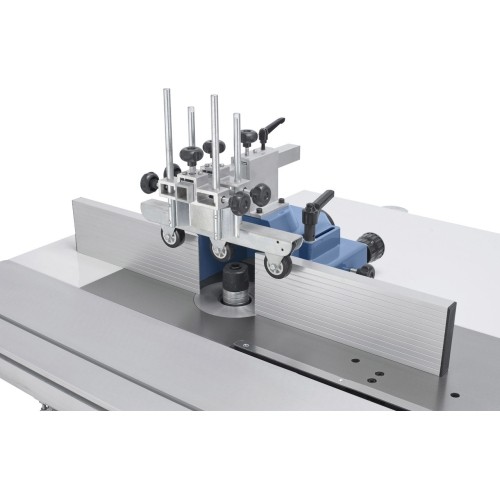

  • Moulding fence equipped with fine adjustment on both sides

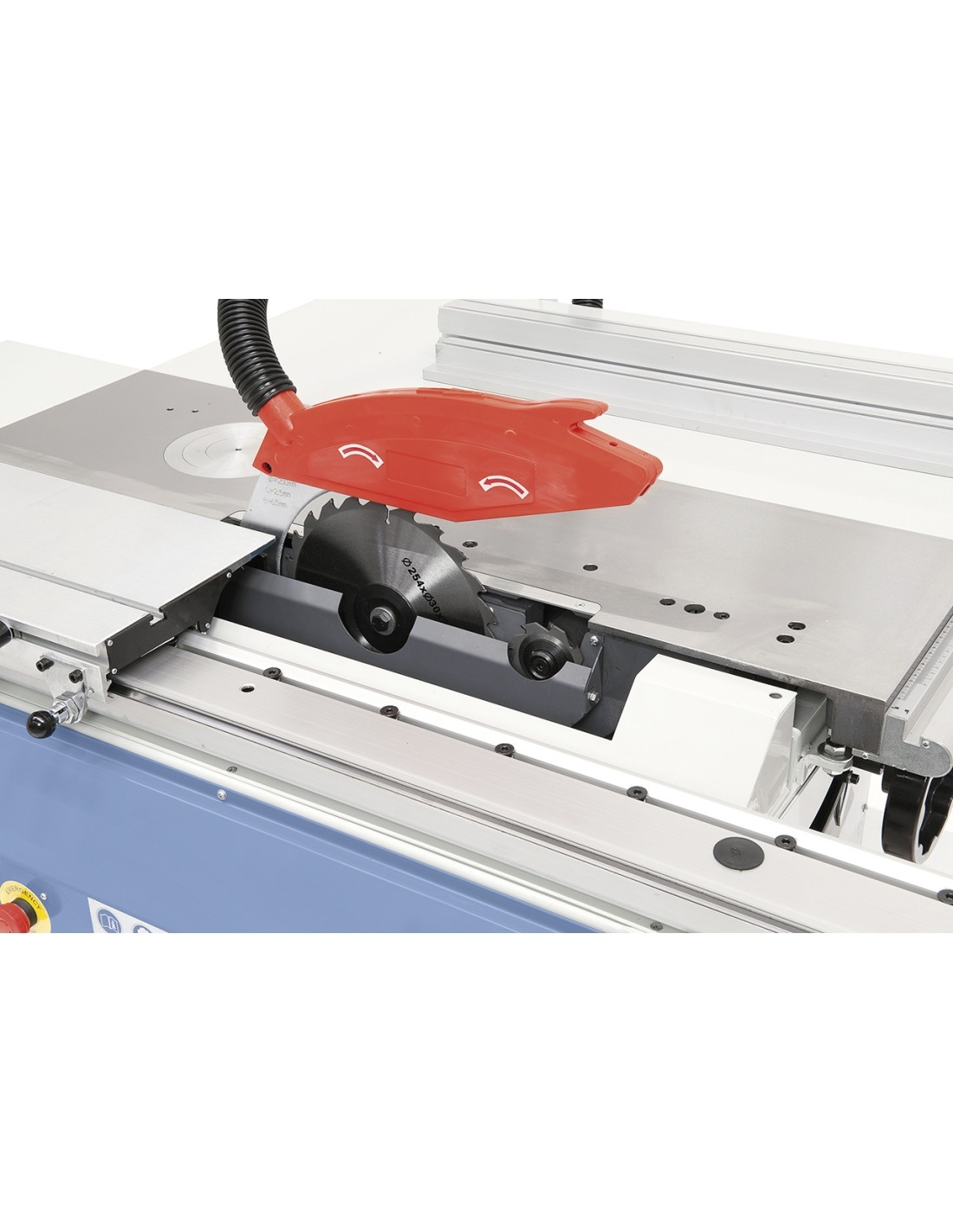

  • Scoring unit and sawblade are part of standard equipment



Standard accessories

  • Sawblade 250 x 3,2 x 30 mm / 24T
  • Scoring sawblade 80 x 3,2 x 20 mm / 8T

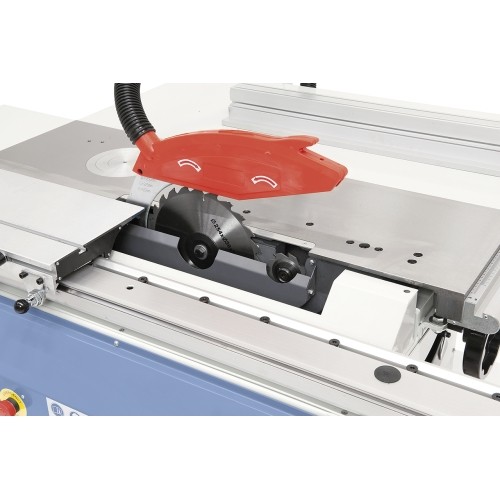

  • Protective cover with dust extraction outlet and tube
  • Mitre fence and downholder
  • Eccentric holder
  • End stop
  • Table extension and enlargement
  • Extractable telescopic fence
  • Square table
  • Moulding fence
  • Push stick
  • Tools

Technical specifications

Circular saw



Table size

1045 x 300 mm

Table height

850 mm

Table extension

300 x 245 mm

Table enlargement

1045 x 500 mm

Square table

410 x 600 mm

Sliding table

1200 x 240 mm

Cutting length

1350 mm

Max. sawblade diameter

254 x 30 mm

Max. cutting height 90° / 45°

65 / 55 mm

Cutting width on rip fence

700 mm

Speed main sawblade

4050 rpm

Speed scoring sawblade

6300 rpm

Scoring sawblade

80 x 20 mm

Dust extraction outlet

100 mm

Motor power output S1 100%

3,0 kW (4,0 HP)

Motor power input S6 40%

4,2 kW (5,7 HP)

Spindle moulder



Spindle diameter

30 mm

Height adjustment

150 mm

Table opening

150 mm

Working length of spindle

90 mm

Max. tool diameter



- at profiling

140 mm

- at tenoning

200 mm

Spindle speed

3500 / 5500 / 7000 rpm

Motor power output S1 100%

3,0 kW (4,0 HP)

Motor power input S6 40%

4,2 kW (5,7 HP)

Voltage

230 V

Machine dimension (W x D x H)

1500 x 1560 x 1250 mm

Weight approx

255 kg
