Weight approx.
391 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Machine dimension (W x D x H)
2600 x 3090 x 1250 mm
Motor power output S1 100%
2,8 kW (3,8 HP)
Motor power input S6 40%
3,9 kW (5,3 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table height
850 mm
Table extension
500 x 310 mm
Cutting length
2600 mm
Height adjustment
100 mm
Table enlargement
860 x 880 mm
Sliding table
2600 x 270 mm
Max. sawblade diameter
315 x 30 mm
Max. cutting height 90° / 45°
100 / 80 mm
Cutting width on rip fence
1270 mm
Speed main sawblade
4500 rpm
Speed scoring sawblade
8500 rpm
Scoring sawblade
2-100 x 20 mm
Spindle diameter
30 mm
Table opening
80 / 100 / 140 / 190 mm
Working length of spindle
100 mm
- at profiling
180 mm
- at tenoning
200 mm
Square table with roll
760 x 530 mm
Table siz
860 x 450 mm

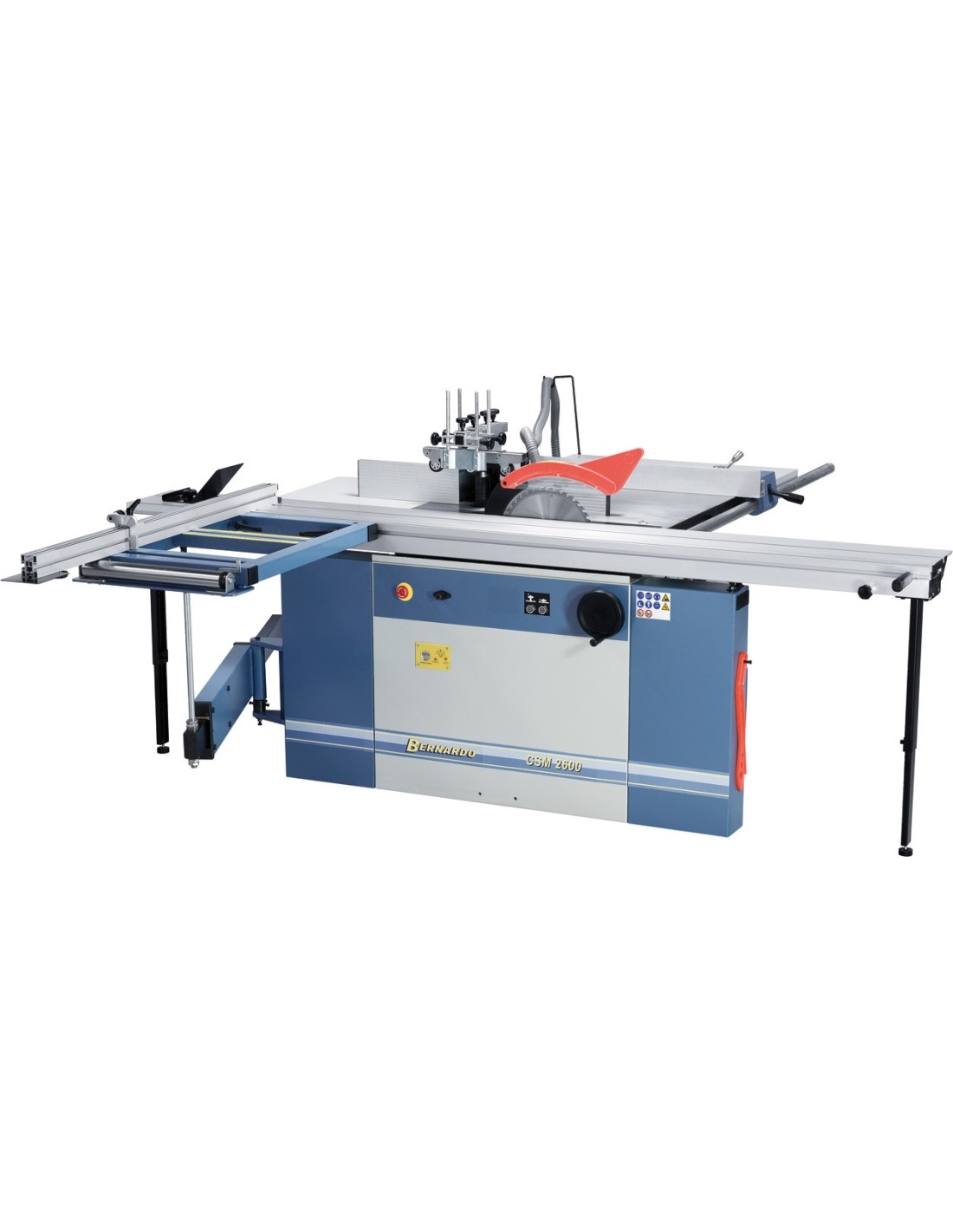

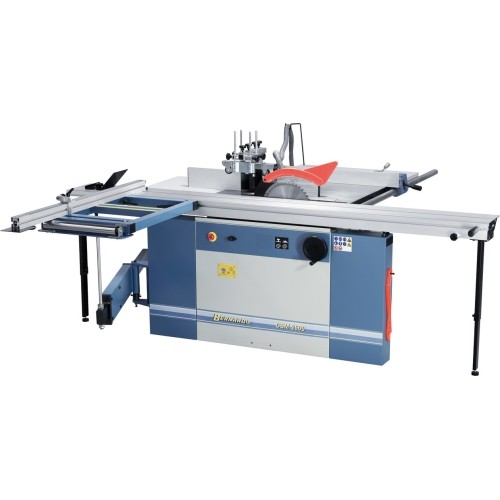

CSM 2600

1091854
Price €6,807.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite tuesday, april 8 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 391 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 391 kg.

Description

Properties

  • Solid square table allows processing of large, heavy panel without additional support
  • Table extension for cutting width up to 1270 mm is included

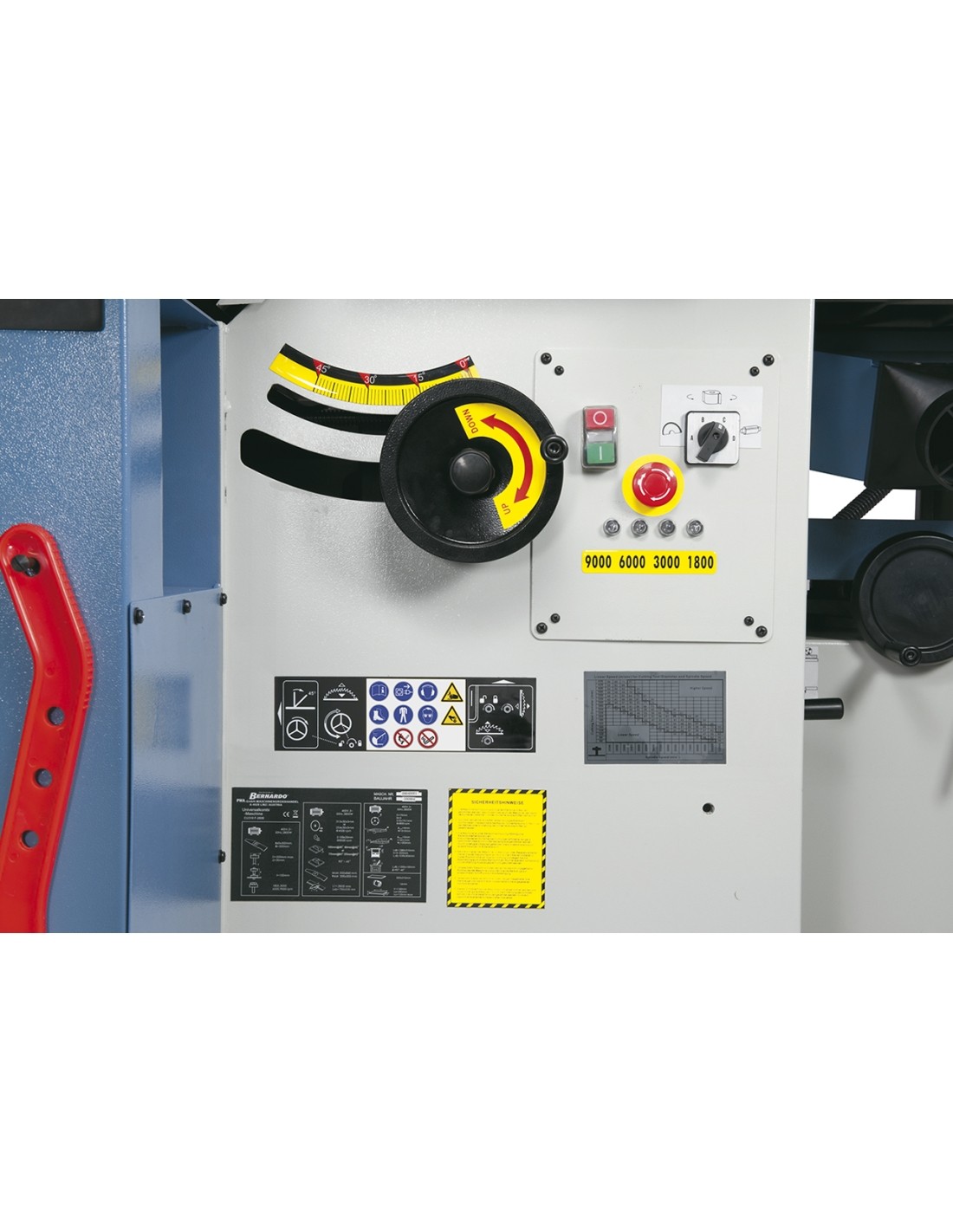

  • Complete with 4 milling speeds, quick and easy to read on LED

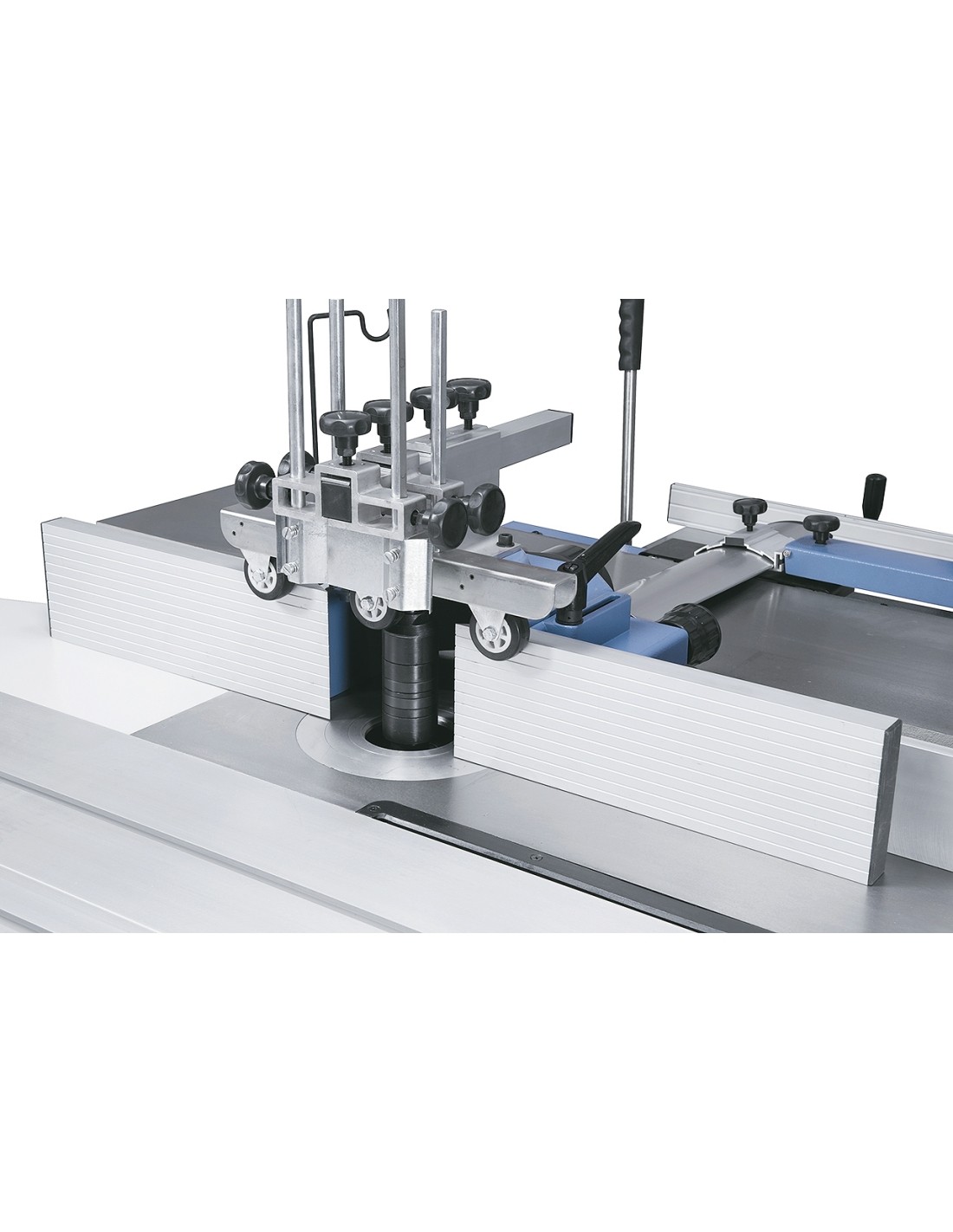

  • Moulder fence with anodized fence rails and fine adjustment
  • Equipped with table extension and enlargement for sufficient support of large, heavy panel
  • Parallel fence tilts and features a 40 mm round rod guiding

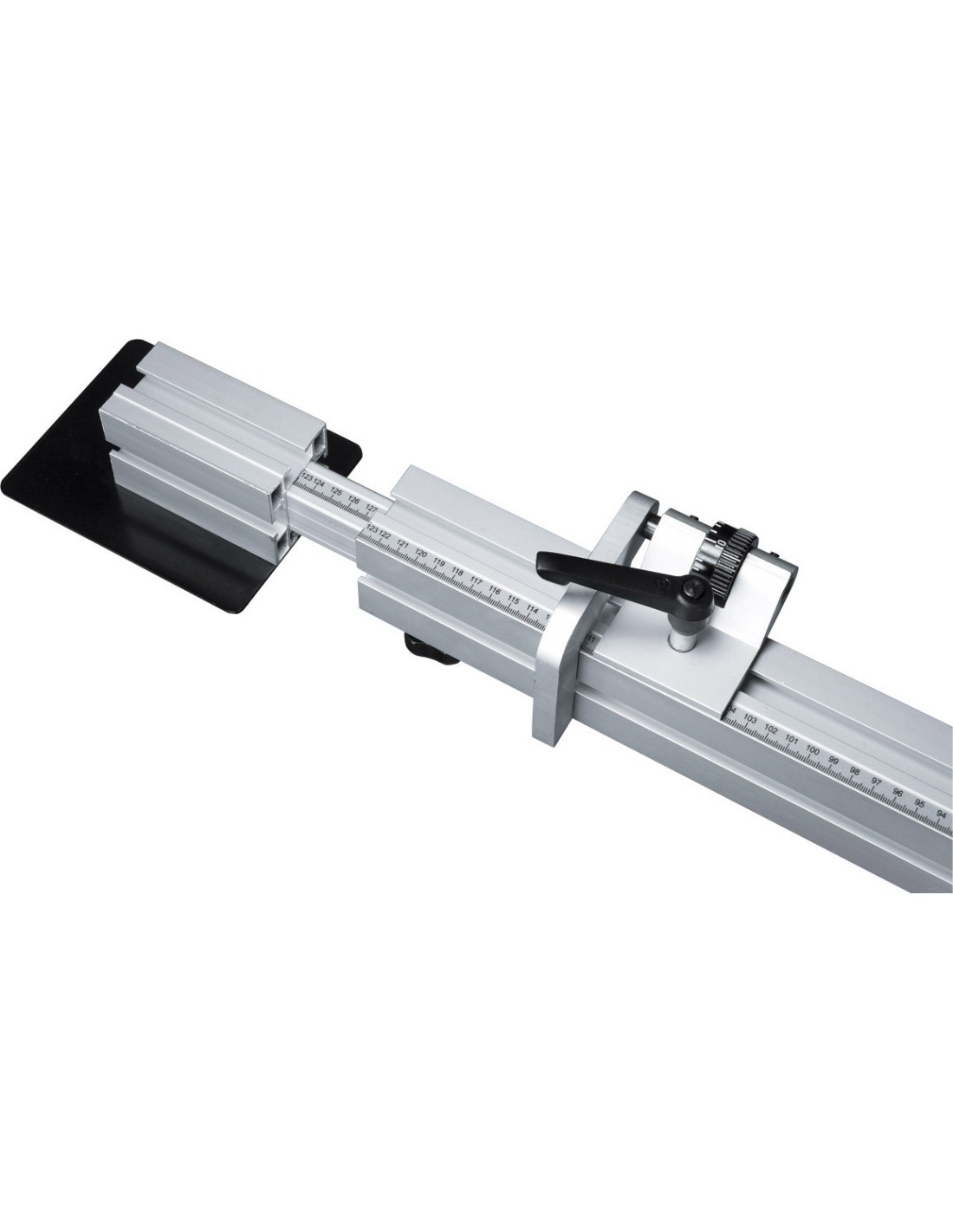

  • Extractable telescopic fence (up to 2260 mm), can be mounted at front or rear of square table

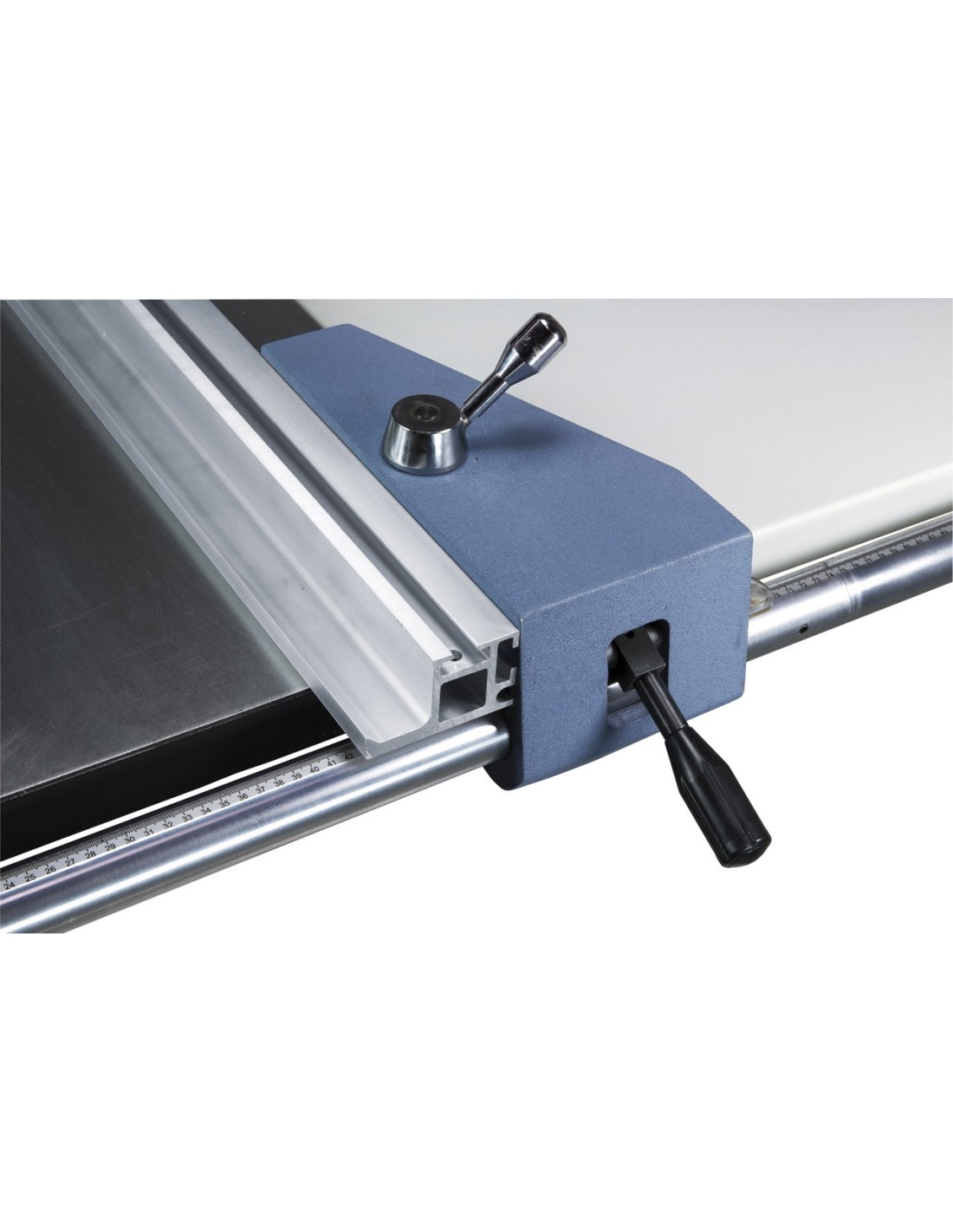

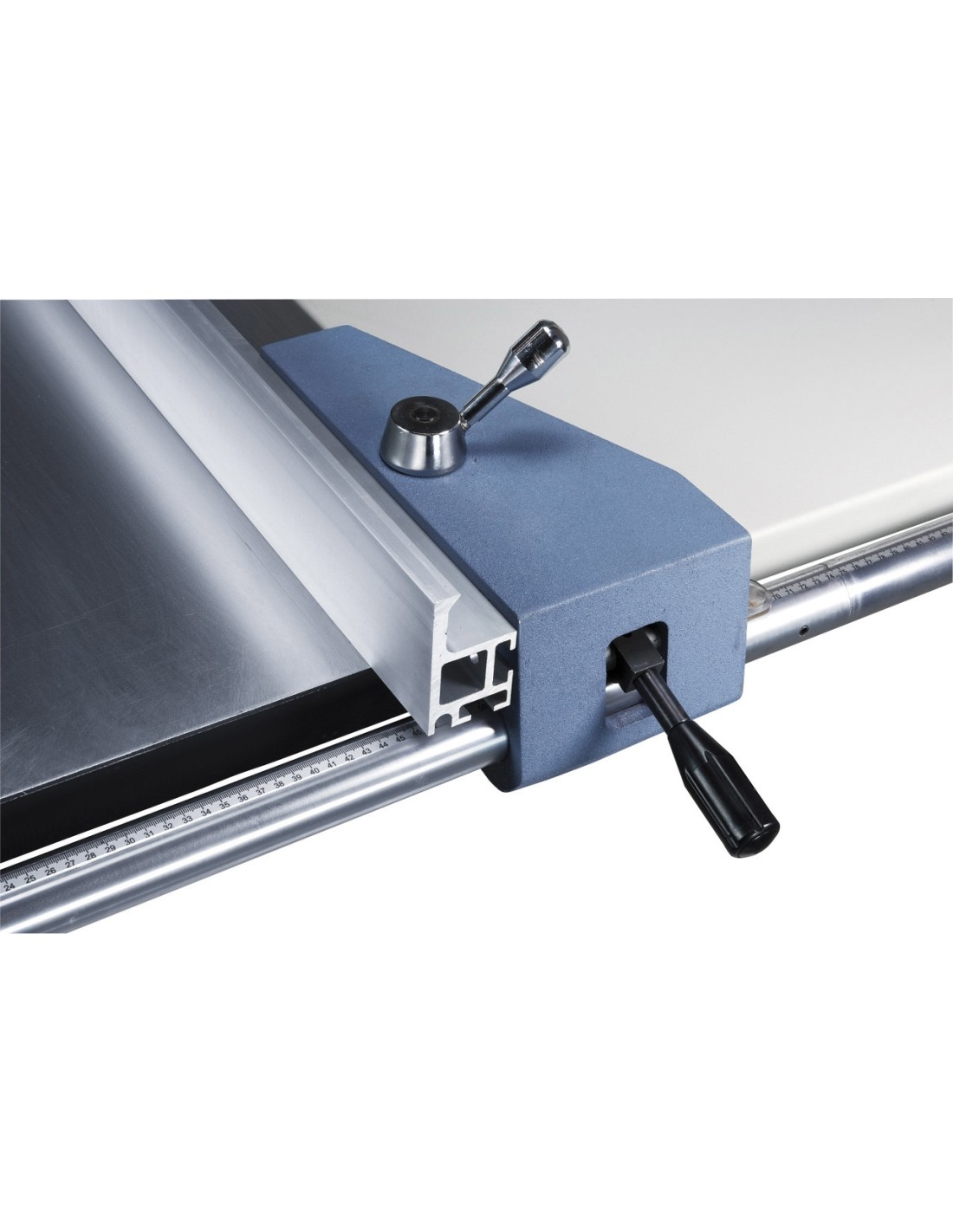

  • Solid parallel fence with magnifier guarantees high user comfort
  • Large, grey cast-iron machine table, precisely manufactured and polished

Standard accessories

  • End stop
  • Moulding fence
  • Sanding sleeve diam. 75 mm

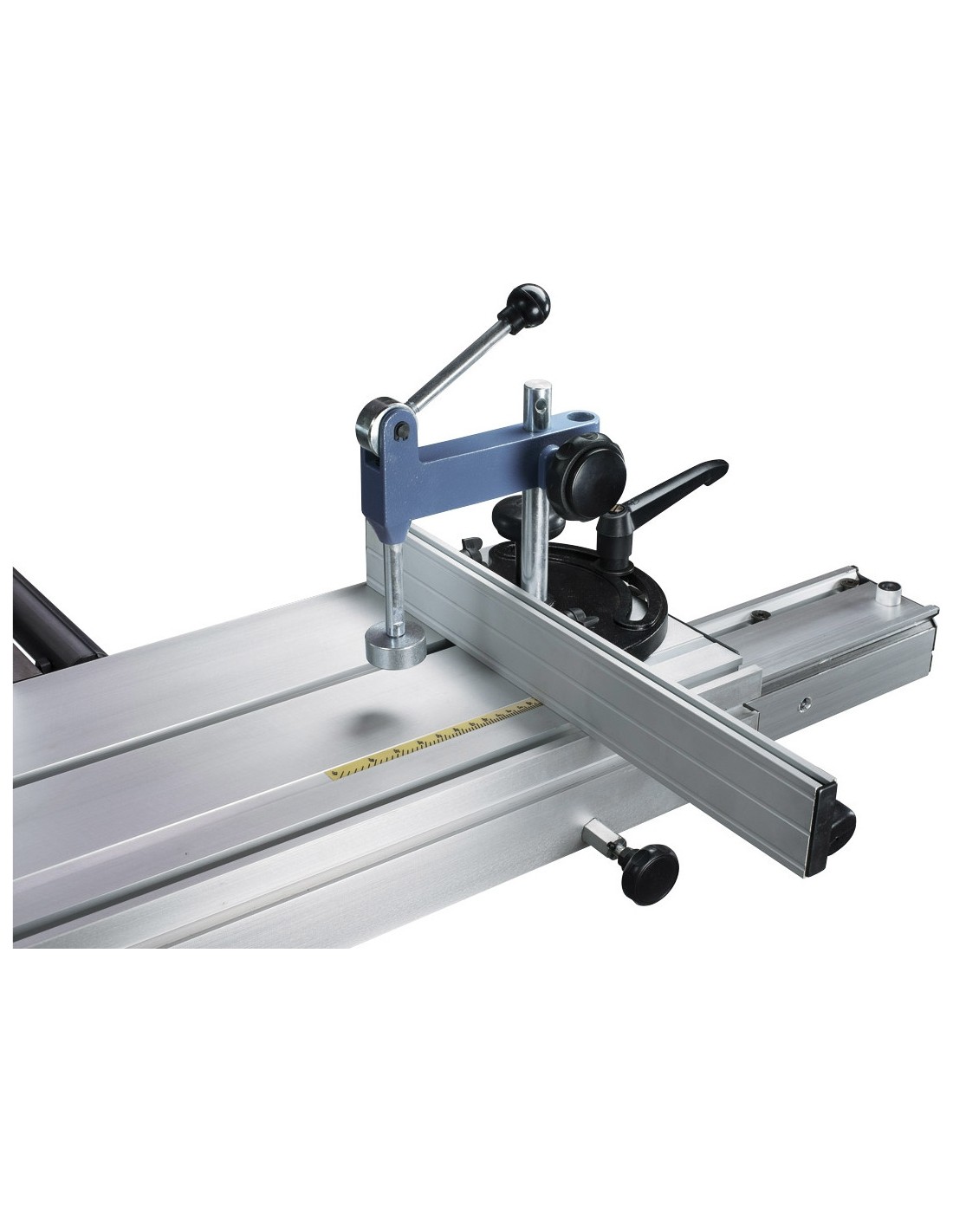

  • Protective and pressing device
  • Table extension and enlargement
  • Extractable telescopic fence
  • Scoring sawblade 2-100 x 20 mm / 24T

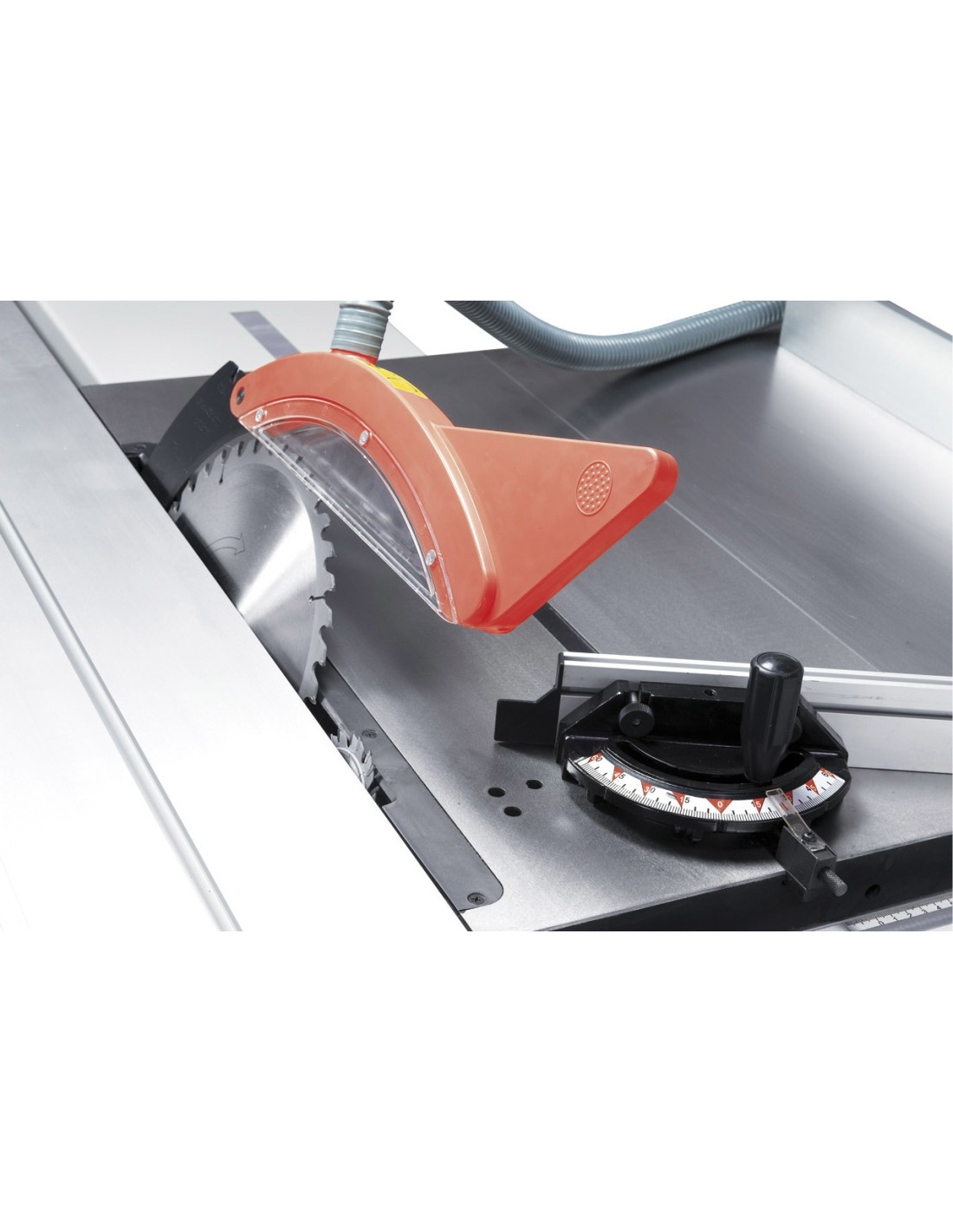

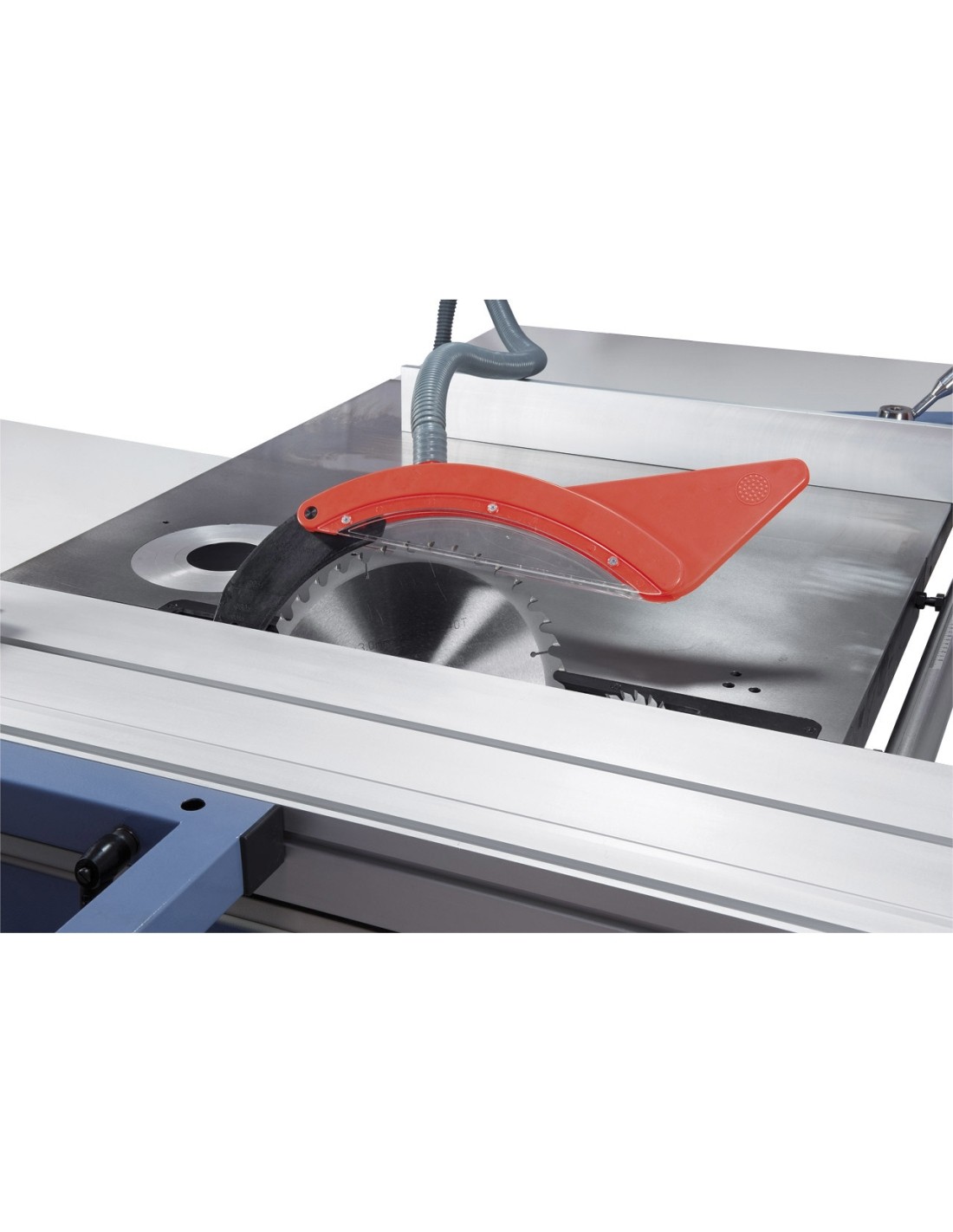

  • Protective cover with dust extraction outlet and tube
  • Mitre fence with eccentric holder
  • End stop with fine adjustment

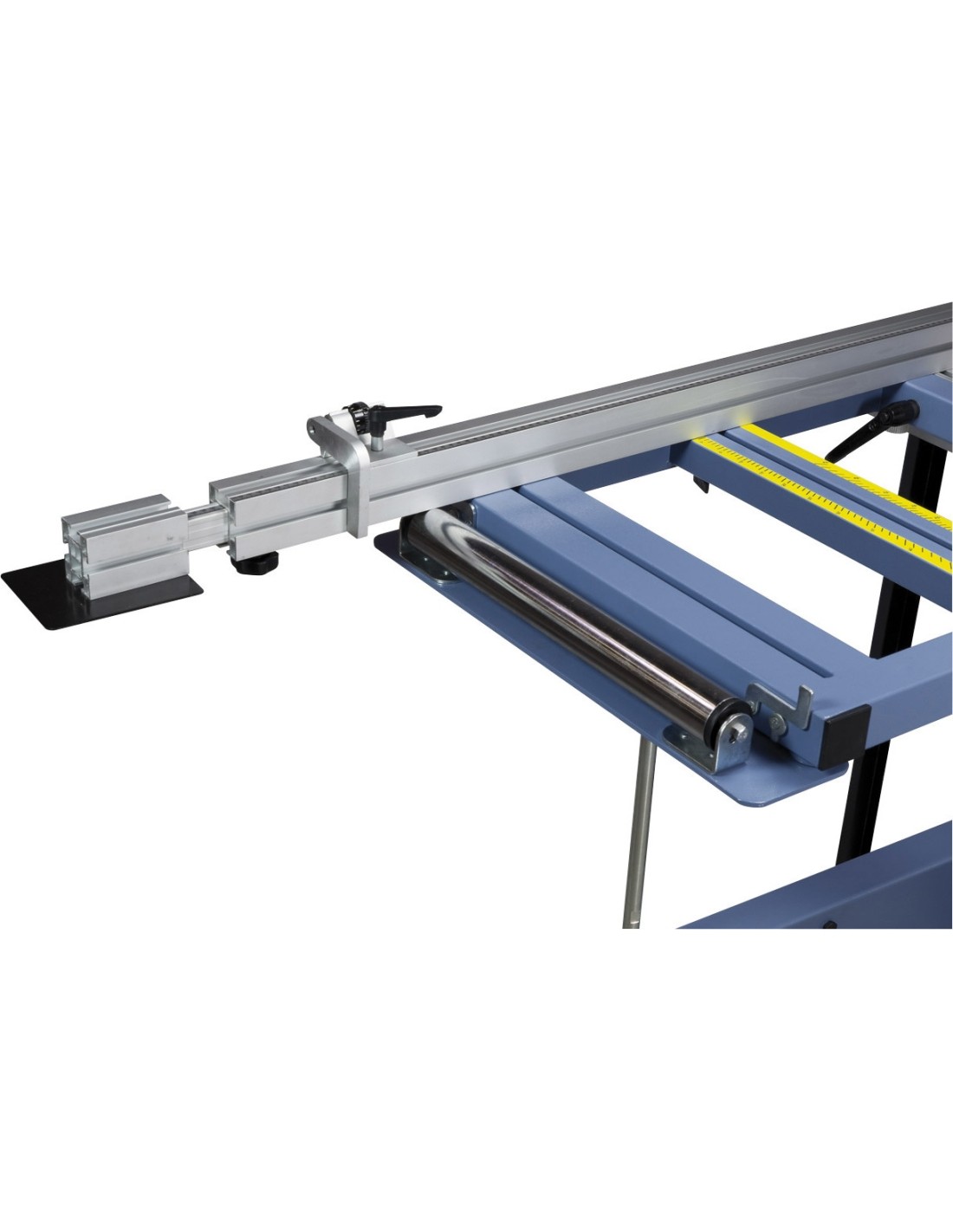

  • Square table with roller
  • Carbide sawblade 315 x 3,0 x 30 mm / 40T
  • LED speed indication
  • Spindle with left and right turning
  • Push stick
  • Tools
