Weight approx.
352 kg
Spindle speed
1800 / 3000 / 6000 / 9000 rpm
Machine dimension (W x D x H)
1600 x 3010 x 1250 mm
Motor power output S1 100%
2,8 kW (3,8 HP)
Motor power input S6 40%
3,9 kW (5,3 HP)
Dust extraction outlet
100 mm
Table size
860 x 450 mm
Table height
850 mm
Table extension
500 x 310 mm
Cutting length
1600 mm
Height adjustment
100 mm
Table enlargement
800 x 880 mm
Sliding table
1600 x 270 mm
Max. sawblade diameter
315 x 30 mm
Max. cutting height 90° / 45°
100 / 80 mm
Cutting width on rip fence
1270 mm
Speed main sawblade
4500 rpm
Speed scoring sawblade
8500 rpm
Scoring sawblade
2-100 x 20 mm
Spindle diameter
30 mm
Table opening
80 / 100 / 140 / 190 mm
Working length of spindle
100 mm
- at profiling
180 mm
- at tenoning
200 mm
Square table with roll
750 x 580 mm
Phase
Trifazis (400V)

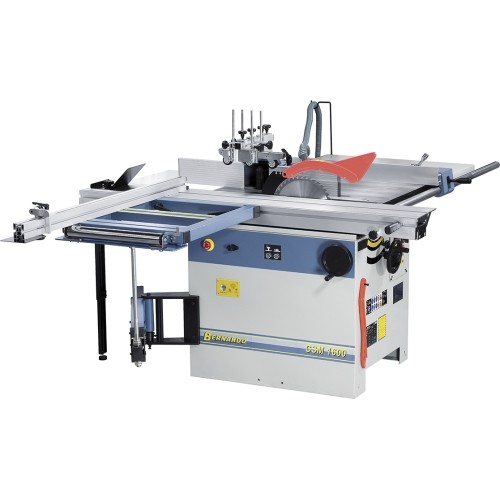

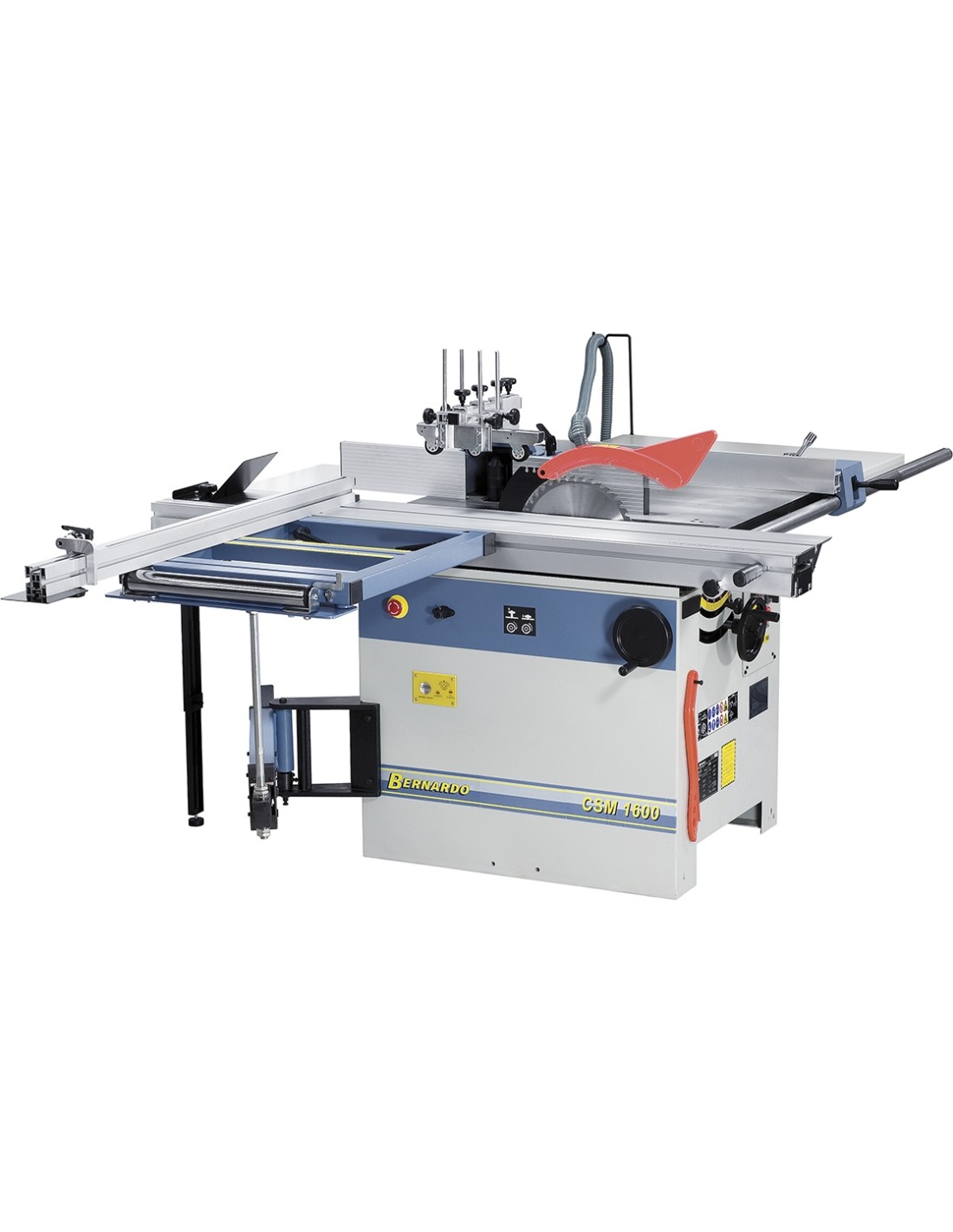

CSM 1600

1091851
Price €6,308.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up friday, july 24 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 352 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 352 kg.

Description

Properties

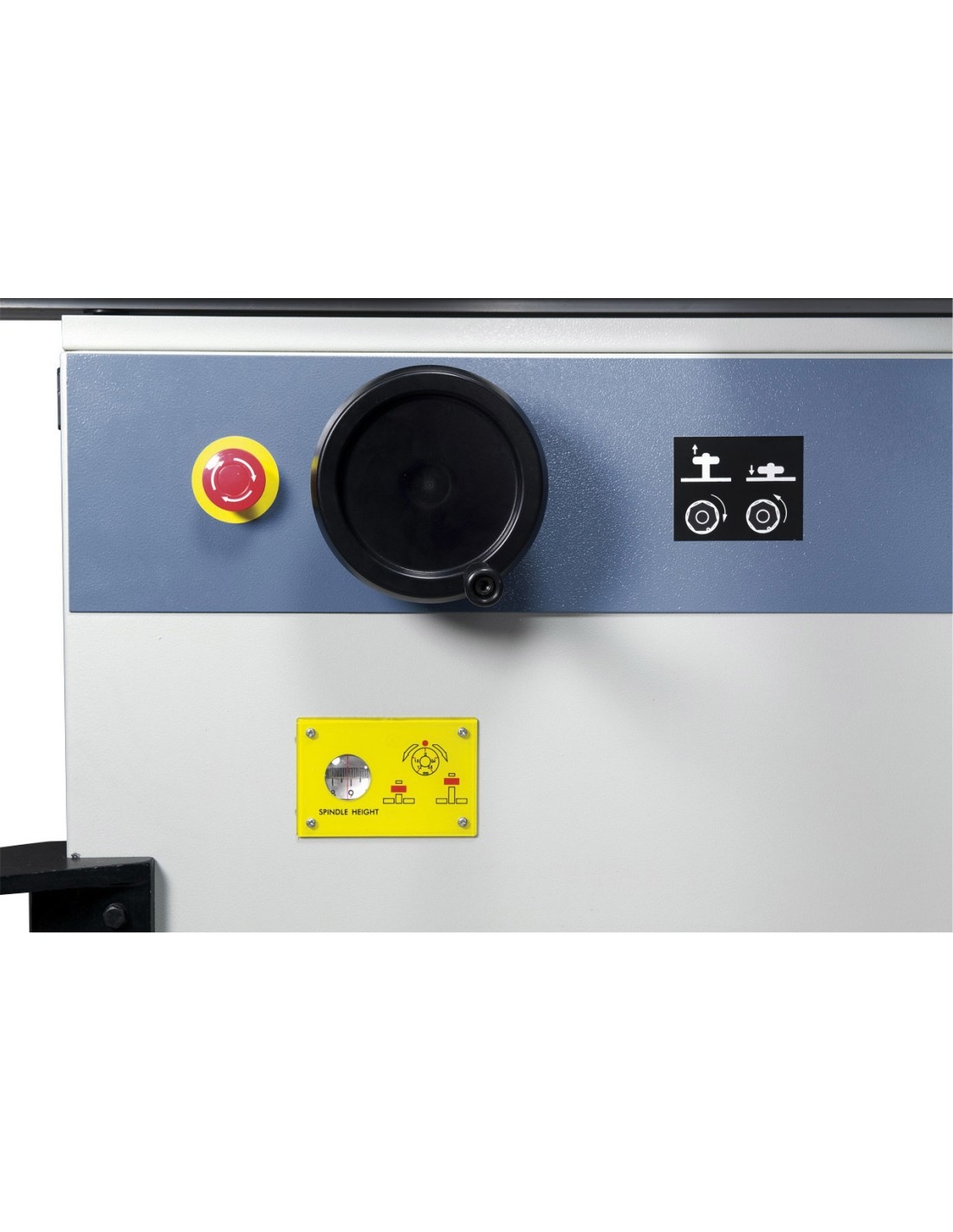

  • Handwheel on front of machine allows for height adjustment of milling spindle, easy to read on scale
  • Powerful motor guarantees optimal cutting capacity even at continuous operation

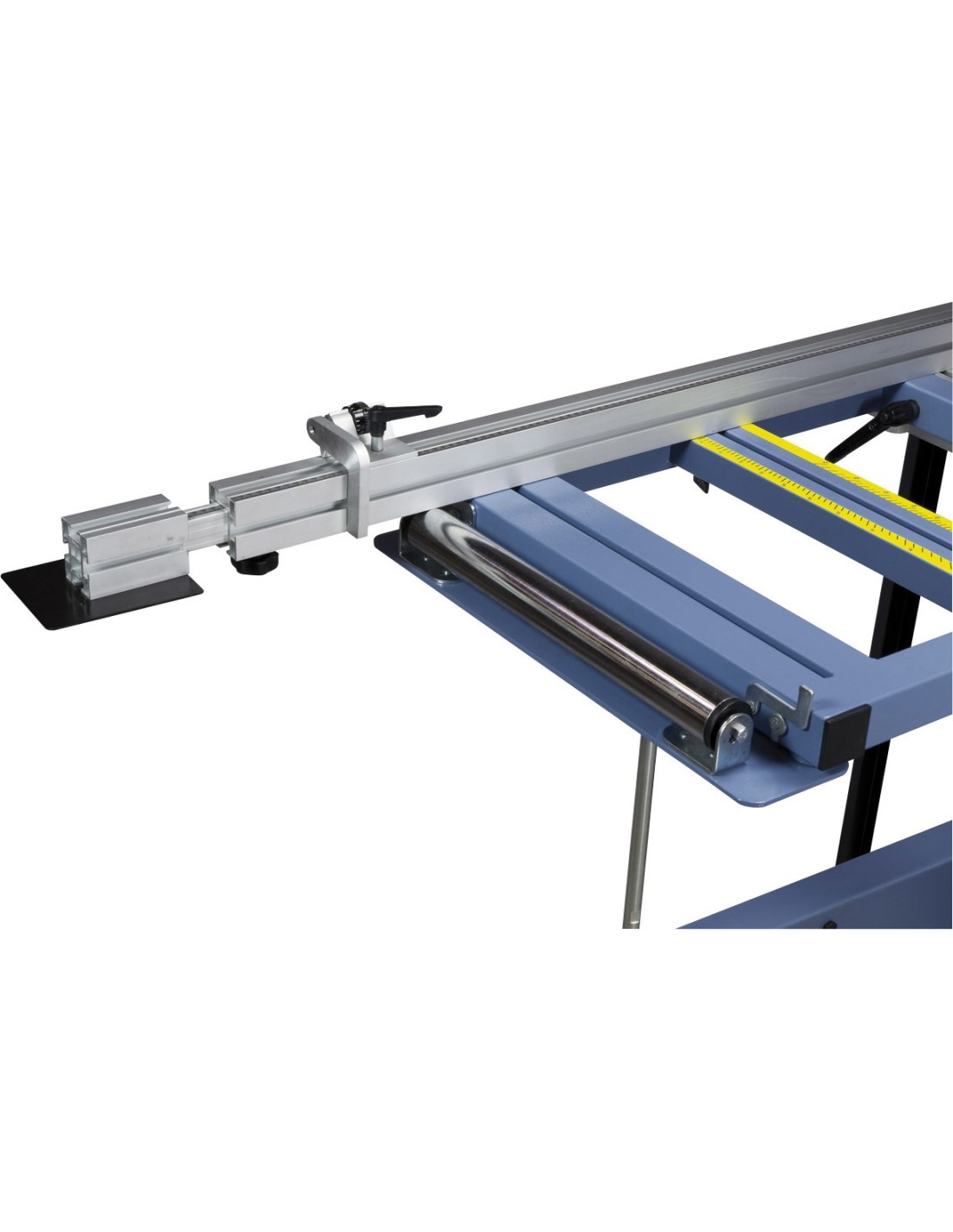

  • Square table with roller for convenient handling of larger workpieces
  • Extractable telescopic fence (up to 2260 mm), mountable at front or rear of square table

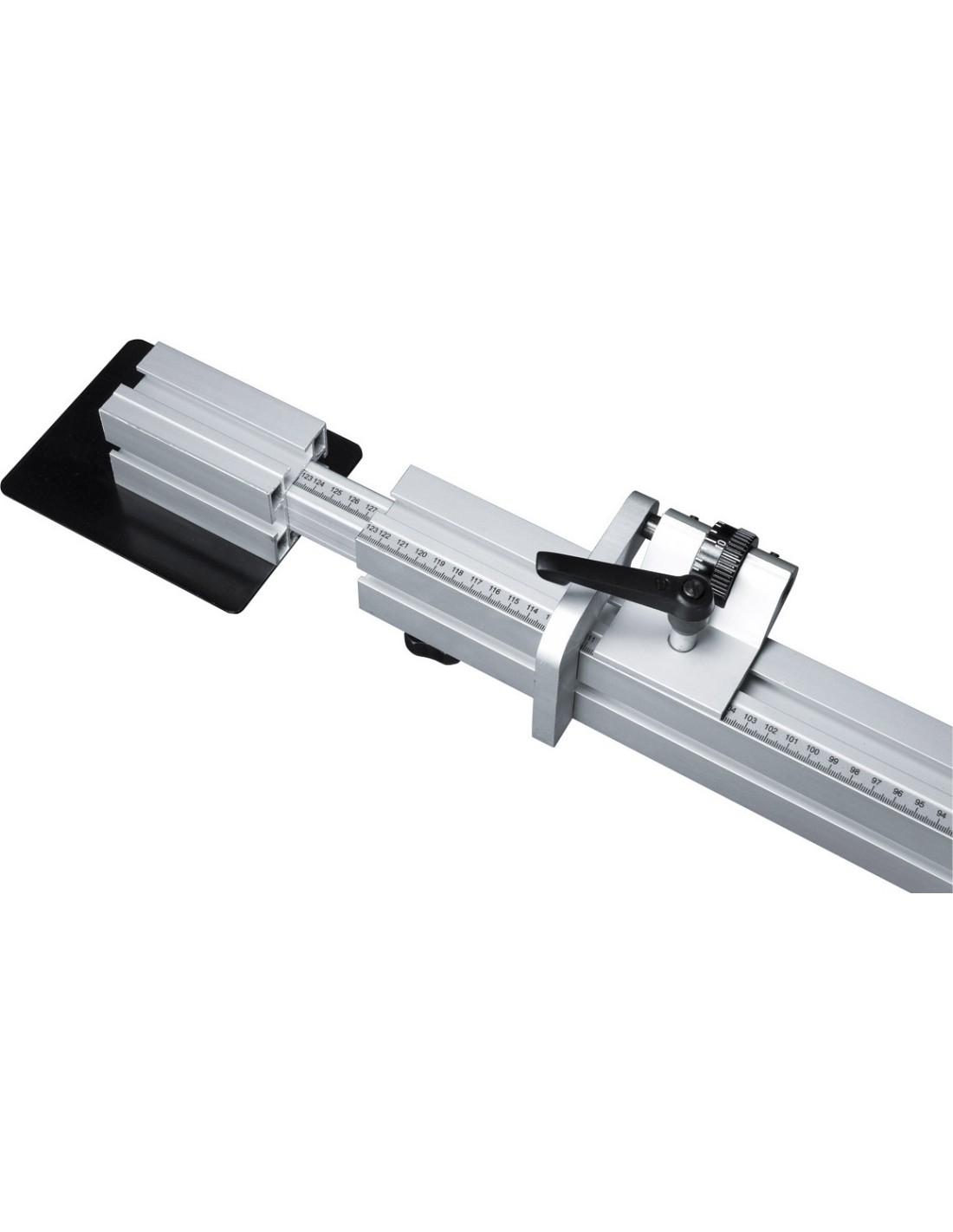

  • Telescopic-longitudinal fence comes complete with end stop feat. fi ne adjustment
  • All aluminium parts (sliding table, fences,...) are anodized
  • LED speed display guarantees easy read-out
  • Aluminium sliding table features hardened guide rails

Standard accessories

  • Carbide sawblade 315 x 3,0 x 30 mm / 40T
  • Scoring sawblade 2-100 x 20 mm / 24T

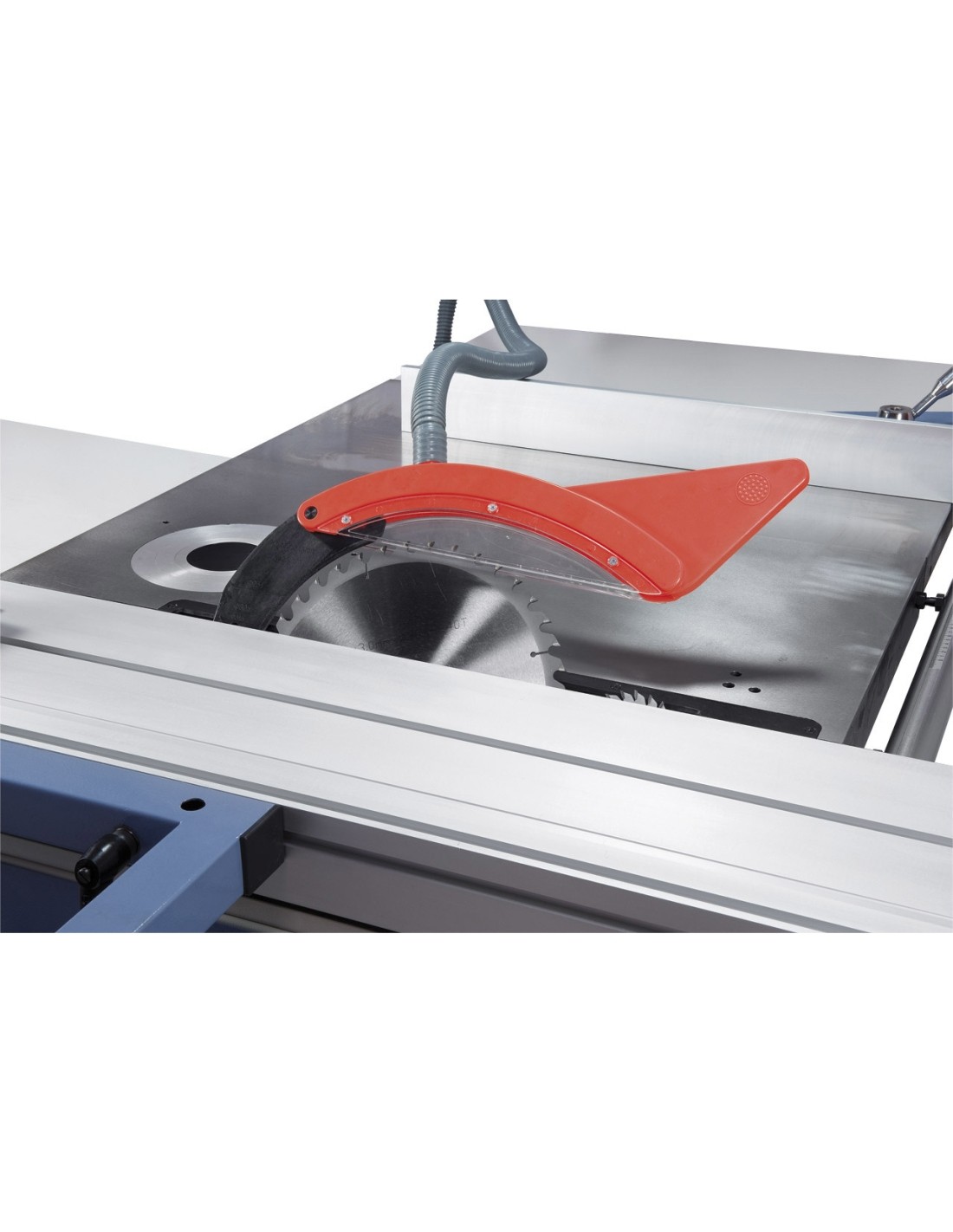

  • Protective cover with dust extraction outlet and tube

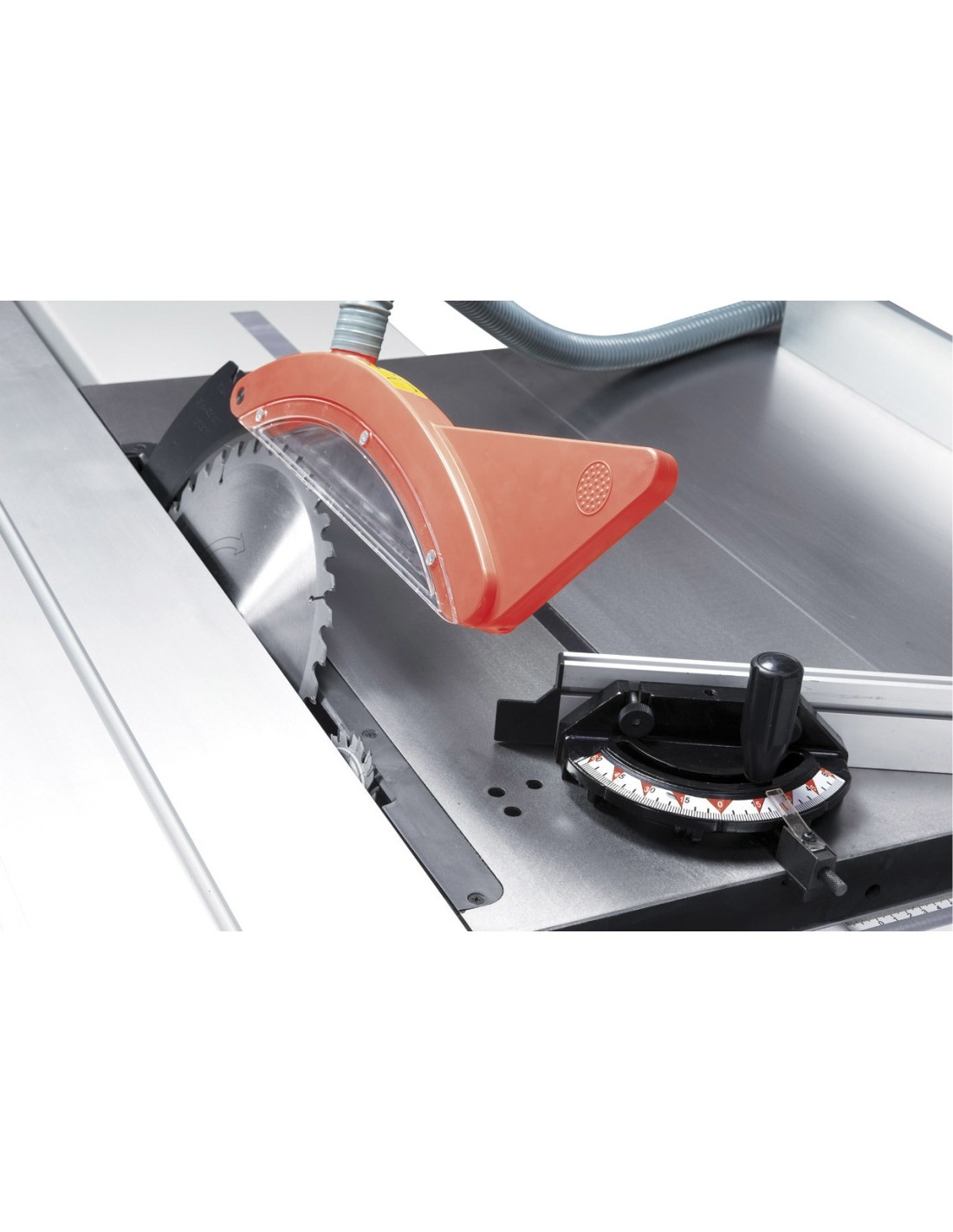

  • Mitre fence with eccentric holder
  • End stop
  • Table extension and enlargement
  • Extractable telescopic fence
  • Stop with fine adjustment
  • Square table with roller
  • Moulding fence
  • Sanding sleeve diam. 75 mm
  • Protective and pressing device
  • Spindle with left and right turning
  • LED speed indication
  • Push stick
  • Tools
